60V 45Ah LiFePO4 Battery – 3000+ Cycles for Electric Tricycle, Lightweight & Long Range

Price Negotiable
Price: Negotiable
MOQ: 1-1000 units
Delivery Time: 7-15 working days
Brand: CLF
Product Description

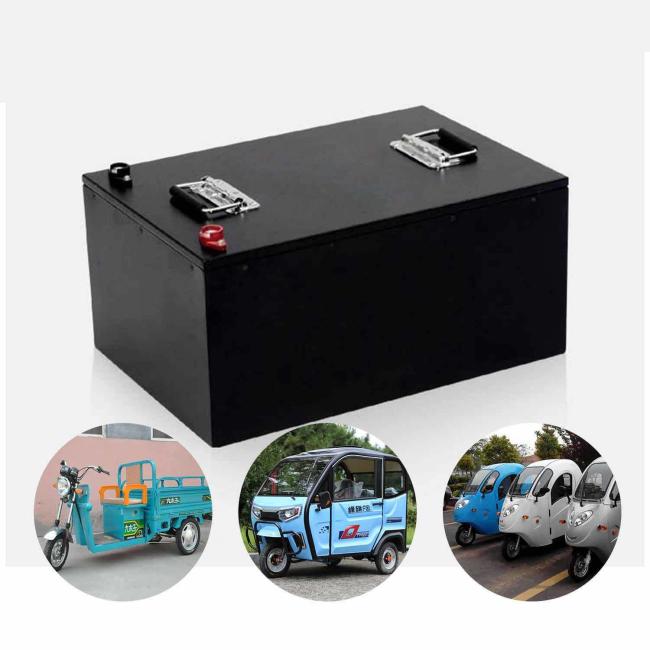

This 60V 45Ah LiFePO4 battery is specifically designed for electric tricycles, light cargo trikes, family commuters, and low-speed electric vehicles. With approximately 2.7-2.8kWh energy storage, it delivers 60-80 km real-world range per charge and supports 800-1500W motors. The built-in smart BMS ensures safety and longevity—3,000-4,000+ cycles with 5-8 years of service life. Weighing about 60% less than lead-acid batteries of equivalent capacity, it's the best choice for budget-conscious tricycle upgrades.

Key Selling Points
  1. Economical & Practical Range – 45Ah capacity delivers 60-80 km real-world range (with 1000W motor under load), perfect for daily commuting, light cargo, and rural use without frequent recharging.
  2. Strong Power Output – 60V platform with 67.5-200A peak current, supports 800-1500W motors, superior climbing and load capacity compared to 48V systems.
  3. 3,000-4,000+ Ultra-Long Cycle Life – LiFePO4 cells last 3-5+ times longer than lead-acid, significantly reducing long-term ownership costs.
  4. Lightweight & Portable Design – Weighs only ~40% of equivalent lead-acid batteries (~17-18kg), dramatically reducing vehicle weight, improving payload and energy efficiency, and easy for one person to carry and install.
  5. Smart BMS Full Protection – Over-charge, over-discharge, over-current, short-circuit, and over-temperature protection with real-time voltage, current, and temperature monitoring.
  6. Wide Temperature Operation – Discharge from -20℃ to 60℃, charge from 0℃ to 45℃, suitable for various extreme climates.
Technical Specifications
Parameter Value
Battery Chemistry LiFePO₄ (Lithium Iron Phosphate)
Nominal Voltage 60V / 60.8V
Nominal Capacity 45Ah
Total Energy 2.7 – 2.8 kWh (2,736Wh approx.)
Cycle Life (80% DoD) ≥3,000 – 4,000 cycles
Weight 17 – 18.5 kg
Dimensions (L*W*H) 420*240*210 mm (Customizable)
Max. Continuous Discharge Current 30A – 45A
Peak Discharge Current 67.5A – 200A (≤30s)
Max. Charge Current 10A – 22.5A
Charge Cut-off Voltage 71.4V
Discharge Cut-off Voltage 47.5V – 48V
Operating Voltage Range 47.5V – 69.35V
Charge Temperature 0℃ ~ 45℃
Discharge Temperature -20℃ ~ 60℃
Cell Configuration 3P19S / 17S1P
Ingress Protection IP65 – IP67
Communication (Optional) CAN, RS485, Bluetooth, 4G
Certification CE, UN38.3, MSDS, ISO9001, UL (Optional)

Applications
  • Family Commuter Tricycles – Daily commuting, school runs, grocery shopping
  • Light Cargo Tricycles – Small goods transport, last-mile delivery
  • Rural/Township Commuting – Short-distance travel, agricultural supply transport
  • Municipal Sanitation Tricycles – Waste collection, street cleaning
  • Sightseeing / Golf Carts – Low-speed tour vehicles
  • Electric Motorcycles / E-Bikes – Two-wheeler power upgrades

FAQ
  • Q1: Is this 60V 58Ah battery suitable for my electric tricycle?
    A1: Yes, it fits most 60V electric tricycle systems. Please confirm your vehicle voltage before purchase to avoid incompatibility.
  • Q2: What is the cycle life of this battery?
    A2: It can support more than 1500 charge-discharge cycles. Under normal use, it can meet long-term use needs and greatly reduce the replacement frequency.
  • Q3: Does the battery come with BMS protection?
    A3: Yes, built-in smart BMS provides full safety protection against overcharge, over-discharge, over-current and short circuit.
  • Q4: What is the charging time?
    A4: With a standard charger, it takes about 6-8 hours to fully charge; if using a fast charger, the charging time can be appropriately shortened (subject to charger parameters).
  • Q5: Can I customize the size or connector of the battery?
    A5: Yes, we accept customized dimensions, connector types and wiring methods, which can be personalized according to your specific needs.
  • Q6: What is the operating temperature range of the battery?
    A6: It works stably from -20℃ to 60℃, which can work stably under different climate conditions such as cold and hot, suitable for use in different regions.
  • Q7: What is the weight of the battery?
    A7: It is the weight of the standard version. The specific weight can be adjusted according to customized needs. For detailed weight parameters, please contact customer service for consultation.
