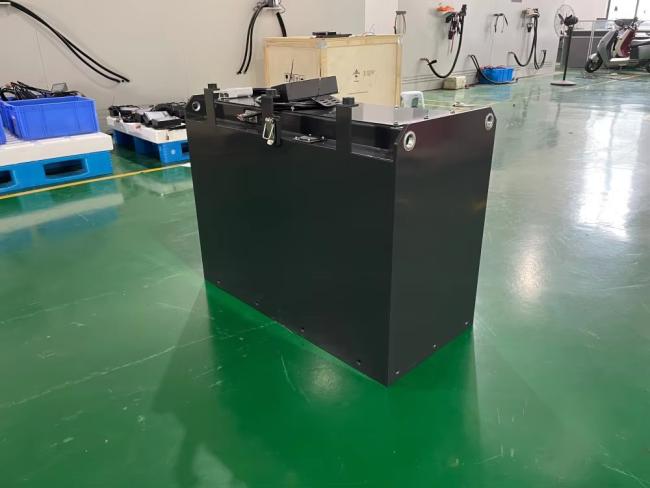

120V 200Ah LiFePO4 Forklift Battery | High Cycle Life Rechargeable Industrial Battery
120V 200Ah LiFePO4 Forklift Battery is a professional energy solution specially designed for electric forklifts, pallet jacks, stackers, and various industrial warehouse handling equipment. Adopting high-quality grade A LiFePO4 cells and integrated smart BMS protection system, it features long cycle life, maintenance-free operation, stable output performance, fast charging, and low self-discharge, which can fully replace traditional lead-acid batteries and help enterprises reduce operation costs while improving work efficiency. OEM/ODM customization services are available to meet different equipment and application needs.
- 120V 200Ah Standard Specification
- LiFePO4 Safe Lithium Battery
- Built-in Smart BMS Protection
- ≥6000 Deep Cycle Times
- Fast Charging & Low Self-discharge
- Directly Replace Lead-acid Battery
- CE/MSDS/UN38.3 Certified
- OEM/ODM Customizable
| Item | Specification |
|---|---|
| Rated Voltage | 120V DC |
| Rated Capacity | 200Ah (0.2C, 25℃) |
| Battery Chemistry | LiFePO4 (Lithium Iron Phosphate) |
| Cycle Life | ≥6000 Cycles @ 80% DOD (Depth of Discharge); ≥8000 Cycles @ 50% DOD |
| Charging Voltage | 136.5V DC (Constant Current & Constant Voltage Charging) |
| Charging Current | 20A-40A (Fast Charging Optional: 60A) |
| Discharge Cut-off Voltage | 102V DC |
| Max Continuous Discharge Current | 200A (300A Peak Discharge for 10s) |
| Built-in BMS | Intelligent Battery Management System, supporting overcharge, overdischarge, overcurrent, short circuit, over-temperature, under-temperature, and balance protection |
| Self-discharge Rate | ≤3% per month (25℃, no load) |
| Operating Temperature Range | Charging: 0℃ ~ 55℃; Discharging: -20℃ ~ 60℃ |
| Storage Temperature Range | -20℃ ~ 45℃ (Recommended: 10℃ ~ 25℃, 50% SOC) |
| Dimension (L×W×H) | 650mm×480mm×280mm (Customizable according to equipment requirements) |
| Net Weight | 85kg (About 40% lighter than lead-acid battery of the same capacity) |
| Connector Type | Anderson Connector / DIN Connector / Custom Connector |
| Waterproof Grade | IP54 (IP65 Optional for harsh environments) |
| Application | Electric Forklift, Counterbalance Forklift, Pallet Truck, Stacker, Warehouse Logistics Handling Equipment, Industrial Backup Power |
| Certifications | CE, MSDS, UN38.3, IEC62133, RoHS |
| Warranty Period | 3 Years (or 3000 Cycles, whichever comes first) |
| Custom Service | OEM/ODM, Logo Customization, Shell Color Customization, Connector Customization, Capacity/Voltage Customization, Communication Protocol Customization (CANbus Optional) |

1. Ultra-Long Cycle Life, Cost-Saving
Adopts 100% grade A LiFePO4 cells with high purity and stable performance, strict screening and aging test. The cycle life reaches more than 6000 times at 80% DOD, which is 3-5 times that of traditional lead-acid batteries (usually 1000-1500 cycles). It can be used for 5-8 years under normal use, greatly reducing the frequency of battery replacement and saving long-term purchase and replacement costs for enterprises.
2.Fast Charging & Stable Discharge, Meet Long-Time Work Needs
Supports fast charging technology, which can be fully charged in 3-5 hours (depending on charging current), while traditional lead-acid batteries usually take 8-12 hours. The battery has stable continuous discharge performance, with a constant output voltage during discharge, ensuring that the forklift maintains stable power during long-time continuous operation (8-12 hours of continuous work per full charge), suitable for high-intensity warehouse logistics operations.
English: Our 120V 200Ah LiFePO4 forklift battery is widely used in various industrial and logistics scenarios, mainly suitable for: 1. Electric forklifts (counterbalance forklifts, reach forklifts, order pickers) in warehouses, factories, and logistics parks; 2. Pallet trucks, stackers, and other material handling equipment for goods loading, unloading, and stacking; 3. Industrial workshops, ports, and terminals for heavy-duty handling operations; 4. Cold storage and low-temperature environments (withstand -20℃ low-temperature discharge); 5. Industrial backup power supply for factories, warehouses, and other places (emergency power supply when the main power is cut off).

- Q1: Can you support OEM and ODM customization?A1: Yes, we fully support OEM and ODM customization. We can customize the size, capacity, voltage, interface, communication protocol, logo and shell according to your specific requirements.
- Q2: Is this battery compatible with my original forklift charger?A2: It can match most original forklift chargers. If there is a compatibility problem, we can adjust the battery's charging parameters or provide a matching charger according to your original charger model.
- Q3: What is the warranty period of the battery?A3: We provide 3 years warranty or 4000 cycles quality guarantee (whichever comes first). During the warranty period, we provide free replacement and maintenance services for non-human damage.
- Q4: Can the battery be used in low temperature environment?A4: Yes, the working temperature of the battery is -20℃~60℃, which can be used normally in general low temperature environments such as warehouses and outdoor yards in winter.
- Q5: Do I need to maintain the battery regularly?A5: No, this lithium battery is completely maintenance-free. You don't need to add water, add acid or do other regular maintenance, which can save a lot of labor and time costs.
