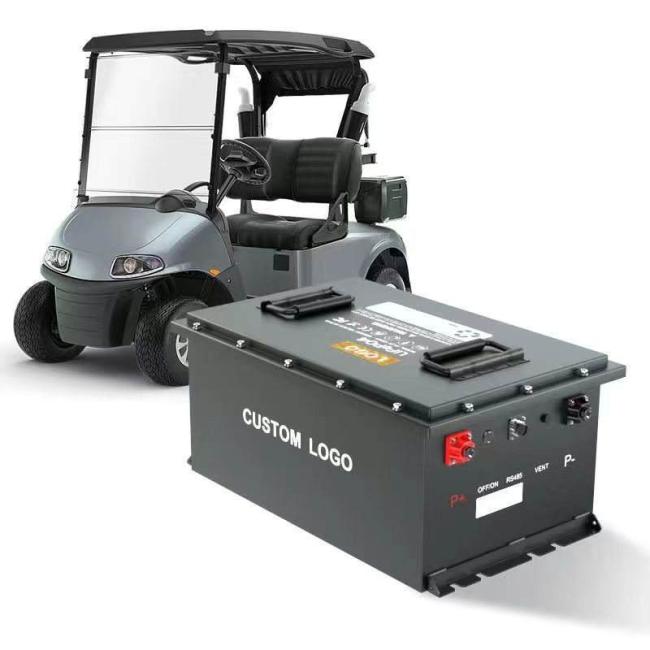

48V 190Ah Long Endurance Golf Cart LiFePO4 Battery | High Load Resistant Commercial Lithium Battery

Price Negotiable
Price: Negotiable
MOQ: 10 units
Delivery Time: 7-15 working days
Brand: CLF/OEM
Product Description
Product Overview

English: The 48V 190Ah LiFePO4 golf cart battery is a high-capacity enhanced version for heavy-duty and long-endurance demands. Based on the mature 48V mainstream voltage platform, it upgrades the cell capacity and discharge performance, providing ultra-long single-charge mileage and strong stable power. It is specially designed for high-load, long-hour continuous operation scenarios such as high-end golf courses, large resort fleets, and hilly terrain venues. With high-energy-density cells and enhanced heat dissipation structure, it maintains stable performance under high-load discharge and high-temperature environment. The intelligent multi-protection BMS system and 5-year warranty ensure reliable long-term commercial operation.

Core Advantages
  • Ultra-Long Endurance & High Capacity: 190Ah super large capacity provides 30% longer endurance than standard 150Ah batteries, supporting all-day uninterrupted high-intensity operation.
  • High-Load Stable Discharge: Optimized cell combination and discharge circuit, stable power output under heavy load and hilly climbing conditions, no voltage drop.
  • Enhanced Heat Dissipation & High-Temp Resistance: Upgraded overall heat dissipation structure, effectively reducing operating temperature and adapting to high-temperature outdoor environments in summer.
  • High-Efficiency Cycle Performance: Over 5500 deep cycles at 80% DOD, maintaining high capacity retention rate after long-term high-intensity use.
  • Commercial-Grade Safety Performance: Multi-layer safety protection design, anti-vibration shell structure, adapting to complex road conditions and long-term commercial operation.
  • Full Compatibility & Plug and Play: Standard 48V interface, compatible with all mainstream 48V golf cart models, no modification required.

Technical Specifications
ItemParameter
Battery TypeLiFePO4 Lithium Iron Phosphate Battery
Nominal Voltage51.2V (48V System)
Nominal Capacity190Ah
Rated Energy9728Wh
Continuous Discharge Current150A
Peak Discharge Current220A (3s)
Cycle Life≥5500 Cycles @ 80% DOD
Waterproof GradeIP54
Operating TemperatureCharge: 0℃~45℃; Discharge: -20℃~60℃
Dimension (L*W*H)580*310*245mm
Net Weight68kg

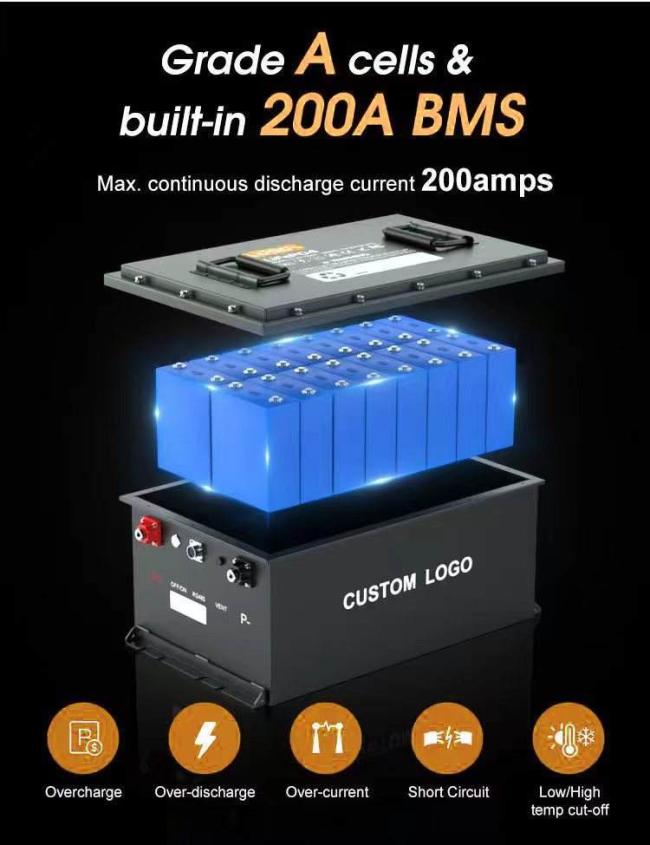

Built-in BMSYes (High-Load & Temp Control)
Warranty5 Years
CertificationsCE, FCC, UN38.3, MSDS, IEC62619
Compatible Models

English: Compatible with all 48V high-power golf cart models, including upgraded EZGO RXV, Club Car Precedent high-power version, Yamaha Drive2 off-road golf carts, as well as modified golf carts, hilly terrain venue vehicles and heavy-load sightseeing carts.

Application Scenarios

English: Suitable for high-end golf club full-day service fleets, large scenic spot long-distance sightseeing vehicles, hilly terrain golf courses, farm heavy-duty transport carts, and commercial equipment requiring long-time high-load continuous operation.

FAQ
Q1: What is the main advantage of 48V 190Ah compared with 150Ah model?
A1: The 190Ah model has larger capacity and higher load capacity. It is suitable for long-hour continuous operation and hilly terrain driving, with longer single-charge range and stronger high-load stability.
Q2: Can this battery support long-distance climbing driving?
A2: Yes. With optimized high-load discharge performance, it can maintain stable power output during long-distance climbing, without power attenuation or stalling.
Q3: Is the battery suitable for high-intensity commercial operation?
A3: Absolutely. It adopts commercial-grade cell and heat dissipation design, with 5500+ long cycle life, fully adapting to high-frequency and high-intensity daily commercial operation.
Q4: Does the large capacity affect charging speed?
A4: It supports matching high-power fast chargers. Although the capacity is larger, the charging efficiency is significantly improved, which can meet daily rapid turnover demands.
Q5: Is the battery shell resistant to vibration and collision?
A5: The shell adopts enhanced anti-vibration and anti-collision structure, which can cope with bumpy road conditions and frequent vehicle start-stop during long-term use.
