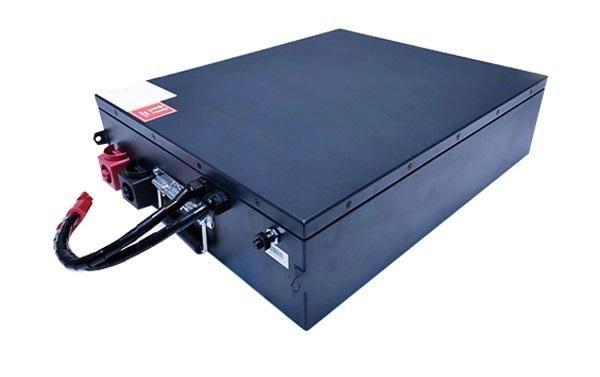

72V 50Ah 100AH LiFePO4 High Speed Ebike Scooter Motorcycle Battery Pack lithium Ion Battery
Price:
Negotiable
MOQ:
10 units
Delivery Time:
7-15 working days
Brand:
CLF
Product Description
72 Volt Lifepo4 Battery Pack 72V 50Ah 100AH Electric Bicycle Lithium Ion Battery Ebike Scooter Motorcycle Battery Pack
| 72V 60Ah lithium NMC battery pack | ||
| Mechanical | Cell & Method | NMC, 20S2P |
| Dimension(L*W*H) | L420mm*W176mm*H289mm | |
| Weight | 25KG | |
| Electrical Characteristics | Rated Capacity | 60Ah |
| Min Capacity | 60Ah | |
| High Rate Discharge Capacity | ＞ 90% Rated Capacity | |
| Discharge Capacity @ -20℃(-4℉) | ＞ 70% Rated Capacity | |
| Norminal Voltage | 72V | |
| Energy | 4320Wh | |
| Internal Impedance(@ 1000Hz.) | ≤20 mΩ | |
| Cycle Life | ＞2000 Cycles @ 1C 85% DOD | |
| Months Self Discharge | ≤ 5% @ 25℃(77℉) | |
| Efficiency of Charge | 100% @ 1/3C | |
| Efficiency of Disharge | 95% @1C | |
| Standard Charge | Max Charge Voltage | 84V |
| Charge Current | 0.5C, 30A | |
| Max Charge Current | 60A | |
| Standard Discharge | Standard discharge Current | 1C, 60A |
| Max Discharge Current | 120A for 3 seconds | |
| Discharge Cut-off Voltage | 60V | |
| Environmental | Charge Temperature | 0 ℃ to 45℃(32℉ to 113℉) @ 65±20%Relative Humidity |
| Discharge Temperature | -20℃ to 60℃(-4℉ to 140℉) @ 65±20%Relative Humidity | |
| Storage Temperature | ≤ 1 Month, -20℃ to 60℃(-4℉ to 140℉) @ 65±20%Relative Humidity | |
|
≤ 6 Month, -20℃ to 30℃(-4℉ to 80℉) @ 65±20%Relative Humidity |
||
Features:
1. Use A grade power lithium ion cells.
2. Built-in smart battery management system.
3. Automatic cell balancing.
4. Deep discharge up to 100%.
5. Very low self-discharge (≤3% per month); 6. NoLead, no heavy metal, no toxic element; 7. Widely applied for electric wheelchairs, bicycles, tricycles, scooters and golf trolleys.
6, It is an ideal small green power supply
7, It does not contain toxic substances to pollute the environment, such as lead, cadmium, etc
