For the soap production, normally it has two steps, first step is to use all kinds of vegetable oil & animal fats and caustic soda (NaOH)as material to produce the semi product soap noodles and the second process is to use thus soap noodles as material to produce out end bar soaps.

In these two production lines, we have our own unique design and patented technology, especially the production line starting from oil saponification. Using vacuum drying and continuous molding processes, we can produce various specifications of semi-finished soap noodle and soap products with a fatty acid content of 45% to 80%.

 Laundry Soap Finishing Line from raw material (all oils +NaOH)

Oil de-coloring & refining→ Saponification (no waste-water discharge)→Vacuum drying &Pelletizing (produce out soap noodles)→Mixer agitator mixing→ three roll mill grinding→ vacuum plodder extruding→printing& cutting machine →packing machine

Simple Laundry  Soap Printing & Cutting Machine (no-motor model)

Function

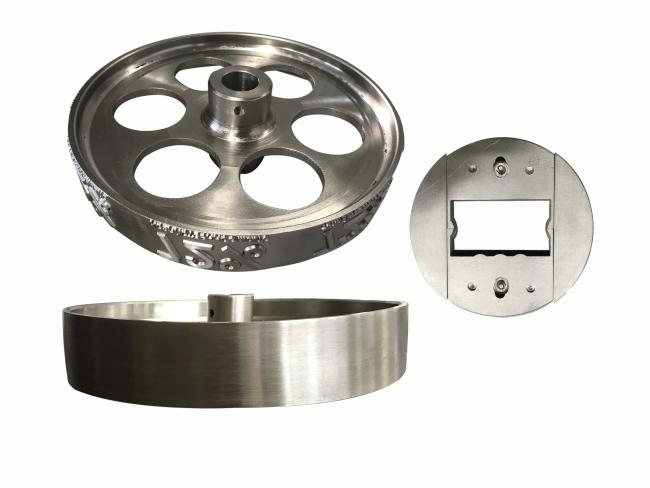

This machine adopt a simple but professional mechanical design. The logo wheel would be driven by the continuous extruding soap bar and print the logos onto the soap surface, and then the cutting wheel would cut the long bar into end soaps with required size and weight.

Characteristics

The mechanical design gives the machine many advantages, such as no energy consumption, stable performance, easy maintenance and long life-span;

The distance between the two pieces of printing wheel is adjustable, which ensures the logo would be printed clear and exquisite no matter the soap thickness is bigger or smaller.

About Us
Company Profile

Jinan Zhonghui Machinery Manufacture Co.,Ltd is founded in 2009 our headquarters is located in Jinan, and our production plant is located in Yucheng,Dezhou National Hi-Tech Industrial Development Zone. We are a professional factory focus on the technique design, manufacture and technical service of laundry soap,toilet soap,oil hydrolysis and fatty acid distillation equipment.

Our company has passed the ISO9001 Quality System Certification. We have finished the registration of “ZHONGHUI” brand as our trademark;
We have got several patents for our soap machine design and fabrication function.

Our product is designed by the engineers with above 35 years practical machine operation experience,we can provide one-stop sulotion and turn-key project for our customers,starting from the design of production process, production formula &consumption control, machine fabrication and warehouse layout based on each customer’s particular requirements. We would be responsible to supply the machine, guide the installation, make the test running and operation training, till the customer’s own staff can operate the production line well and produce out qualified end soaps.

Our products has alrealy been exported to more than 50 countries and regions all over the world.Our customer group is getting bigger and bigger, many new customer comes to us by the old customers’ introduction or heard about the project we have built.

Now besides the soap machine, we can also supply the related machine & equipment and the production consumption materials, such as steam boiler, generator, soap packing machine and soap noodles, soap packing material, caustic soda, perfume, colorant, calcium powder, AES, EDTA, etc.

Welcome to visit our factory on site,we will provide you with excellent-quality equipments and reasonable prices, comprehensive professional and effective technical support & after-sales service, and give your journey to the Chinese factory a pleasant experience!

Wish we can get the chance to cooperate with you and develop together!
