As a daily chemical product, soap is popular in every family. Soap is made from natural materials, comparing with synthetic detergent, it is no harm to person and environment. Soap is made from plant oil (or animal fat, or fatty acid) and caustic soda. The oil might be palm oil, coconut oil, palm kernel oil, tallow, cottenseed oil, etc. We offer the complete laundry soap line to customers who produce soaps starting from oil.
Palm oil saponification tank for soap noodles making
Price:
$236,000.00/Sets >=1 Sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
Zhonghui
Product Description

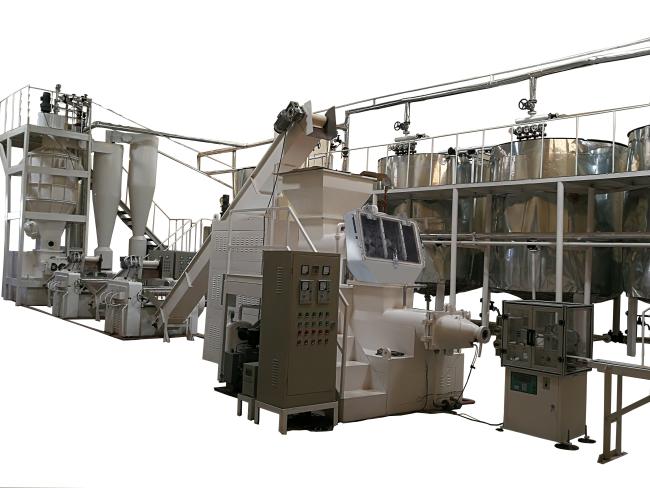

Complete soap production line
Product Description
This line is a soap complete line start from oil and caustic soda saponifying,vacuum drying to finishing line, its production process as following:
1. Melt & mix all kinds of oil.
2.Oils & caustic soda do saponifying
3.Vacuum drying & Extruding soap noodles
4.Finishing line: Mixonh-->>Grinding-->>Vacuum extrudeding-->>Stamping/Cutting to end bar soap.
For the soap industry there have 2 steps as following:
Semi-product: soap noodles
Use all vegetanles oil or animal fat and caustic soda as material to produce semi-produce soap nooles
End bar soap: laundry soap
Use this semi-produce soap noodle to produce end bar soap. it can be laundry bar soap,toilet bar soap.
Details Images
Saponification & Neutralization Cauldron
Saponification between oil and caustic soda.
Neutrlization between factty acid and caustic soda.
Adopt undrained saponification,short reaction time,simple operation and less consumption of steam and water.
1.Material: stainless steel 304
2.Size: 1500,1800,2000
3.Structral features: built-in strring device.
4.Power: frequency conversion motor.
1 ton ~ 2 ton per hour 3 tans
2 ton ~4 tons per hour 4-5 tanks
Model | Capacity(kg/h) | Roll Diameter(mm) | Roll Speed(r/min) | Power(kw) |
XSD-1000 | 1000-2000 | 1200 | 13 | 3.0 |
XSD-2000 | 2000-4000 | 1500 | 13 | 5.5 |
Model | Capacity(kg/h) | Screw Diamete(mm) | Power(kw) | Dimension(mm) | Weight(kg) |
XSP-1000 | 1000-1500 | Φ230 | 18.5 | 3200﹡1200﹡1500 | 2400 |
XSP-2000 | 1500-2500 | Φ250 | 30 | 3400﹡1200﹡1500 | 2700 |
XSP-3000 | 2500-3000 | Φ300 | 37 | 3600﹡1200﹡1600 | 3000 |
Mix soap noodle and other additives sufficiently.Adopt famous brand geared motor made in China
It's used to mix soap noodle and other additives sufficiently,make the soap structure tight and improve soap's density and quality.
Soap electronic cutting machine is used to cut soaps into cakes and stamp pattern on the soap surface.
Our old design vacuum plodder
From 2006~ 2012 the first plodder, we are learning and developing all the time ,the product ungrade every year.

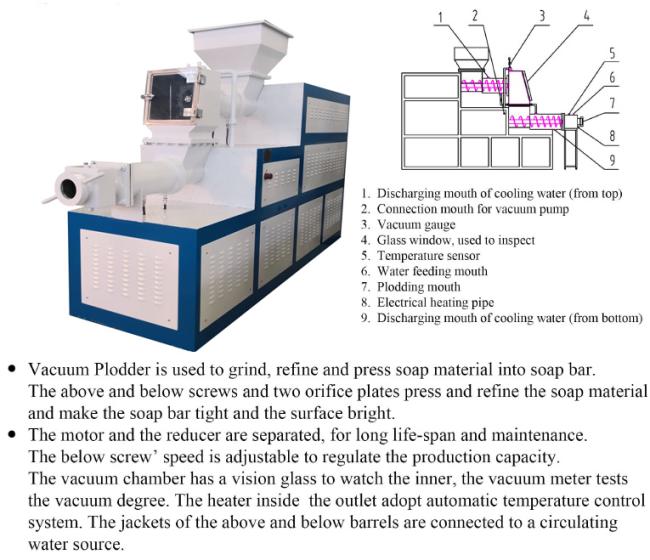

Our new design(update) vacuum plodder
Till 204 the new design was founed but there also ned some inner configuration are ungrade till 2019.
