Hot sale 800-1000 kg per hour laundry bar soap making machine finishing line

Price Negotiable

Price: $62,000.00/Sets >=1 Sets

MOQ: Negotiable

Delivery Time: Negotiable

Brand: Zhonghui

Product Description

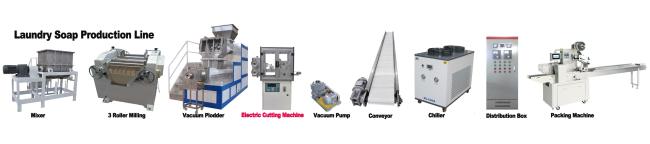

Laundry Soap Production Line

This line is used to produce laundry soap bar with factty acid content from 40% to 80%.

Material: soap noodle

Capacity: 800-1000 kg/hr

The dimension and pattern of the soap is designed by customer's demands.

Our product lines have many advantages including less area, less energy consumption, less requirement of human resource, highly automatic, good-quality end products and stable function.

Details Images

Soap Noodle Mixer Agitator

Features of mixer:

Mix the soap noodle with other additive agents thoroughly and evenly.

Mixing agitator is used to mix soap noodle and other additives sufficiently. Adopt famous brand geared motor made in China, long
life-span.

1.Model: XSM-500

2.Material:carbon steel

3.Capacity: 100kg/batch

4.Mixing time:5-10 minutes

5.Blender:half-spiral

6.Power:5.5Kw

7.Speed:32 r.p.m.

Three Roller Grinder

Features of three-roller grinder:

Used to press and grind the soap materials, increase its density and quality, improve the
transparency and smoothness of end soaps.

Mix soap noodle and other additives sufficiently again.

1.Type: S260

2.Roll diameter: 260mm

3.Roll length: 780 mm

4.Motor power: 11Kw

5.Roll speed:1:3:9

Soap double layer simplex screw vacuum plodder

Vacuum Plodder is used to grind, refine and press soap material into soap bar.
The above and below screws and two orifice plates press and refine the soap material and make the soap bar tight and the surface bright.

1.Type: XS-500

2.Capacity: 300-500 kg/hr

3.Diameter of screw: 200 mm

4.Speed: top-15

bottom-8-16

5.Power: top-5.5Kw

bottom-7.5Kw

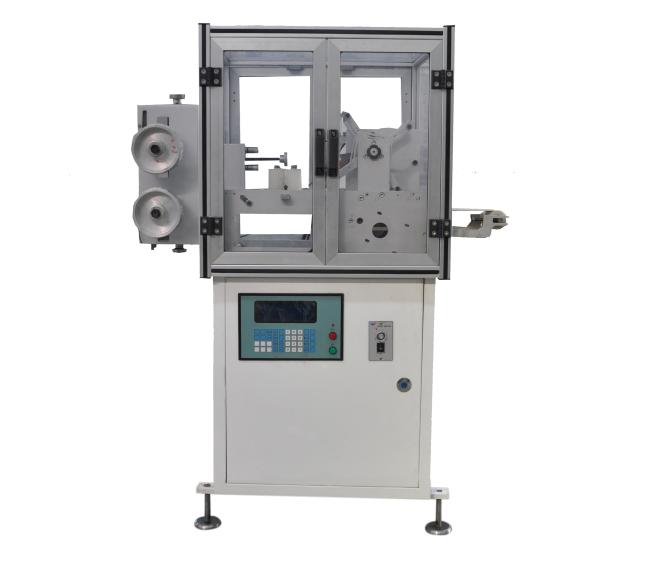

Soap Cutter

Soap electronic cutting machine is used to cut soaps into cakes and stamp patterns on the soap. Adopt Yaskawa servo motor and converter, voltage stabilizer and precision purified AC voltage stabilizer, to protect motor and electrical components and to keep high accuracy.

1.Size and Weight: Adjusted by customer’s requirements;

2.Power: 0.85+0.12kW, 380 V, 50 HZ;

3.Capacity: In step of vacuum plodder;

4.Mould: 1 set.
