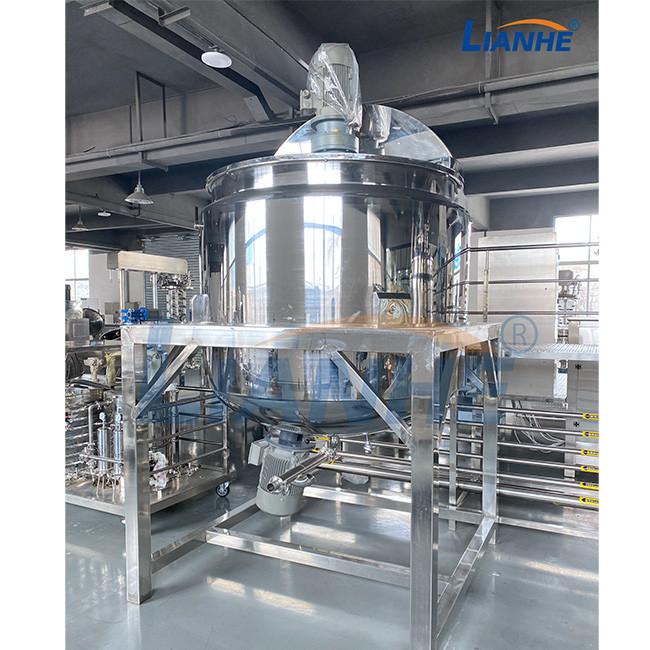

Customized 500L 1000L High Shear Emulsifier Mixer Reactor Industrial Mixing Tank For Liquid
Customized 500L 1000L High Shear Emulsifier Mixer Reactor Industrial Mixing Tank
Brief Introduction:
Manufacturer of Cosmetic | Pharmacuetical | Food | Daily Chemical industrial | GMP Standard
This mixing machine can be customized from 50-6000L, has optional mixing, homogenizer, dispenser and heating functions. It's an ideal choice for daily chemicals, cosmetic, cream, pharmacy, etc.
Technical Parameter:
| Capacity (L) | Homogenizer | Agitator | Vacuum pump | Heating system | ||||
| power (kw) | speed (rpm) | power (kw) | speed (rpm) | power (kw) | Limit vacuum | Electric heating (kw) | Steam heating (Mpa) | |
| 5 | 0.55 | 0-3600 | 0.4 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 10 | 1.1 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 20 | 1.5 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 9 | 0.2 |
| 50 | 3 | 0-3600 | 0.75 | 0-65 | 0.75 | -0.1 | 12 | 0.2 |
| 100 | 4 | 0-3600 | 1.5 | 0-65 | 1.5 | -0.1 | 24 | 0.2 |
| 200 | 5.5 | 0-3600 | 1.5 | 0-65 | 2.2 | -0.1 | 28 | 0.2 |
| 300 | 7.5 | 0-3600 | 3 | 0-65 | 2.2 | -0.1 | 32 | 0.2 |
| 500 | 11 | 0-3600 | 4 | 0-65 | 4 | -0.1 | 50 | 0.2 |
| 1000 | 15 | 0-3600 | 5.5 | 0-65 | 4 | -0.1 | 54 | 0.2 |
| 2000 | 18.5 | 0-3600 | 7.5 | 0-65 | 5.5 | -0.1 | recommend steam heating | 0.2 |
| 5000 | 22.5 | 0-3600 | 15 | 0-65 | 7.5 | -0.1 | 0.2 | |
| The parameters are for reference only, all the machines can be customized according to your needs. | ||||||||
Advantages:
1. The material of contacted part is SUS316L stainless steel, inside and outside of the equipment are with mirror polishing and get to GMP standard.
2. All pipelines and parameter are controlled automaticlly. And the electric appliance which are imported from foreign country,like Siemens ,Schneider and so on.
3. Emulsifying tank is with CIP cleaning system,it make the cleaning to be easy and effective.
4. Emulsifying tank adopts tertiary agitating system, and during the emulsification ,the whole processing is under a vacuum environment, so it not only can eliminate spume which created in the emulsification processing ,but also can avoid the unnecessary pollution.
5. The homogenizer adopts the most advanced technology,it can get a ideal emulsifying effect.The speed of high emulsification is 0-3600r/min, and the speed of low mixing is 0-63r/min.
Optional Configuration:
*Material of the tank: SS304, SS316, SS316L.
*The homogenize can be installed at the top or bottom of the tank.
*The type of the agitator(stirrer) can be adjusted.
*Basic structure: Tank body, motor, mixing stireer(agitator), manhole, support legs.
*Optional function: Sight glass, heating and cooling jacket, thermometer, etc.
*Tank supported:Movable caster, working platform, support leg optional.
Application Product:
1. Daily Chemical & Cosmetics Industry (such as baby cream, skin cream face cream, shaving cream, shaving cream, cream shampoo, toothpaste, cold cream, sunscreen cream,face cleanser, moisture cream, detergent, shampoo etc)
2. Food Industry (Sauce, cheese, oral, nutrition, infant food, chocolate, sugar and so on., tomato paste etc)
3. Pharmacy Industry (Latex, emulsions, salves, ointments, oral syrup, liquid. etc)
4. Chemical Industry (Latex, sauce, saponification products, paints, coatings, resins, adhesives, lubricants and the like)
