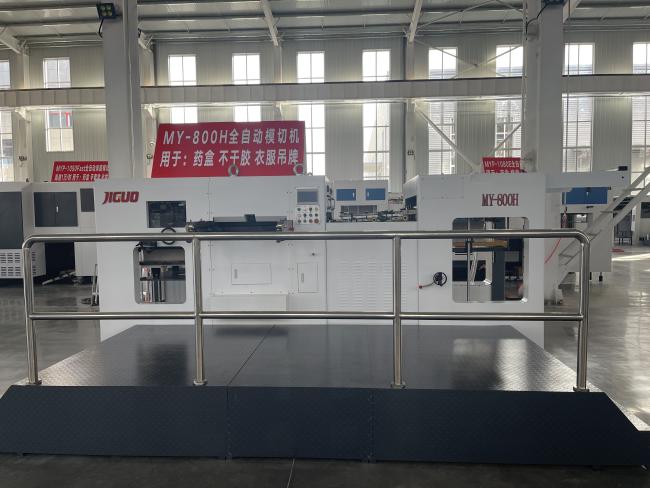

JIGUO MY-800H Automatic Die Cutting Creasing Machine 810x610mm 8500 Sheets Per Hour High Precision Hangtag Cutter
Price:
$61500-$69500
MOQ:
1
Delivery Time:
30
Brand:
JIGUO
Product Description
JIGUO JIGUO MY-800H Automatic Die Cutting & Creasing Machine
Hangtag die cutting machine,Post press carton die cutter,High precision die cutting machine
Many packaging & printing factories struggle with rough cutting edges, inaccurate positioning, low efficiency and frequent breakdowns during hangtag, label and carton die cutting.
JIGUO MY-800H automatic die cutting creasing machine solves these points perfectly. With ±0.1mm ultra cutting accuracy, max speed up to 8500 sheets per hour and 250T stable pressing force, it delivers clean, burr-free finished products. Equipped with mature PLC control system, easy operation and long service life, it is the ideal post-press equipment for medium & large printing plants and global machinery distributors.
Technical Specifications
| Model | MY-800H |
|---|---|
| Max. Paper Size | 810*610mm |
| Min. Paper Size | 320*240mm |
| Max. Cutting Size | 780*590mm |
| Max. Die Cutting Speed | 8500 sheets/hour |
| Sheet Thickness | Corrugated board: ≤4mm Cardboard: 0.1-1.5mm |
| Die-cutting Accuracy | ±0.1mm |
| Total Power | 14.5 Kw |
| Net Weight | 9.5 Tons |
| Overall Dimensions | 5600*3400*2000 mm |
Machine Components & Features
Paper Feeding Unit
- Auto paper feed & transport structure ensures smooth, stable sheet delivery
- Compatible with multiple materials & different thicknesses, anti-jam & anti-offset
- Air nozzle + blower combined design avoids double sheet sticking
Paper Conveying Unit
- High-precision positioning with detection sensors
- Wide material compatibility including cardboard and PVC
- Fully automated PLC-controlled operation
- Stable feeding with adjustable speed and hold-down mechanism
Die-cutting Unit
-
Ultra High Cutting Precision ±0.1mm
Front & side dual positioning structure, umbrella gear fine adjustment, consistent die cutting size, no offset for high-end hangtags & gift boxes. -
High Production Efficiency 8500 Sheets/Hour
Optimized intermittent feeding mechanism, stable high-speed running, greatly improve workshop output & profit margin. -
250T Strong Die Cutting Pressure
Thick cardboard, coated paper, thin corrugated board all available, wide material compatibility. -
Intelligent PLC Touch Screen Control
Electronic CAM program control, parameter one-key setting, fault self-alarm, lower operation threshold for workers. -
Quick Die Plate Replacement Design
Dual locking die-cut frame structure, faster mold change, less downtime for multi-order flexible production
Delivery Unit
- Equipped with non-stop feeding structure to support uninterrupted long-run production
- Vacuum suction & paper flattening assemblies guarantee ultra-precise paper positioning during transportation
- Freely adjustable setting range to accommodate paper blanks of multiple dimensions
- Adopts Germany-sourced conveyor belts, delivering reliable performance under high-speed running conditions
Automatic Lubrication System
- Adopts timed quantitative automatic lubrication to maintain the machine at ideal operating status
- Equipped with enclosed forced oil spraying system fitted with built-in filtering structure
- Cuts routine maintenance workload and effectively prolongs total service life of the whole unit
- Greatly upgrades overall running smoothness and operational stability of the equipment
Product Gallery
Our Partners
Production Facility
Frequently Asked Questions
Is this machine mainly for hangtag production?
Yes, it works perfectly for hangtags, also compatible with cartons, stickers and various paper die cutting & creasing work.
Can you send samples for quality check?
We can cut test samples with your paper materials before order confirmation.
Do you support distributor exclusive territory policy?
Yes, we offer favorable distributor price & regional protection for global agents.
What services can we provide?
We offer a 12-month warranty and long-term technical support with prompt solutions.
Do we provide engineers for installation and training?
Yes, we can arrange for engineers to visit your facility if needed.
How can I get to your company?
We're near Beijing Capital International Airport and Tangshan Station, with transportation available upon request.
Payment & Terms
Accepted Terms: FOB, CFR, CIF, EXW
Accepted Payment Currencies: USD, RMB, EUR
Accepted Payment Methods: T/T, L/C, Cash
