Anti Drop Stainless Steel Cable Net Rope Mesh SGS For High Altitude
Anti-Drop Stainless Steel Wire Rope Mesh Netting For High Altitude/Stainless Steel Rope Mesh
Anti-Drop Stainless Steel Wire Rope Mesh Netting For High Altitude/Stainless Steel Rope Mesh
The wire rope mesh is manufactured in the standard diameters 1.0 mm, 1.5 mm, 1.6mm, 2.0 mm, 3.0 mm and 3.2mm. Mesh width of 25 to 200 mm (or bigger) are possible depending on cable diameter.
Rope Mesh is manufactured from high-grade stainless steel cables of material class 1.4401, AISI316.
Mesh connections (ferrules) are available in highly aesthetic stainless steel for premium applications or where resistance to corrosion is a driving consideration.
| Material | stainless steel ,304,316 grade |
| Rope | stainless steel 7 x 7 and 7 x 19 |
| Rope wire diameter | 1.5mm,2.0mm,3.0mm,4.0mm etc |
| Size | as your requirement |
| Feature | Hand knitting, Light weight, high-strength, rustless, eco-friendly, safety, long service life, Corrosion resisatant, easy -assembly |
Our services range from ferruled wire rope mesh , knotted wire rope mesh to various installation's accessories . Also we can provide black oxide wire rope mesh .
Customized flexible stainless steel cable mesh, wire rope mesh for building facade systems, green wall systems. railing & balustrade systems. safety nets. enclosure for animal in zoo.
|
Hole Size (Opening) |
1.2MM(3/64) (7 x 7 ) |
1.6MM(1/16) (7 x 7 ) |
2.0MM(5/64) (7 x 7 ) |
2.4MM(3/32) (7 x 7 ) |
3.2MM(1/8) (7 x 19 ) |
| 20 x 35mm | JP-1235 | ||||
| 25 x 42mm | JP-1225 | JP-1625 | |||
| 30 x 52mm | JP-1230 | JP-1630 | JP-2030 | ||
| 35 x 60mm | JP-1235 | JP-1635 | JP-2035 | ||
| 38 x 66mm | JP-1238 | JP-1638 | JP-2038 | JP-2438 | |
| 40 x 69mm | JP-1240 | JP-1640 | JP-2040 | JP-2440 | JP-3040 |
| 50 x 86mm | JP-1250 | JP-1650 | JP-2050 | JP-2450 | JP-3050 |
| 60 x 104mm | JP-1260 | JP-1660 | JP-2060 | JP-2460 | JP-3060 |
| 70 x 120mm | JP-1270 | JP-1670 | JP-2070 | JP-2470 | JP-3070 |
| 76 x 131mm | JP-1276 | JP-1676 | JP-2076 | JP-2476 | JP-3076 |
| 80 x 138mm | JP-1280 | JP-1680 | JP-2080 | JP-2480 | JP-3080 |
| 90 x 154mm | JP-1290 | JP-1690 | JP-2090 | JP-2490 | JP-3090 |
| 100 x 173mm | JP-12100 | JP-16100 | JP-20100 | JP-24100 | JP-30100 |
| 120 x 206mm | JP-12120 | JP-16120 | JP-20120 | JP-24120 | JP-30120 |
The application of stainless steel rope mesh
1. Steel Mesh Balustrade - bridge, stair, balcony, path

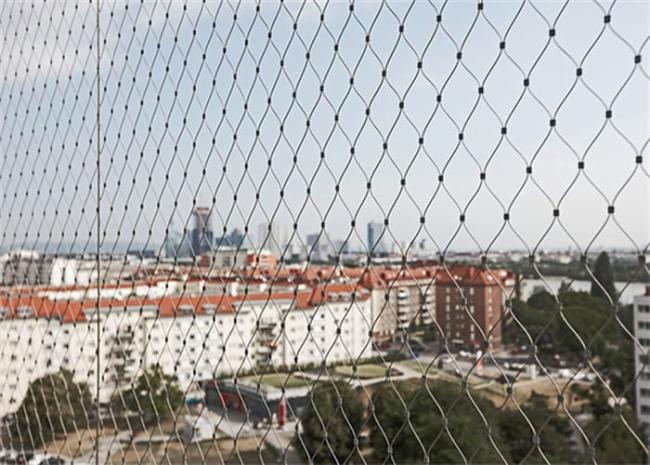

2. Cable Mesh - Excellent Solution to Safety
3. Safety Net - Structural Measure to Prevent Suicide
4. Helipad Safety Net - Modular Heliport Webbing
5. Cable Zoo Mesh - Solution to Enclosing Most Animals
6. Aviary Netting - Lightweight, Durable and Long Lasting
7. Green Facade - Cable System for Most Climbing Plants
In poly bag or plastic cage ,and then in box or cartons as customer required.
