Rhombus Ferruled Railing Wire Mesh Stainless Steel 304 Handrail Safety Netting

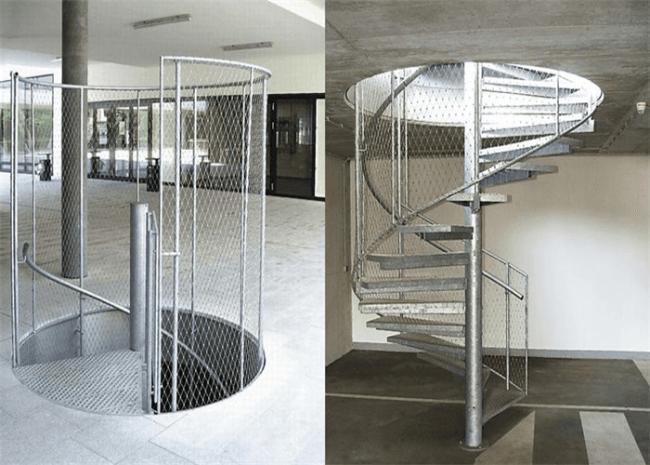

304 Decorative cable mesh Stainless Steel Ferruled Wire Rope Mesh Railing
The specification as follows:
| Flexible Stainless Steel Rope Mesh(Ferrule Type) | |||||
| Item No.s | Cable Diameter | Mesh Opening Size (W×H) |
Normal Break | ||
| inch | mm | inch | mm | ibs. | |
| JP-32120F | 1/8 | 3.2 | 4.75×8.23 | 120×207.8 | 1,600 |
| JP-32102F | 1/8 | 3.2 | 4×6.9 | 102×176.7 | 1,600 |
| JP-3290F | 1/8 | 3.2 | 3.5×6.15 | 90×156 | 1,600 |
| JP-3276F | 1/8 | 3.2 | 3×5.2 | 76×131.6 | 1,600 |
| JP-3251F | 1/8 | 3.2 | 2×3.46 | 51×88.3 | 1,600 |
| JP-24100F | 3/32 | 2.4 | 4×6.9 | 102×176.7 | 920 |
| JP-2490F | 3/32 | 2.4 | 3.55×6.15 | 90×156 | 920 |
| JP-2476F | 3/32 | 2.4 | 3×5.2 | 76×131.6 | 920 |
| JP-2460F | 3/32 | 2.4 | 2.4×4.16 | 60×104 | 920 |
| JP-2451F | 3/32 | 2.4 | 2×3.46 | 51×88.3 | 920 |
| JP-2076F | 5/64 | 2.0 | 3×5.2 | 76×131.6 | 676 |
| JP-2060F | 5/64 | 2.0 | 2.4×4.16 | 60×104 | 676 |
| JP-2051F | 5/64 | 2.0 | 2×3.46 | 51×88.3 | 676 |
| JP-2038F | 5/64 | 2.0 | 1-1/2×2.6 | 38×65.8 | 676 |
| JP-1676F | 1/16 | 1.6 | 1.2×2.08 | 76×131.6 | 480 |
| JP-1651F | 1/16 | 1.6 | 2×3.46 | 51×88.3 | 480 |
| JP-1638F | 1/16 | 1.6 | 1-1/2×2.6 | 38×65.8 | 480 |
| JP-1630F | 1/16 | 1.6 | 1.2×2.08 | 30×52 | 480 |
| JP-1625F | 1/16 | 1.6 | 1×1.73 | 25.4×44 | 480 |
| JP-1238F | 3/64 | 1.2 | 1-1/2×2.6 | 38×65.8 | 270 |
| JP-1230F | 3/64 | 1.2 | 1.2×2.08 | 30×52 | 270 |
| JP-1225F | 3/64 | 1.2 | 1×1.73 | 25.4×44 | 270 |
| JP-1220F | 3/64 | 1.2 | 4/5×1.39 | 20×34.6 | 270 |
The application of stainless steel cable mesh
1. Steel Mesh Balustrade - bridge, stair, balcony, path
2. Cable Mesh - Excellent Solution to Safety
3. Safety Net - Structural Measure to Prevent Suicide
4. Helipad Safety Net - Modular Heliport Webbing
5. Cable Zoo Mesh - Solution to Enclosing Most Animals
6. Aviary Netting - Lightweight, Durable and Long Lasting
7. Green Facade - Cable System for Most Climbing Plants
1. Knotted mesh is a kind of plain weave, each warp wire rope crosses alternately above and below each weft wire rope. Warp and weft wire ropes generally have the same diameter.
2.Ferruled mesh is of the same physical properties with the knotted mesh, the only difference is in the combination style, the stainless wire rope are combined by the ferrules which are made of the same grade stainless steel.
