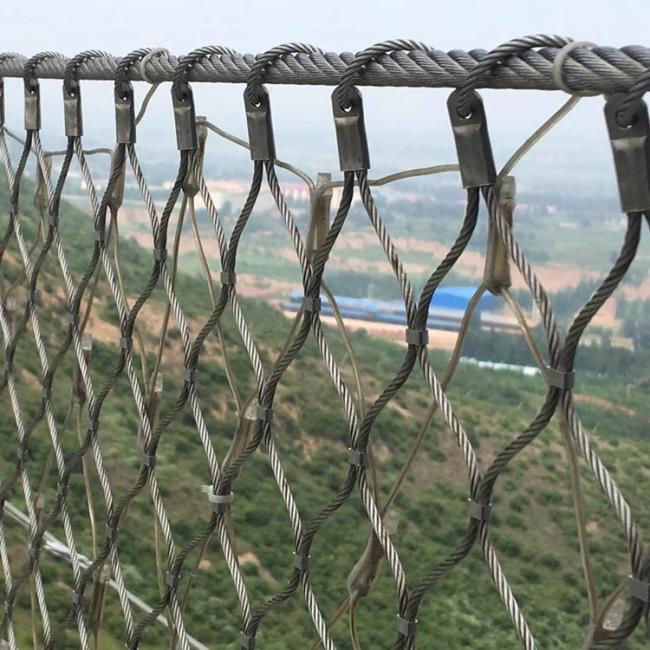

Facade Cladding 304 Stainless Steel Cable Mesh Woven Wire Rope Mesh 2.0mm For Suspension Bridge
Factory sale 304 stainless steel wire rope mesh for suspension bridge Stainless Steel Cable Mesh
Factory sale 304 stainless steel wire rope mesh for suspension bridge Stainless Steel Cable Mesh
|
Product Name
|
304 stainless steel wire rope mesh for suspension bridge Stainless Steel Cable Mesh
|
|
Material
|
SS304 SS316/316L
|
|
Color
|
Silver,Black
|
|
Wire diameter
|
1.2mm,1.5mm ,2.0mm,2.5mm,3.0mm,4.0mm,5.0mm,6.0mm
|
|
Hole size
|
30x30cm,40x70mm or as your order
|
|
Length
|
Customers' Requirement
|
|
Sample
|
Avaliable
|
|
Feature
|
1. high quality material 2. uniform mesh 3. standard size 4. long uselife 5. strong tensile 6. easy install |
|
Usage
|
Upscale hotels, restaurants, opera houses, exhibition halls
|
|
Delivery time
|
7-12 days
|
Stainless Steel Rope Mesh,stainless steel rope net
Flexible stainless steel rope nets are made of various materials such as AISI 304, AISI304L, AISI 316 / AISI 316L, including knotted nets and ferrule nets. The nets can be used in vertical or horizontal directions. Common mesh sizes range from 20mm x 20mm to 300mm x 300mm, and stainless steel rope mesh diameters range from 1.0mm to 4.0mm. We can customize the braid openings, wire diameters and sizes infinitely to meet your exact specifications. Contact us and let architects and designers recommend specifications corresponding to various loads and uses to meet your needs.
Stainless Steel Cable Mesh Specification
|
Rope Construction
|
Rope Diameter
|
Aperture
|
Breaking Force
|
|
|
inch
|
mm
|
mm
|
kn
|
|
|
7 × 19
|
1/8
|
3.2
|
120 × 208
|
7.38
|
|
7 × 19
|
1/8
|
3.2
|
100 × 173
|
7.38
|
|
7 × 19
|
1/8
|
3.2
|
90 × 156
|
7.38
|
|
7 × 7
|
3/32
|
2.4
|
100 × 173
|
4.18
|
|
7 × 7
|
3/32
|
2.4
|
90 × 156
|
4.18
|
|
7 × 7
|
3/32
|
2.4
|
80 × 139
|
4.18
|
|
7 × 7
|
3/32
|
2.4
|
70 × 121
|
4.18
|
|
7 × 7
|
5/64
|
2.0
|
100 × 173
|
3.17
|
|
7 × 7
|
5/64
|
2.0
|
90 × 156
|
3.17
|
|
7 × 7
|
5/64
|
2.0
|
80 × 139
|
3.17
|
|
7 × 7
|
5/64
|
2.0
|
70 × 121
|
3.17
|
|
7 × 7
|
1/16
|
1.6
|
80 × 139
|
2.17
|
|
7 × 7
|
1/16
|
1.6
|
70 × 121
|
2.17
|
|
7 × 7
|
1/16
|
1.6
|
60 × 104
|
2.17
|
|
7 × 7
|
1/16
|
1.6
|
51 × 87
|
2.17
|
|
7 × 7
|
3/64
|
1.2
|
80 × 139
|
1.22
|
|
7 × 7
|
3/64
|
1.2
|
60 × 104
|
1.22
|
|
7 × 7
|
3/64
|
1.2
|
50 × 87
|
1.22
|
|
7 × 7
|
3/64
|
1.2
|
40 × 69
|
1.22
|
The application of stainless steel cable mesh
1. Steel Mesh Balustrade - bridge, stair, balcony, path
2. Cable Mesh - Excellent Solution to Safety
3. Cable Zoo Mesh - Solution to Enclosing Most Animals
4. Aviary Netting - Lightweight, Durable and Long Lasting
5. Safety Net - Structural Measure to Prevent Suicide
6. Helipad Safety Net - Modular Heliport Webbing
7. Green Facade - Cable System for Most Climbing Plants
In poly bag or plastic cage ,and then in box or cartons as customer required.
Packing & Delivery
1. The set of paper tube.
2. Outside waterproof paper (kraft paper) + bubble pad.
3. Finally in a wooden case or pallet.
4. Also we can as per your requirements.
Company Profile
Jianping wire mesh CO.LTD is a China company and has been operating since 2012.We are a professional manufacturer integrating the development, production and sales of metal and plastic fence, traffic signs,kinds of safty fence.
With 14,000 sq. meter of warehouse space & more than 200 well trained workers, we are able to serve wide variety of safe fence,security and enclosure needs in China and all over World. At Jianping, we specialize in fences and barriers and we take our craft seriously. It is our mission to provide you with exceptional choice, quality, efficient service, and unbeatable prices whether you are buying 1 panel or 1000 panels.
Jianping wire mesh CO.LTD offer personal service with a custom, flexible approach. Our skilled and experienced team are highly dedicated, and geared to responding to every enquiry promptly.
