25*25mm Stainless Steel Cable Mesh 60 Degree Green Wall Wire Trellis System
Factory sale 304 stainless steel wire rope mesh for suspension bridge Stainless Steel Cable Mesh
Factory sale 304 stainless steel wire rope mesh for suspension bridge Stainless Steel Cable Mesh
|
Product Name
|
304 stainless steel wire rope mesh for suspension bridge Stainless Steel Cable Mesh
|
|
Material
|
SS304 SS316/316L
|
|
Color
|
Silver,Black
|
|
Wire diameter
|
1.2mm,1.5mm or as your order
|
|
Hole size
|
30x30mm,40x40mm or as your order
|
|
Length
|
Customers' Requirement
|
|
Sample
|
Avaliable
|
|
Feature
|
Simple and convenient. The shape is special and elegant.
|
|
Usage
|
1. Steel Mesh Balustrade - bridge, stair, balcony, path
2. Cable Mesh - Excellent Solution to Safety 3. Safety Net - Structural Measure to Prevent Suicide 4. Helipad Safety Net - Modular Heliport Webbing 5. Cable Zoo Mesh - Solution to Enclosing Most Animals 6. Aviary Netting - Lightweight, Durable and Long Lasting 7. Green Facade - Cable System for Most Climbing Plants |
|
Delivery time
|
7-12 days
|
Stainless Steel Rope Mesh,stainless steel rope net
Stainless steel rope mesh is made from high tensile stainless steel 304, 316, 304L and 316L.

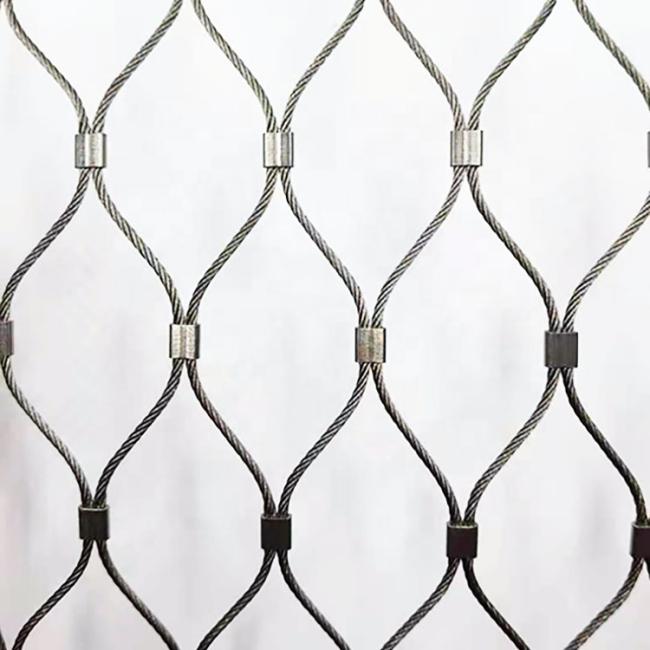

There are two types:Ferrule rope mesh and knotted rope mesh.The difference between them is the two neighboring ropes of stainless steel ferrule rope mesh are combined by ferrules to form diamond openings.
And ferrules are made of the same material as the rope wire. The standard angle is 60°, but other angles are also available, such as 10° and 90°. Stainless steel ferrule rope mesh is very flexible, and its width and length can be modified
Because of its flexibility, it can be applied to almost all complex terrain and irregular space.
Stainless Steel Cable Mesh Specification
|
Rope Construction
|
Rope Diameter
|
Aperture
|
Breaking Force
|
|
|
inch
|
mm
|
mm
|
kn
|
|
|
7 × 19
|
1/8
|
3.2
|
120 × 208
|
7.38
|
|
7 × 19
|
1/8
|
3.2
|
100 × 173
|
7.38
|
|
7 × 19
|
1/8
|
3.2
|
90 × 156
|
7.38
|
|
7 × 7
|
3/32
|
2.4
|
100 × 173
|
4.18
|
|
7 × 7
|
3/32
|
2.4
|
90 × 156
|
4.18
|
|
7 × 7
|
3/32
|
2.4
|
80 × 139
|
4.18
|
|
7 × 7
|
3/32
|
2.4
|
70 × 121
|
4.18
|
|
7 × 7
|
5/64
|
2.0
|
100 × 173
|
3.17
|
|
7 × 7
|
5/64
|
2.0
|
90 × 156
|
3.17
|
|
7 × 7
|
5/64
|
2.0
|
80 × 139
|
3.17
|
|
7 × 7
|
5/64
|
2.0
|
70 × 121
|
3.17
|
|
7 × 7
|
1/16
|
1.6
|
80 × 139
|
2.17
|
|
7 × 7
|
1/16
|
1.6
|
70 × 121
|
2.17
|
|
7 × 7
|
1/16
|
1.6
|
60 × 104
|
2.17
|
|
7 × 7
|
1/16
|
1.6
|
51 × 87
|
2.17
|
|
7 × 7
|
3/64
|
1.2
|
80 × 139
|
1.22
|
|
7 × 7
|
3/64
|
1.2
|
60 × 104
|
1.22
|
|
7 × 7
|
3/64
|
1.2
|
50 × 87
|
1.22
|
|
7 × 7
|
3/64
|
1.2
|
40 × 69
|
1.22
|
Packing & Delivery
In poly bag or plastic cage ,and then in box or cartons as customer required.
1. The set of paper tube.
2. Outside waterproof paper (kraft paper) + bubble pad.
3. Finally in a wooden case or pallet.
4. Also we can as per your requirements.
