Deck Railing 316 Stainless Steel Rope Mesh 4.0mm Flexible For Balcony
Flexible Railings for Balcony with SUS 316 Stainless Steel rope mesh
1. Stainless Steel Rope Mesh Specification:
SUS 316 ferrule type stainless steel safety netting for stairs railing with cable mesh
Stainless steel ferrule mesh, the stainless steel grade includes type304, type304L, type316, type316L.

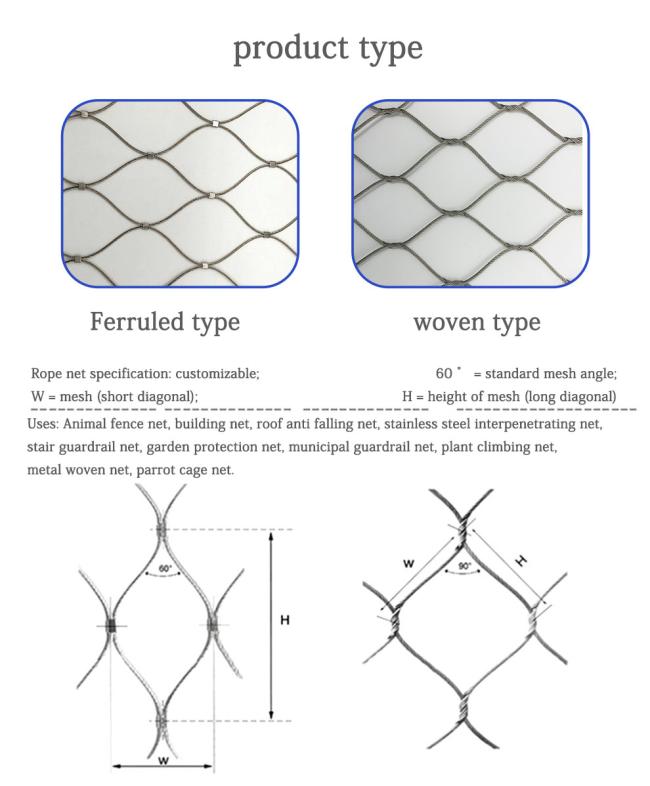

The structures of the stainless steel wire cable mesh have two kinds: 7 x 7 and 7 x 19. The standard stainless steel wire cable diameter includes 1/8", 3/32", 1/12", 1/16", and 3/64", the standard mesh opening size includes 2" x 2", 3" x 3" and 4" x 4".
The flexible stainless steel wire cable mesh's rhombus mesh has excellent flexible performance, virtually indestructible, most impacting-resistant and breaking resistant force, most resisting rain, snow and hurricane.
Mesh connections (ferrules) are available in highly aesthetic stainless steel for premium applications or where resistance to corrosion is a driving consideration.
Our services range from ferruled wire rope mesh , knotted wire rope mesh to various installation's accessories . Also we can provide black oxide wire rope mesh .
Customized flexible stainless steel cable mesh, wire rope mesh for building facade systems, green wall systems. railing & balustrade systems. safety nets. enclosure for animal in zoo.
|
Hebei Jianping Metal Wire Mesh Co.,Ltd Flexible Stainless Steel Cable Mesh(Ferrule Type) |
||||||
| Mesh Aperture | Wire diameter | |||||
| OW X OH (mm) | Inch | 1.2 mm | 1.5 mm | 2.0 mm | 3.0 mm | 4.0 mm |
| 3/64" | 1/16" | 5/64" | 1/8" | 0.157" | ||
| 20 x 35 | 4/5×1.39 | JP1220 | ||||
| 25.4 x 44 | 1×1.73 | JP1225 | JP1525 | |||
| 35 x 61 | 1.37×24 | JP1235 | JP1535 | JP2035 | ||
| 38 x 65.8 | 1-1/2×2.6 | JP1235 | JP1538 | JP2038 | JP3038 | |
| 51 x 88.3 | 2×3.46 | JP1251 | JP1551 | JP2051 | JP3051 | JP4051 |
| 60 x 105 | 2.4×4.16 | JP1260 | JP1560 | JP2060 | JP3060 | JP4060 |
| 76 x 131.6 | 3×5.2 | JP1276 | JP1576 | JP2076 | JP3076 | JP4076 |
| 90 x 156 | 3.5×6.15 | JP1290 | JP1576 | JP2090 | JP3090 | JP4090 |
| 102 x 176.7 | 4×6.9 | JP20100 | JP15100 | JP20100 | JP30100 | JP40100 |
| 120 x 210 | 4.75×8.23 | JP12120 | JP15120 | JP20120 | JP30120 | JP40120 |
| 160 x 280 | 6.3 x 11 | JP12160 | JP15160 | JP20160 | JP30160 | JP40160 |
| 180 x 315 | 7.08 x 12.4 | JP12180 | JP15180 | JP20180 | JP30180 | JP40180 |
| 200 x 350 | 7.87 x 13.78 | JP12200 | JP15200 | JP20200 | JP30200 | JP40200 |
| 250 x 450 | 9.84 x 17.7 | JP12250 | JP15250 | JP20250 | JP30250 | JP40250 |
| 300 x 525 | 11.8 x 20.67 | JP12300 | JP15300 | JP20300 | JP30300 | JP40300 |
2. Advantage:
3.Stainless Steel Rope Mesh Application:

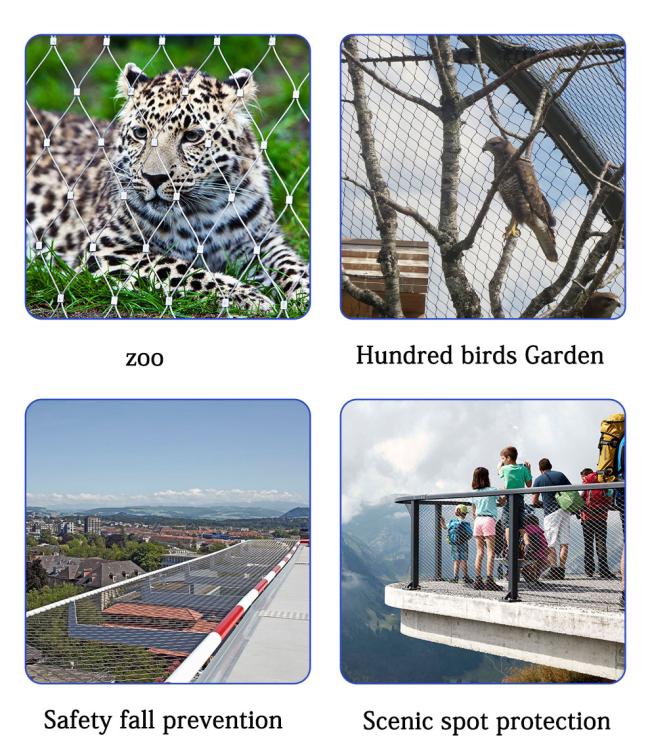

It is widely used in: Agriculture,Residential,Sports, Animal Enclosure mesh, animal cages, bird netting, stairway and Fall Security, Etc.
4. FAQ:
Q:Are you factory or Middleman?
A:We have Factory in Anping China. Our product is high quality with a competitive price.
Q:How to contact us?
A:You can click contact supplier and then send your requirements to us,we have a high quality sales team,we can help you get what you really want.
Q:Can I customize the products?
A:yes, as long as provide specifications, drawings, can only do what you want products.
Q:What is the Minimum Order Quantity?
A:Usually,the minimum order quantity is 10 Sqm,for the price is much reasonable for customers,but if you really don’t need so much,it can be negotiable,If it only because you don’t trust the quality,we can send you sample first.
Q:What is the lead time?
A:Usually,the lead time is within 10 days after we receipt of the prepayment,if you need products urgently.we will do our best to produce it ASAP.and shipping ASAP,to meet your requirement.
Q: How can I know my order progress?
A: Production and packages photos will be supplied and confirmed with you before loading.
