Webnet Stainless Steel Wire Mesh 7×19 , Black Oxide Banister Safety Netting

• Stainless steel wire rope mesh (also called cable mesh) made form high quality stainless steel wire rope, with the features of extremely anti-corrosion and resistant to UV rays, has a long lifespan in the harsh environments. And its largest benefit is particular resilience and flexibility. Our rope mesh may in knotted, ferrule type, woven square, or square mesh with cruciate/cross clamps. They are all favored by fashion architects.

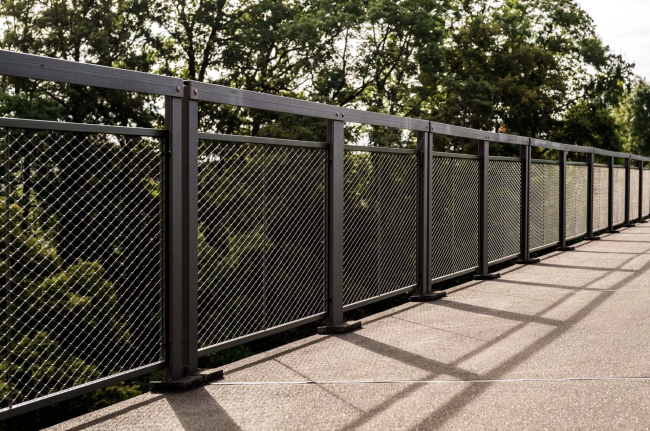

  Webnet stainless steel wire mesh balustrade infill/Balustrade Mesh Infill

  Cable diameter		Mesh opening size		Nominal break
  inch	mm	inch	mm	lbs.
  1/8	3.2	4x4	102x102	1600
  1/8	3.2	3x3	76x76	1600
  1/8	3.2	2x2	51x51	1600
  3/32	2.4	4x4	102x102	920
  3/32	2.4	3x3	76x76	920
  3/32	2.4	2x2	51x51	920
  5/64	2.0	3x3	76x76	676
  5/64	2.0	2x2	51x51	676
  5/64	2.0	1-1/2x 1-1/2	38x38	676
  1/16	1.6	3x3	76x76	480
  1/16	1.6	2x2	51x51	480
  1/16	1.6	1-1/2x 1-1/2	38x38	480
  1/16	1.6	1x1	25.4x25.4	480
  3/64	1.2	1-1/2x 1-1/2	38x38	270
  3/64	1.2	1x1	25.4x25.4	270
  3/64	1.2	4/5x4/5	20x20	270

Webnet stainless steel wire mesh balustrade infill/Balustrade Mesh Infill

1.Steel Mesh Balustrade - bridge, stair, balcony, path
2. Cable Mesh - Excellent Solution to Safety
3. Safety Net - Structural Measure to Prevent Suicide
4. Helipad Safety Net - Modular Heliport Webbing
5. Cable Zoo Mesh - Solution to Enclosing Most Animals
6. Aviary Netting - Lightweight, Durable and Long Lasting
7. Green Facade - Cable System for Most Climbing Plants
