Diamond Stainless Steel Mesh Sheet , 316 Woven Metal Mesh For Balustrades Handrails
Price:
USD 5-30/m2
MOQ:
10 Sqm
Delivery Time:
5-8 Work Days
Brand:
Jianping
Product Description

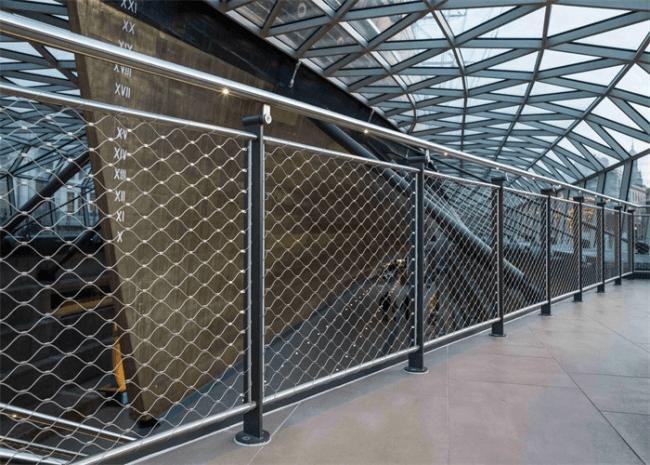

Light color Stainless Steel architectural woven metal mesh for balustrades & Handrails /Balustrade Mesh Infill
Stainless steel wire rope mesh /Balustrade Mesh Infill Description :
- Stainless steel wire rope mesh (also called cable mesh) made form high quality stainless steel wire rope, with the features of extremely anti-corrosion and resistant to UV rays, has a long lifespan in the harsh environments. And its largest benefit is particular resilience and flexibility. Our rope mesh may in knotted, ferrule type, woven square, or square mesh with cruciate/cross clamps. They are all favored by fashion architects.
- Characteristics of stainless steel rope net:lightweight,high strength,never rust,soft,fatigue resistance, impact resistance,breaking force, the overall sturucture is sold and durable,service life in more than 30 years.
Balustrade Mesh Infill/DecorRope hand woven metal rope mesh for Stair CaseBalcony Railing Balustrade Infill
Specification of Stainless steel wire rope mesh/Balustrade Mesh Infill:
|
Product Name
|
Stainless steel wire rope mesh(stainless steel cable mesh)
|
|||
|
Certifacates
|
CE and ROHS Certificates
|
|||
|
Material
|
304 or 316 or316L
|
|||
|
Wire Diameter
|
1mm-5mm, the common diameter:1.5mm,2.0mm,3.0mm
|
|||
|
Wire Structure
|
7*7 or 7*19
|
|||
|
Opening Hole Size
|
From10*10mm to 300*300mm,the common size:40*70mm 50*90mm 60*104mm 80*140mm.
|
|||
|
Woven Type
|
Ferruled type and Knotted type
Knotted mesh is a kind of plain weave, each warp wire rope crosses alternately above and below each weft wire rope. Warp and weft wire ropes generally have the same diameter.
2.Ferruled mesh is of the same physical properties with the knotted mesh, the only difference is in the combination style, the stainless wire rope are combined by the ferrules which are made of the same grade stainless steel. |
|||
| Cable diameter | Mesh opening size | Nominal break | ||
| inch | mm | inch | mm | lbs. |
| 1/8 | 3.2 | 4x4 | 102x102 | 1600 |
| 1/8 | 3.2 | 3x3 | 76x76 | 1600 |
| 1/8 | 3.2 | 2x2 | 51x51 | 1600 |
| 3/32 | 2.4 | 4x4 | 102x102 | 920 |
| 3/32 | 2.4 | 3x3 | 76x76 | 920 |
| 3/32 | 2.4 | 2x2 | 51x51 | 920 |
| 5/64 | 2.0 | 3x3 | 76x76 | 676 |
| 5/64 | 2.0 | 2x2 | 51x51 | 676 |
| 5/64 | 2.0 | 1-1/2x 1-1/2 | 38x38 | 676 |
| 1/16 | 1.6 | 3x3 | 76x76 | 480 |
| 1/16 | 1.6 | 2x2 | 51x51 | 480 |
| 1/16 | 1.6 | 1-1/2x 1-1/2 | 38x38 | 480 |
| 1/16 | 1.6 | 1x1 | 25.4x25.4 | 480 |
| 3/64 | 1.2 | 1-1/2x 1-1/2 | 38x38 | 270 |
| 3/64 | 1.2 | 1x1 | 25.4x25.4 | 270 |
| 3/64 | 1.2 | 4/5x4/5 | 20x20 | 270 |
Uses of Stainless steel wire rope mesh/Balustrade Mesh Infill:
1.Steel Mesh Balustrade - bridge, stair, balcony, path
2. Cable Mesh - Excellent Solution to Safety
3. Safety Net - Structural Measure to Prevent Suicide
4. Helipad Safety Net - Modular Heliport Webbing
5. Cable Zoo Mesh - Solution to Enclosing Most Animals
6. Aviary Netting - Lightweight, Durable and Long Lasting
7. Green Facade - Cable System for Most Climbing Plants
Packing & Delivery of Stainless Steel Wire Rope Mesh/Balustrades Mesh
1. The set of paper tube.
2. Outside waterproof paper (kraft paper) + bubble pad.
3. Finally in a wooden case or pallet.
4. Also we can as per your requirements.
2. Outside waterproof paper (kraft paper) + bubble pad.
3. Finally in a wooden case or pallet.
4. Also we can as per your requirements.
