Diamond AISI Balustrade Cable Mesh Animal Decorative Rope Fence For Animal Enclosure

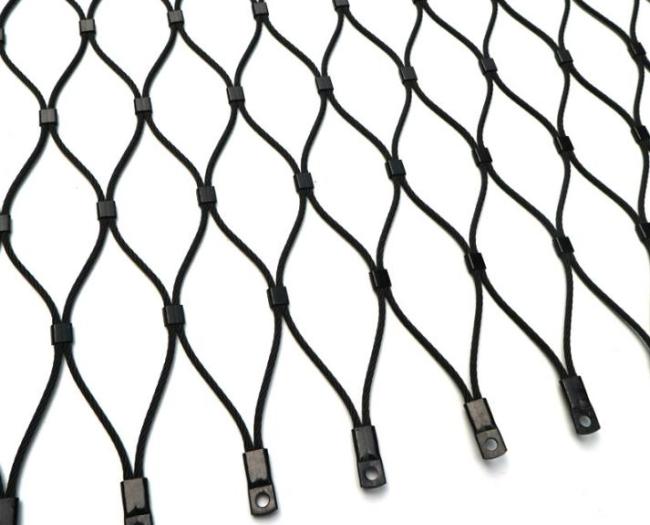

Hand Woven Black Oxide Stainless Steel Wire Rope Mesh For Animal Enclosure / Balustrade
1.Specification of Hand Woven Black Oxide Stainless Steel Wire Rope Mesh :
Hand Woven Black Oxide Stainless Steel Wire Rope Mesh is manufactured in the standard diameters 1.0 mm, 1.5 mm, 1.6mm, 2.0 mm, 3.0 mm and 3.2mm.Mesh width of 25 to 200 mm (or bigger) are possible depending on cable diameter.
Rope Mesh is manufactured from high-grade stainless steel cables of material class 1.4401, AISI316.
Mesh connections (ferrules) are available in highly aesthetic stainless steel for premium applications or where resistance to corrosion is a driving consideration.
Hand Woven Black Oxide Stainless Steel Wire Rope Mesh:
1. Material is high quality stainless steel rope and stainless steel clips.
2. Material: high quality 304,304L,316,316L.
3. It uses in home decoration, garden, and construction line.
4. Use life more than 30 years.
5. Never rust, fatigue resistance, impact resistance, high break force, the overall structure strong with long life, wide looking, new style
Stainless steel rope mesh ,also called SS cable mesh, made form high quality stainless steel wire rope, with the features ofextremely anti-corrosion and esistant to UV rays, has a long lifespan in the harsh environments.
| Stainless Steel Wire Rope Zoo Mesh | |||||||
| Code | Wire Rope Construction | Min. Breaking Load (KN) | Wire Rope Diameter | Aperture | Application | ||
| Inch | mm | Inch | mm | ||||
| 1 | 7 x 19 | 7.38 | 1/8 | 3.2 | 6" x 6" | 152 x 152 | large and fierce animals like tiger, lion, leopard, orangutan |
| 2 | 7 X 19 | 7.38 | 1/8 | 3.2 | 5" x 5" | 127 x 127 | |
| 3 | 7 X 19 | 7.38 | 1/8 | 3.2 | 4.7" x 4.7" | 120 X 120 | |
| 4 | 7 x 19 | 7.38 | 1/8 | 3.2 | 4" x 4" | 102 x 102 | |
| 5 | 7 x 19 | 7.38 | 1/8 | 3.2 | 3.6" x 3.6" | 90 x 90 | |
| 6 | 7 x 19 | 7.38 | 1/8 | 3.2 | 3" x 3" | 76 x 76 | |
| 7 | 7 X 19 | 7.38 | 1/8 | 3.2 | 2.4" x 2.4" | 60 x 60 | |
| 8 | 7 x 19 | 7.38 | 1/8 | 3.2 | 2" x 2" | 51 x 51 | |
| 9 | 7 x 7 | 4.18 | 3/32 | 2.4 | 6" x 6" | 152 x 152 | large and fierce animals like tiger, lion, leopard, orangutan, monkey |
| 10 | 7 x 7 | 4.18 | 3/32 | 2.4 | 5" x 5" | 127 x 127 | |
| 11 | 7 x 7 | 4.18 | 3/32 | 2.4 | 4" x 4" | 102 x 102 | |
| 12 | 7 x 7 | 4.18 | 3/32 | 2.4 | 3.6" x 3.6" | 90 x 90 | |
| 13 | 7 x 7 | 4.18 | 3/32 | 2.4 | 3" x 3" | 76 x 76 | |
| 14 | 7 x 7 | 4.18 | 3/32 | 2.4 | 2.4" x 2.4" | 60 x 60 | |
| 15 | 7 x 7 | 4.18 | 3/32 | 2.4 | 2" x 2" | 51 x 51 | |
| 16 | 7 x 7 | 3.17 | 5/64 | 2 | 3" x 3" | 76 x 76 | small cat animals like mokey |
| 17 | 7 x 7 | 3.17 | 5/64 | 2 | 2.4" x 2.4" | 60 x 60 | |
| 18 | 7 x 7 | 3.17 | 5/64 | 2 | 2" x 2" | 51 x 51 | |
| 19 | 7 x 7 | 3.17 | 5/64 | 2 | 1.5" x 1.5" | 38 x 38 | |
| 20 | 7 x 7 | 2.17 | 1/16 | 1.6 | 4" x 4" | 102 x 102 | large birds |
| 21 | 7 x 7 | 2.17 | 1/16 | 1.6 | 3" x 3" | 76 x 76 | |
| 22 | 7 x 7 | 2.17 | 1/16 | 1.6 | 2.4" x 2.4" | 60 x 60 | |
| 23 | 7 x 7 | 2.17 | 1/16 | 1.6 | 2" x 2" | 51 x 51 | |
| 24 | 7 x 7 | 2.17 | 1/16 | 1.6 | 1.5" x 1.5" | 38 x 38 | small birds |
| 25 | 7 x 7 | 2.17 | 1/16 | 1.6 | 1.2" x 1.2" | 30 x 30 | |
| 26 | 7 x 7 | 2.17 | 1/16 | 1.6 | 1" x 1" | 25.4 x 25.4 | |
| 27 | 7 x 7 | 1.22 | 3/64 | 1.2 | 4" x 4" | 102 x 102 | large birds |
| 28 | 7 x 7 | 1.22 | 3/64 | 1.2 | 3" x 3" | 76 x 76 | |
| 29 | 7 x 7 | 1.22 | 3/64 | 1.2 | 2" x 2" | 51 x 51 | |
| 30 | 7 x 7 | 1.22 | 3/64 | 1.2 | 1.5" x 1.5" | 38 x 38 | small birds, aviary |
| 31 | 7 x 7 | 1.22 | 3/64 | 1.2 | 1.2" x 1.2" | 30 x 30 | |
| 32 | 7 x 7 | 1.22 | 3/64 | 1.2 | 1" x 1" | 25.4 x 25.4 | |
| 33 | 7 x 7 | 1.22 | 3/64 | 1.2 | 0.8" x 0.8" | 20 x 20 | |
Our services range from ferruled wire rope mesh , knotted wire rope mesh to various installation's accessories . Also we can provide black oxide wire rope mesh .
Finished diamond mesh style when it is stretched at 60 degree angle ;
Mesh can be applied in either a vertical or horizontal direction, again dependent on the balustrade or railing design and the required aesthetics.
Hand Woven Black Oxide Stainless Steel Wire Rope Mesh
2.Characteristic
Custom-Manufactured
Discrete, elegant and flexible.
Multifunctional, and compatible with creative architecture.
Premium Quality, Rugged , Weather-Resistant , Non-Corroding and Corrosion-resistant, Alkali Resistant.
