Ferruled AISI Stainless Steel Wire Trellis 304 Woven Steel Mesh Railing
Price:
USD 5-30/m2
MOQ:
10 Sqm
Delivery Time:
5-8 Work Days
Brand:
Jianping
Product Description

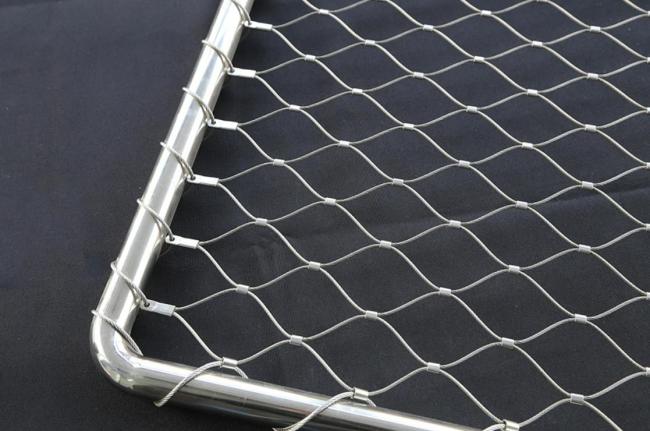

Ferruled AISI304 Grade Stainless Steel Wire Rope Mesh X-Tend Cable Mesh Railing
1.The application of stainless steel x tend cable mesh
The rope mesh is hand-made from the stainless steel wire rope, there are two types.
Type: Ferruled, Knotted
Material: stainless steel304, 316,304L,316L
Rope wire diameter: 1.0mm to 6.0mm etc.
Rope construction: 7 x 7 and 7 x 19
Stainless steel cable rope mesh are combined by ferrules to form diamond openings.
The angle is usually 60°. Other angel also we can made according request. Stainless steel ferruled rope mesh is very flexible,
and easy for installation.
2.The specification as follows:
| Flexible stainless steel x tend cable mesh(Ferrule Type) | |||||
| Item No.s | Cable Diameter | Mesh Opening Size (W×H) |
Normal Break | ||
| inch | mm | inch | mm | ibs. | |
| JP-32120F | 1/8 | 3.2 | 4.75×8.23 | 120×207.8 | 1,600 |
| JP-32102F | 1/8 | 3.2 | 4×6.9 | 102×176.7 | 1,600 |
| JP-3290F | 1/8 | 3.2 | 3.5×6.15 | 90×156 | 1,600 |
| JP-3276F | 1/8 | 3.2 | 3×5.2 | 76×131.6 | 1,600 |
| JP-3251F | 1/8 | 3.2 | 2×3.46 | 51×88.3 | 1,600 |
| JP-24100F | 3/32 | 2.4 | 4×6.9 | 102×176.7 | 920 |
| JP-2490F | 3/32 | 2.4 | 3.55×6.15 | 90×156 | 920 |
| JP-2476F | 3/32 | 2.4 | 3×5.2 | 76×131.6 | 920 |
| JP-2460F | 3/32 | 2.4 | 2.4×4.16 | 60×104 | 920 |
| JP-2451F | 3/32 | 2.4 | 2×3.46 | 51×88.3 | 920 |
| JP-2076F | 5/64 | 2.0 | 3×5.2 | 76×131.6 | 676 |
| JP-2060F | 5/64 | 2.0 | 2.4×4.16 | 60×104 | 676 |
| JP-2051F | 5/64 | 2.0 | 2×3.46 | 51×88.3 | 676 |
| JP-2038F | 5/64 | 2.0 | 1-1/2×2.6 | 38×65.8 | 676 |
| JP-1676F | 1/16 | 1.6 | 1.2×2.08 | 76×131.6 | 480 |
| JP-1651F | 1/16 | 1.6 | 2×3.46 | 51×88.3 | 480 |
| JP-1638F | 1/16 | 1.6 | 1-1/2×2.6 | 38×65.8 | 480 |
| JP-1630F | 1/16 | 1.6 | 1.2×2.08 | 30×52 | 480 |
| JP-1625F | 1/16 | 1.6 | 1×1.73 | 25.4×44 | 480 |
| JP-1238F | 3/64 | 1.2 | 1-1/2×2.6 | 38×65.8 | 270 |
| JP-1230F | 3/64 | 1.2 | 1.2×2.08 | 30×52 | 270 |
| JP-1225F | 3/64 | 1.2 | 1×1.73 | 25.4×44 | 270 |
| JP-1220F | 3/64 | 1.2 | 4/5×1.39 | 20×34.6 | 270 |
Ferruled AISI304 Grade Stainless Steel Wire Rope Mesh X-Tend Cable Mesh Railing
