Balustrade Infill Cable Mesh Railing Black Oxide , AISI Stair Barrier Safety Nets
Balustrade Infill System With Bridge Stairway AIS316 Flexible Stainless Steel Cable Netting
1. Specification of Cable Mesh Railing:
We are happy to introduce you to an exciting product: SS304 316 Cable Mesh Net/Wire Rope Fence for Tensile Project, which is woven from high quality 304,316 and 316L stainless steel wire rope, and all the raw material for producing stainless steel wire cable mesh is imported from South Korea and Japan.Our Stainless Steel Wire Mesh & Wire Cloths with the high tech machines using high grade stainless steel wire. Our Stainless Steel Wire Rope Mesh for Skywalk in Zoo or Gardens are also not affected by acids and excessive heat. It has great advantage over ordinary wire cable mesh.
Balustrade Infill System With Bridge Stairway AIS316 Flexible Stainless Steel Cable Netting Project:

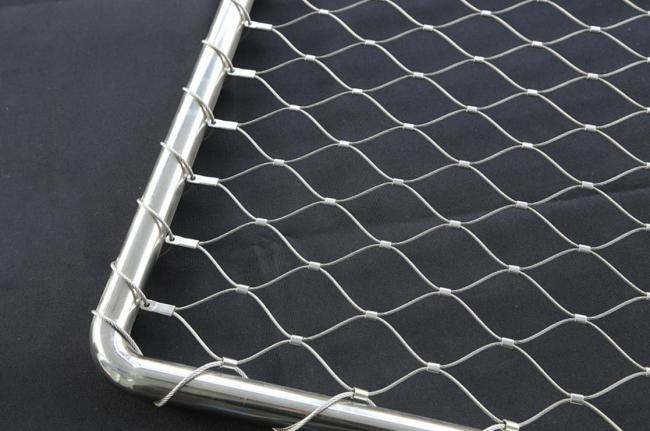

The stainless steel rope mesh is manufactured using a unique hand-woven interlocking technique from standard 7” x 7” and 7" x 19" ,stainless steel cable to create diamond openings from 1” through 4”.
1. Material : Stainless steel 304,304L,316,306L etc.
2. Ferrules Material : Tinned-copper,Nickel-plated copper, Stainless steel etc.
3. Cable construction and Diameter : 7x7 (Dia.: 1.2 - 2.5mm), 7x19 (Dia.: 3.0 - 4.0mm)
|
Hole Size (Opening) |
1.2MM(3/64) (7 x 7 ) |
1.6MM(1/16) (7 x 7 ) |
2.0MM(5/64) (7 x 7 ) |
2.4MM(3/32) (7 x 7 ) |
3.2MM(1/8) (7 x 19 ) |
| 20 x 35mm | JP-1235 | ||||
| 25 x 42mm | JP-1225 | JP-1625 | |||
| 30 x 52mm | JP-1230 | JP-1630 | JP-2030 | ||
| 35 x 60mm | JP-1235 | JP-1635 | JP-2035 | ||
| 38 x 66mm | JP-1238 | JP-1638 | JP-2038 | JP-2438 | |
| 40 x 69mm | JP-1240 | JP-1640 | JP-2040 | JP-2440 | JP-3040 |
| 50 x 86mm | JP-1250 | JP-1650 | JP-2050 | JP-2450 | JP-3050 |
| 60 x 104mm | JP-1260 | JP-1660 | JP-2060 | JP-2460 | JP-3060 |
| 70 x 120mm | JP-1270 | JP-1670 | JP-2070 | JP-2470 | JP-3070 |
| 76 x 131mm | JP-1276 | JP-1676 | JP-2076 | JP-2476 | JP-3076 |
| 80 x 138mm | JP-1280 | JP-1680 | JP-2080 | JP-2480 | JP-3080 |
| 90 x 154mm | JP-1290 | JP-1690 | JP-2090 | JP-2490 | JP-3090 |
| 100 x 173mm | JP-12100 | JP-16100 | JP-20100 | JP-24100 | JP-30100 |
| 120 x 206mm | JP-12120 | JP-16120 | JP-20120 | JP-24120 | JP-30120 |
Stainless steel ferrule mesh, the stainless steel grade includes type304, type304L, type316, type316L.
The structures of the stainless steel wire cable mesh have two kinds: 7 x 7 and 7 x 19. The standard stainless steel wire cable diameter includes 1/8", 3/32", 1/12", 1/16", and 3/64", the standard mesh opening size includes 2" x 2", 3" x 3" and 4" x 4".
The flexible stainless steel wire cable mesh's rhombus mesh has excellent flexible performance, virtually indestructible, most impacting-resistant and breaking resistant force, most resisting rain, snow and hurricane.
Because of the material is virtually indestructible stainless steel, it can be safely contain any species on land, in the air indoors or out. And the weave opening, we can infinitely customizable to meet your exhibits exact specifications. No matter how large, how small, or how cunning you specimens are, we assure their complete security.
2. Application of Cable Mesh Railing :
Balustrade Infill System With Bridge Stairway AIS316 Flexible Stainless Steel Cable Netting
