Ferrule Stainless Steel Safety Net 316L Diamond 1.5mm Safety Netting For Railings
Metal Wire Zoo Knotted Mesh Stainless Steel Cable Woven Aviary Netting Inox Animal Enclosure Mesh/Animal Fence Netting
Stainless Steel Wire Rope Mesh Safety Net also called stainless steel cable mesh,stainless steel wire rope fence.
it is made of high quality stainless steel wire rope.with the high tensile strength,easy fold,resistant to UV rays,a long lifespan in the harsh environments,anti-rust and anti corrosion.So widely choose by many clients.

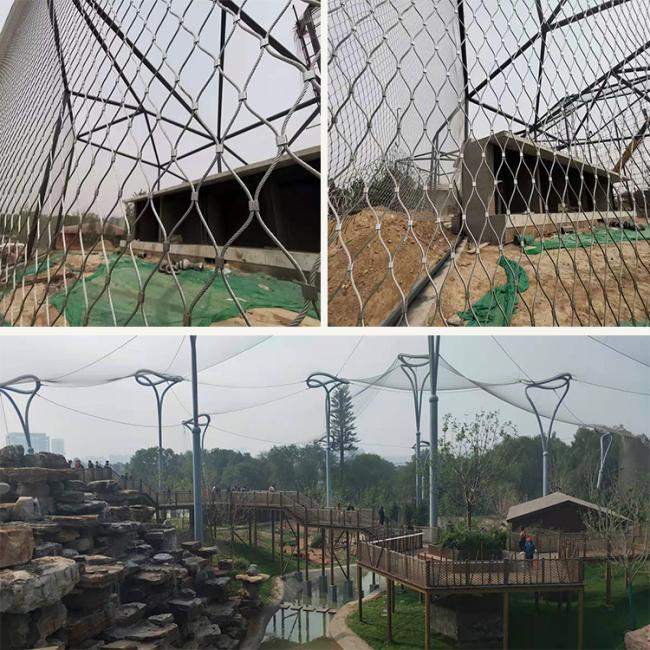

Stainless steel rope zoo mesh has diamond-shaped openings and high strength, which can protect visitors from being damaged.
Therefore, visitors can enjoy the animals at a close distance free of danger. What's more, it can protect animals from being hurt.
Stainless Steel Wire Rope Mesh Safety Net types:
1. Knotted Mesh is a kind of plain weave, each warp wire rope crosses alternately above and below each weft wire rope. Warp and weft wire ropes generally have the same diameter.
2. Ferruled Mesh is the same of physical properties with the knotted Mesh, the only difference is in the combination style, the stainless wire rope are combined by the ferrules which are made of the same grade stainless steel.
Stainless Steel Wire Rope Mesh Safety Net specification list:
| Cable diameter | Mesh opening size | Nominal break | ||
| inch | mm | inch | mm | lbs. |
| 1/8 | 3.2 | 4x4 | 102x102 | 1600 |
| 1/8 | 3.2 | 3x3 | 76x76 | 1600 |
| 1/8 | 3.2 | 2x2 | 51x51 | 1600 |
| 3/32 | 2.4 | 4x4 | 102x102 | 920 |
| 3/32 | 2.4 | 3x3 | 76x76 | 920 |
| 3/32 | 2.4 | 2x2 | 51x51 | 920 |
| 5/64 | 2.0 | 3x3 | 76x76 | 676 |
| 5/64 | 2.0 | 2x2 | 51x51 | 676 |
| 5/64 | 2.0 | 1-1/2x 1-1/2 | 38x38 | 676 |
| 1/16 | 1.6 | 3x3 | 76x76 | 480 |
| 1/16 | 1.6 | 2x2 | 51x51 | 480 |
| 1/16 | 1.6 | 1-1/2x 1-1/2 | 38x38 | 480 |
| 1/16 | 1.6 | 1x1 | 25.4x25.4 | 480 |
| 3/64 | 1.2 | 1-1/2x 1-1/2 | 38x38 | 270 |
| 3/64 | 1.2 | 1x1 | 25.4x25.4 | 270 |
| 3/64 | 1.2 | 4/5x4/5 | 20x20 | 270 |
Stainless Steel Wire Rope Mesh Safety Net/Stainless Steel Safety Net
2. Advantage of Stainless Steel Wire Rope Mesh Safety Net/Stainless Steel Safety Net :
3.Stainless Steel Wire Rope Mesh Safety Net Application:
It is widely used in: Agriculture,Residential,Sports, Animal Enclosure mesh, animal cages, bird netting, stairway and Fall Security, Etc.
Stainless Steel Wire Rope Mesh Safety Net/Stainless Steel Safety Net
| Stainless Steel Wire Rope Zoo Mesh | |||||||
| Code | Wire Rope Construction | Min. Breaking Load (KN) | Wire Rope Diameter | Aperture | Application | ||
| Inch | mm | Inch | mm | ||||
| 1 | 7 x 19 | 7.38 | 1/8 | 3.2 | 6" x 6" | 152 x 152 | large and fierce animals like tiger, lion, leopard, orangutan |
| 2 | 7 X 19 | 7.38 | 1/8 | 3.2 | 5" x 5" | 127 x 127 | |
| 3 | 7 X 19 | 7.38 | 1/8 | 3.2 | 4.7" x 4.7" | 120 X 120 | |
| 4 | 7 x 19 | 7.38 | 1/8 | 3.2 | 4" x 4" | 102 x 102 | |
| 5 | 7 x 19 | 7.38 | 1/8 | 3.2 | 3.6" x 3.6" | 90 x 90 | |
| 6 | 7 x 19 | 7.38 | 1/8 | 3.2 | 3" x 3" | 76 x 76 | |
| 7 | 7 X 19 | 7.38 | 1/8 | 3.2 | 2.4" x 2.4" | 60 x 60 | |
| 8 | 7 x 19 | 7.38 | 1/8 | 3.2 | 2" x 2" | 51 x 51 | |
4. FAQ:
Q:Are you factory or Middleman?
A:We have Factory in Anping China. Our product is high quality with a competitive price.
Q:How to contact us?
A:You can click contact supplier and then send your requirements to us,we have a high quality sales team,we can help you get what you really want.
Q:Can I customize the products?
A:yes, as long as provide specifications, drawings, can only do what you want products.
Q:What is the Minimum Order Quantity?
A:Usually,the minimum order quantity is 10 Sqm,for the price is much reasonable for customers,but if you really don’t need so much,it can be negotiable,If it only because you don’t trust the quality,we can send you sample first.
Q:What is the lead time?
A:Usually,the lead time is within 10 days after we receipt of the prepayment,if you need products urgently.we will do our best to produce it ASAP.and shipping ASAP,to meet your requirement.
Q: How can I know my order progress?
A: Production and packages photos will be supplied and confirmed with you before loading.
