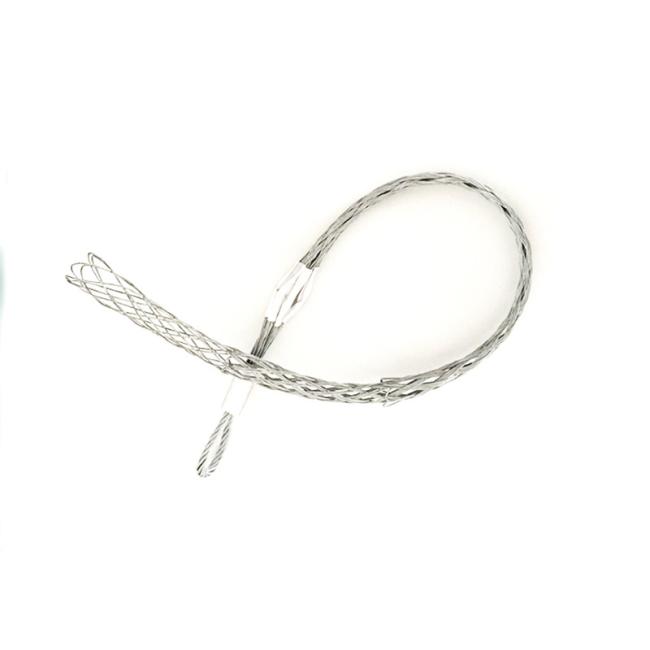

Rotating Eye Multi Weave Mesh Wire Puller Hoisting Grip Wire Mesh Grip
Rotating Eye Multi-weave Cable Pulling Grip/Hoisting Grip/Wire Mesh Grip/Cable Pulling Grips
* Double weave variable mesh design provides added strength and greater mesh contact on the cable.
* They are designed to handle longer or heavier pulling jobs such as an installation of underground Cables, communication lines and service lines.
* Used in factories, construction sites and utility work.
|
Product type
|
Strong type draging cable grip
|
||
|
Size
|
1/4, 3/8, 1/2, 5/8, 7/8, 1-1/4, 1-3/8, 1-5/8, 2-1/4, 3, 4, 5 in or any other sizes
|
||
|
Material
|
Stainless steel, Galvanized steel
|
||
|
Delivery
|
Within 7-15 days
|
||
|
Sample
|
Avaliable
|
||
|
Part Number
|
Cable Diameter
|
Eye Diameter
|
Mesh Length
|
Approx Break Strength
|
|
JPCS010
|
0.25-0.49"
(6.4-12.5mm)
|
7/8"(22.2mm)
|
26"(660.4mm)
|
6800 lbs.
|
|
JPCS016
|
0.50-0.74"
(12.7-18.8mm)
|
1"(25.4mm)
|
32"(812.8mm)
|
10000 lbs.
|
|
JPCS022
|
0.75-0.99"
(19.1-25.1mm)
|
1"(25.4mm)
|
41"(1041.4mm)
|
14400 lbs.
|
|
JPCS025
|
1.00-1.24"
(25.4-31.8mm)
|
1-3/8"(34.9mm)
|
52"(1320.8mm)
|
24600 lbs.
|
|
JPCS032
|
1.25-1.49"
(31.8-37.8mm)
|
1-5/8"(41.3mm)
|
56"(1422.4mm)
|
30600 lbs.
|
|
JPCS038
|
1.50-1.74"
(38.1-44.2mm)
|
1-7/8"(47.6mm)
|
60"(1524.0mm)
|
30600 lbs.
|
|
JPCS050
|
2.00-2.49"
(50.8-63.3mm)
|
1-7/8"(47.6mm)
|
50"(1270.0mm)
|
48000 lbs.
|
|
JPCS060
|
2.50-2.99"
(63.5-76.0mm)
|
1-7/8"(47.6mm)
|
52"(1320.8mm)
|
48000 lbs.
|
|
JPCS070
|
3.00-3.49"
(76.2-88.6mm)
|
1-7/8"(47.6mm)
|
54"(1371.6mm)
|
48000 lbs.
|
|
JPCS080
|
3.50-3.99"
(88.9-101.3mm)
|
1-7/8"(47.6mm)
|
56"(1422.4mm)
|
48000 lbs.
|
Rotating Eye Multi-weave Cable Pulling Grip/Hoisting Grip/Wire Mesh Grip/Cable Pulling Grips
Types of Grip Cable Pulling Grips
fiber optic pulling grips light duty pulling grips junior pulling grips
heavy duty pulling grips multi-weave pulling grips whipsocks
slack pulling grips stable pulling grips nylon pulling grips
Rotating Eye Multi-weave Cable Pulling Grip/Hoisting Grip/Wire Mesh Grip/Cable Pulling Grips Applications
1. Telecom cable
2. Fiber cable
3. Coaxial cable
4. Feeder cable
5. Hybrid cable
6. Corrugated cable
7. Smooth cable
8. Braid cable
3.FAQ
1.Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings.
2.How long is the warranty ?
Our products have 12 months warranty , and the product have high quality.
3.How to get a sample?
We can send you samples for free ,but you need pay the express charge.
4.Which payment terms is available?
We accept paypal,western union,visa,escrow, payment by T/T in advance or LC.
