X Tend Ferrule Stainless Steel Cable Mesh 316L 7X7 7×19
X-Tend Ferrule Stainless Steel Cable Mesh
1.Product Description:
Stainless steel cable ferrule type mesh is also called SS ferrule mesh or X-TEND mesh. The mainly material is stainless steel cable and stainless steel ferrule. It is produced by putting the ferrules tough the cable first, and then press the ferrule using special molds. This kind of mesh has very beautiful appreance, it also has very good strength and flexibility. We can product various types of ferrule mesh in different cable diameter and mesh opening to meet our clients' requirement.
| Material | Stainless steel wire 304/316/316L |
| Wire diameter | 1.0MM-6.0MM |
| Hole size | Can be customized.depend on your requirment |
| Wire structure | 7*7,7*19 |
| Feature | 1.Lightweight, high strength. 2.Environmentally friendly and corrosion. 3.Long life, corrosion resistance. |
| Item No.s | Cable Diameter | Mesh Opening Size(W×H) | ||
| inch | mm | inch | mm | |
| JP-32120F | 1/8 | 3.2 | 4.75 x 8.23 | 120 x 207.8 |
| JP-32102F | 1/8 | 3.2 | 4 x 6.9 | 102 x 176.7 |
| JP-3290F | 1/8 | 3.2 | 3.55 x 6.15 | 90 x 156 |
| JP-3276F | 1/8 | 3.2 | 3 x5.2 | 76 x 131.6 |
| JP-3251F | 1/8 | 3.2 | 2 x3.46 | 51 x88.3 |
| JP-24102F | 3/32 | 2.4 | 4x6.9 | 102x176.7 |
| JP-2490F | 3/32 | 2.4 | 3.55x6.15 | 90x 156 |
| JP-2476F | 3/32 | 2.4 | 3 x 5.2 | 76x 131.6 |
| JP-2460F | 3/32 | 2.4 | 2.4x 4.16 | 60x 104 |
| JP-2451F | 3/32 | 2.4 | 2x3.46 | 51 x 88.3 |
| JP-2076F | 5/64 | 2.0 | 3 x 5.2 | 76 x 131.6 |
| JP-2060F | 5/64 | 2.0 | 2.4x 4.16 | 60 x 104 |
| JP-2051F | 5/64 | 2.0 | 2 x 3.46 | 51 x 88.3 |
| JP-2038F | 5/64 | 2.0 | 1-1/2 x 2.6 | 38 x 65.8 |
| JP-1676F | 1/16 | 1.6 | 1.2 x2.08 | 76 x 131.6 |
| JP-1651F | 1/16 | 1.6 | 2x 3.46 | 51 x 88.3 |
| JP-1638F | 1/16 | 1.6 | 1-1/2 x 2.6 | 38 x 65.8 |
| JP-1630F | 1/16 | 1.6 | 1.2x2.08 | 30 x 52 |
| JP-1625F | 1/16 | 1.6 | 1 x 1.73 | 25.4 x 44 |
| JP-1238F | 3/64 | 1.2 | 1-1/2x2.6 | 38 x 65.8 |
| JP-1230F | 3/64 | 1.2 | 1.2 x 2.08 | 30 x 52 |
| JP-1225F | 3/64 | 1.2 | 1 x 1.73 | 25.4 x 44 |
| JP-1220F | 3/64 | 1.2 | 4/5 x 1.39 | 20 x 34.6 |
Stainless steel cable ferrule mesh
X-Tend Ferrule Stainless Steel Cable Mesh
2. Applications:
The stainless steel cable mesh, especially the ferrule type mesh, are more used in fields like balustrades on bridges and staircases, large barrier fences, and building facade trellis systems. As an emerging product on architectural decoration and protection, stainless steel rope mesh has provided the mordern architectural decoration and horticulture engineering with a new and stylish element, which are getting more and more appreciated by designeers and clients all over the world.

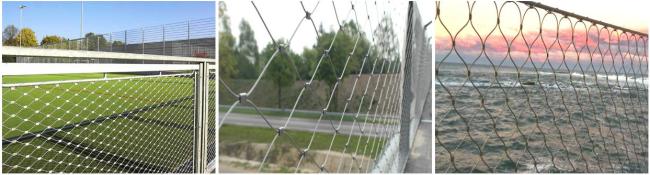

Ferrule mesh handrail infills Stainless steel cable safety mesh Stainless steel cable protection mesh

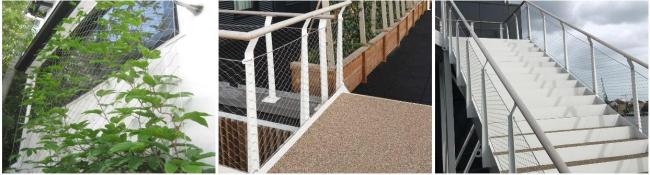

Stainless steel cable mesh green wall Ferrule mesh handrail infills Ferrule mesh handrail infills
