V1200 Refrigeration Spare Parts HVAC Vacuum Pump 12 CFM Dual Stage
V1200 Intelligent Remote HVAC Vacuum Pump 12 CFM 2 Stage Rotary Vane with Touch ScreenRefrigeration Spare Parts
Description

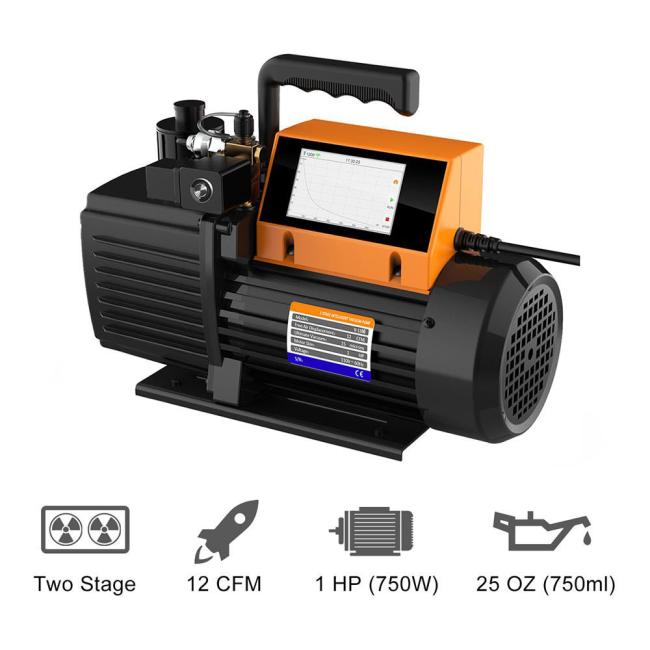

V1200 HVAC vacuum pump is a 12 CFM, dual-stage unit with an innovative touch screen design. The screen displays the data change in the graph to help you know more about how your HVAC job is going on. It enables your mobile App to connect with the pump in order to realize remote control, setting, real-time reading, and data report export conveniently.
Feature
【Intelligent Control and Prediction】Control motor and solenoid valve automatically, determine the system capacity according to the vacuum data to understand the volume of recharging refrigerants.
【Vacuum Change in Graph】View the vacuum process in real-time; Predict the leakage status and job completion time
【Monitoring data via App during the whole process of vacuuming】 Monitor data via APP during the entire vacuum process set your desired units and log interval
【Smart, Efficient & Reliable】 Constantly vacuum control, oil tank and motor temperature monitoring

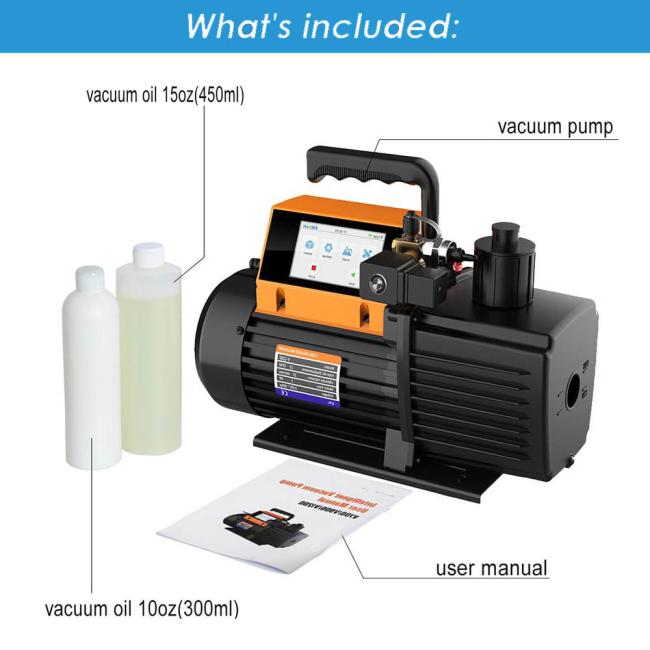

【Easy to Use】 4" touch screen, monitoring via App. Comes with 2 bottles of vacuum oil (300ml+450ml)
【Service】 1-year warranty. 30 days free & easy return
Technical Parameter
| Stage | |
| Power supply | 110V/60Hz; 220V/50Hz |
| Motor | AC induction motor |
| Speed regulation | Fixed speed |
| Vacuum accuracy |
1-10000 microns: ±10% reading/±10 microns 10000-19000 microns: ±20% reading |
| Operating temperature | 41℉-104℉(5℃-40℃) |
| Transmission distance | 30ft/10m |
| Limit vacuum | 15 microns |
| Pumping rate | 12 CFM (5L/S) |
| Motor power | 1 HP (750W) |
| Fuel volume | 22oz (650ml) |
| Dimensions | 18.5*10.5*14.8in (470*267*380mm) |
| Weight | 36.8Lbs (16Kg) |
| Air inlet | 1/4 SAE |
Product Comparision Chart
| SVP-7 | SVP-9 | SVP-12 | V700 | V900 | V1200 | |
| Pumping Rate | 7CFM(3L/S) | 9CFM(4L/S) | 12CFM(5L/S) | 7CFM(3L/S) | 9CFM(4L/S) | 12CFM(5L/S) |
| Stage | 2 | 2 | 2 | 2 | 2 | 2 |
| Limit Vacuum | 15 Microns | 15 Microns | 15 Microns | 15 Microns | 15 Microns | 15 Microns |
| Power Supply | 110V/60HZ(220V customizable) | 110V/60HZ(220V customizable) | 110V/60HZ(220V customizable) | 110V/60HZ(220V customizable) | 110V/60HZ(220V customizable) | 110V/60HZ(220V customizable) |
| Motor Power | 3/4HP(550W) | 1HP(750W) | 1HP(750W) | 3/4HP(550W) | 1HP(750W) | 1HP(750W) |
| Oil Volume | 2202(650ml) | 2202(650 ml) | 25.3oz(750ml) | 22oz(650ml) | 220z(650ml) | 25.302(750ml) |
| Pump Type | Dry Rotary Vane | Dry Rotary Vane | Dry Rotary Vane | Dry Rotary Vane | Dry Rotary Vane | Dry Rotary Vane |
| Transmission Distance | 30ft/10m | 30ft/10m | 30ft/10m | 30ft/10m | 30ft/10m | 30ft/10m |
| weight | 34.2lbs/14.5kg | 35.3lbs/15.3 kg | 36.8lbs/16kg | 34.2 lbs/14.5kg | 34.2135.31bs/15.3sks/14.5kg | 36.8lbs/16kg |
Built-in Vacuum Sensor VS Micron Gauge: Due to the different placements of vacuum sensors, the vacuum reading of the pump may vary with the micron gauge which is connected to the system. The airflow is not the same at different placements in the system when vacuuming. The air density is larger which is far away from the pump, so the readings of vacuum are high.
Oil Mist Notes:
When starting vacuuming, the pressure is relatively high, the air outlet is large. The vacuum pump has a large exhaust volume. So there will be oil mist overflowing with gas. This is a common feature of rotary vane vacuum pumps. Oil mist appears at first which is a normal phenomenon. When the vacuum drops to a very low value, the exhausting volume is small and there will be no oil mist. Therefore, the vacuum pump should regularly inspect the oil level to avoid running out of oil.
