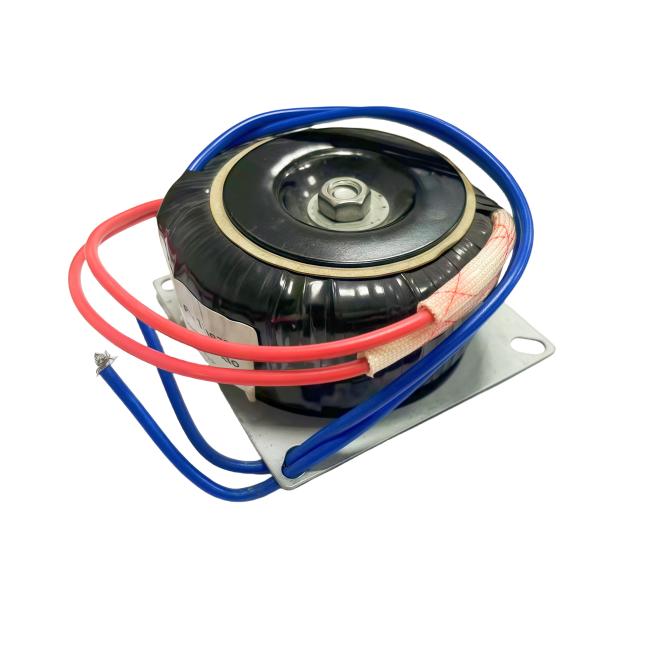

220V 50HZ With Base Plate Toroidal Transformer for Audio Amplifiers Dual AC
1.Product Description
I. Core Features
High Efficiency and Low Loss
The ring-shaped magnetic core structure minimizes magnetic resistance and leakage, achieving efficiency of over 90% and reducing energy waste, making it ideal for high-fidelity audio equipment.
Designed for 50Hz power frequency, it is compatible with domestic standard voltage (220V) and operates stably.
Low Noise and Interference Resistance
Symmetrically distributed ring coils minimize electromagnetic interference (EMI), preventing noise interference with audio signals and improving the signal-to-noise ratio (SNR).
Metal base mounting reduces mechanical vibration noise, making it suitable for environments with high silence requirements.
Dual AC Output Design
Provides two independent AC outputs, enabling simultaneous power supply to both the preamp (e.g., operational amplifier) and power amplifier circuits, supporting positive/negative power supply architectures (such as OCL amplifiers).
Flexible output voltage (common dual 12V/15V/18V, etc.) to accommodate different circuit requirements.
Heat Dissipation and Durability
The ring structure provides a large heat dissipation area with low temperature rise. Combined with the base mounting, it facilitates airflow and extends service life.
High-quality insulating materials and copper wire windings ensure high-temperature resistance and moisture protection, suitable for long-term operation.
Compact Installation
The ring-shaped design saves space, and the base includes screw holes for easy mounting inside a chassis, simplifying wiring.
II. Typical Application Scenarios
Hi-Fi Audio Amplifiers
Provides a clean power supply for Class AB/D amplifiers, reducing background noise and ensuring audio quality (e.g., DIY amplifiers, tube amplifiers).
Professional Audio Equipment
Used in audio processing equipment requiring dual power supply, such as mixing consoles, equalizers, and electronic crossovers.
Tube Amplifiers
High-voltage AC output compatible with tube circuits (requires rectification and filtering).
Laboratory Power Supply
Serves as a pre-stage transformer for linear regulated power supplies, providing adjustable DC output voltage.
2.Performance Characteristics
| Feature Category | Technical Specification | Benefit |
| Electrical Performance | • 220V 50Hz input | Clean power delivery for sensitive audio circuits |
| • Dual AC outputs (0-110V×2 or customizable) | Flexible voltage configuration | |
| • THD <0.05% | ||
| • Leakage flux <1mT | ||
| Efficiency & Loss | • No-load loss <5W | Energy saving |
| • Full-load efficiency >95% | Cool operation even at high loads | |
| • Temperature rise <40K @300W | ||
| Physical Design | • Toroidal core with vacuum impregnation | Vibration/noise reduction |
| • Base plate with rubber dampers | Easy installation | |
| • Shielded construction | EMI protection | |
| Audio Optimization | • Anti-saturation design (+30% transient current) | Dynamic power response |
| • Low-impedance windings | Minimized signal distortion | |
| • Oxygen-free copper wire | ||
| Compatibility | • CE/ROHS certified | Meets international standards |
| • Works with Class A/AB/D amps | Universal amplifier support | |
| • 300-1000W power range |
