China Fast Speed Stainless Steel Flap Barrier Turnstile 6 Groups Sensor For Banks for sale

Fast Speed Stainless Steel Flap Barrier Turnstile 6 Groups Sensor For Banks

Name: Fast Speed Stainless Steel Flap Barrier Turnstile 6 Groups Sensor For Banks
Brand: Shenzhen tianshuo technology Co.,Ltd.

Price Negotiable

Price: Negotiable

MOQ: 1 set

Delivery Time: 5-7 working days

Brand: TS

Product Description

Fast Speed Stainless Steel Flap Barrier Turnstile 6 Groups Sensor For Banks
Device Parameter:
Structure Parameter
Material: SUS304 brushed stainless steel,
top cover 2.0mm, whole body 1.5mm, Acrylic Arm

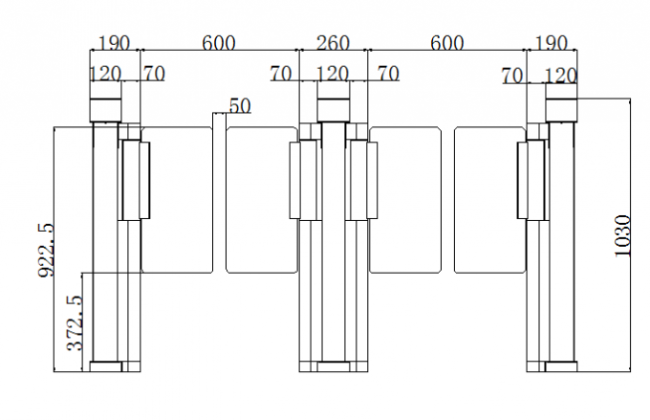

Size: L1600*W160*H1030mm
Technical Parameter

Passage Width	standard 550mm, max 1100mm
Passing Speed	35-40 personal/min
Opening Speed	Adjustable, fastest 0.3s
Working Temperature	-25℃-+70℃
Mean Cycles Between Failure	5 million times
IP Rating	IP42

Electric Parameter
Our company products are guaranteed for one year, from date of sale, providing free maintenance based on not being damaged by any man-made.
During the warranty period, all faults caused by the product itself can be maintained for free. Please carry the filled warranty card and the purchase invoice to the authorized service centers across the country or return the machine to our company for free repair.
Within the period of free maintenance, faults or damages caused by man-made or natural disasters can be maintained with additional charge.
Over the period of free maintenance, faults or damages can be maintained with additional charge. The following conditions are not under warranty:1. Damages caused by abnormal operation, man-made or natural disasters;2. Damages after disassembling any portion of the machine (lines, components etc.) ;3. Damages caused by wrong guide of non-professional technicians;4. Damages caused by adding other functions with unauthorized modification or installation with other equipment.
1.Voltage: AC110V/AC220V±10% 50-60Hz

2.Operating Power: Single Core 100w, dual core 200w

3.Driving Motor: Servo motor

4.Method of Position: Use the encoder to make sure the swing gate position

5.Communication Interface: RS485, TCP/IP interface

6.Input Signal: dry contact signal or +12V level signal or DC 12V

7.pulse signal with width of more than 100ms, driving current >10mA

8.Number of Sensor: 8 groups

Fast speed gate project cases:

FAQ:

Q1: Do you have English version system?

A: Yes, we can provide English version system. Also you can use your own system as well.

Q2: Does the equipement include control board?

A: Yes, it is with control board. But if need our system to management, need to order extra channel management control board.

Q3: Can we connect your access control system with our system?

A: Yes, we provide SDK and Software development service with connection port.

Q4: How do you do after-sale service?

A: We provide life-time technology support on line, by emails, video, phone etc. We have engineer speaking English, convenient to communicate with you directly.
