Infrared Sensor Automatic Flap Barrier RS485 Double Machine Core Entrance

Price Negotiable
Price: Negotiable
MOQ: 1 set
Delivery Time: 5-7 working days
Brand: TS
Product Description
PRODUCT DESCRIPTION

Double Machine Core Flap Barrier Gate Control Flap Barrier Gate Entrance Flap Gate

High Grade intelligent Fap Barrier Gate Access Control Factory Direct Price







Our Turnstile can combine with different kinds of access readers,like: RFID Reader&Fingerprint Reader &Coin Machine&QR code/Bar code System&ESD Tester Access Control(If you have access control system,you can only purchase our turnstiles,if not, our side will install the access control system for you),except acess system,also can use remote control.



Features and Benefits

• Use IC cards, ID cards, Bar code or magnetic cards as automatic identification system and achieve access, attendance fees or function.

• A direction indicator, showed that pedestrian access to the current status of, and guide pedestrians correct and smooth passage.

• Display has been in use for statistics and numbers

• A combination of infrared sensors and police anti-illegal entry into pedestrian access, the protection of pedestrians access smooth and the prevention of the channel following.



Communication

• Dry contact relay with 12 volt or 24 volt pulse

• Rs485, or Tcp-lp communication with computer


Product description
Technical Data Unit A221B
Passage width mm <550
Throughput rate p/m 35
Power supply V(ac) 100-240
Operational voltage V(dc) 24
Max power consumption w 35
Frequency hz 50-60
prectection level ip >44
Working temperature degree -25 to +70
Dimension excluding bars mm 1410X300X1010
Net weight including bars Kg 87

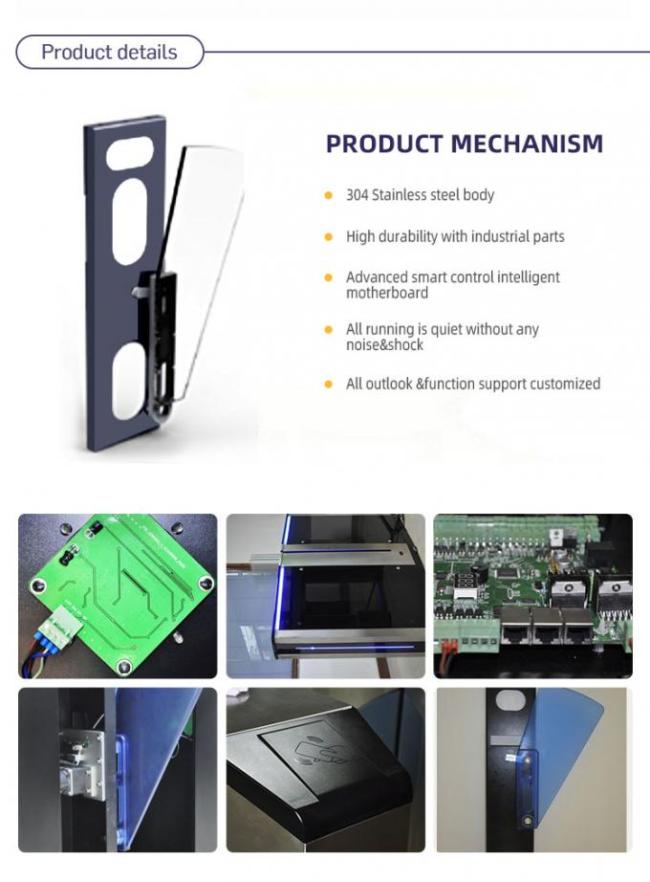

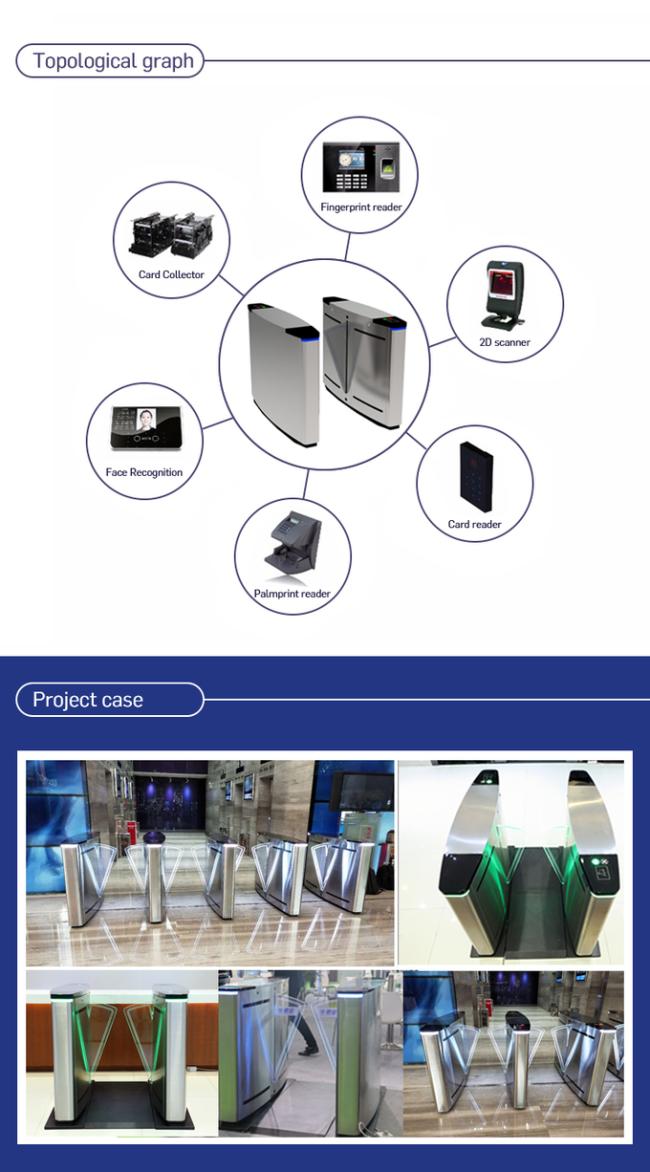

Intelligent Access Control Flap Barrier System / Pedestrian Barrier Gate 0Intelligent Access Control Flap Barrier System / Pedestrian Barrier Gate 1
