RFID DC Motor Office Security Gates Entrance Stainless Steel Anti Collision
Access Control Turnstile Speed Gate Automatic Swing Barrier Gate
Swing Barrier Brief Introduction
1. Mechanical system

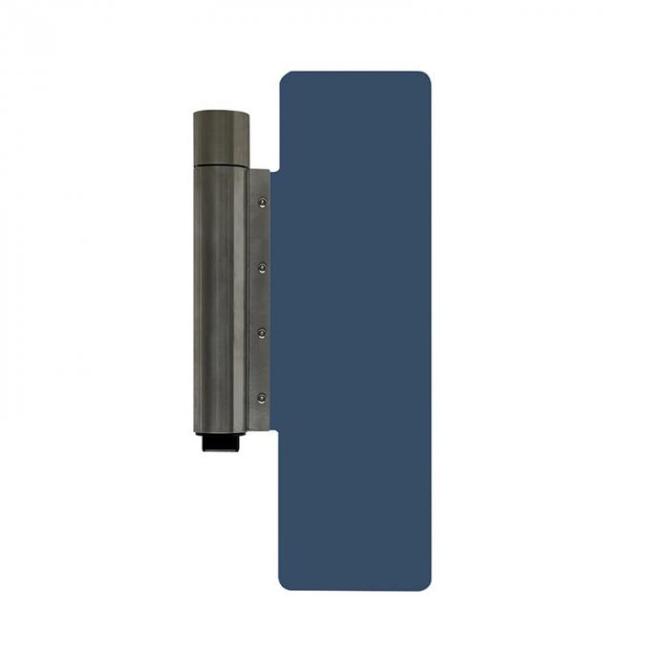

The swing barrier mechanical system includes the cabinet and the motor. On the cabinet, installs the access lights, access control devices, and infrared sensors can be installed. The motor mainly consists of DC motor, gearbox, motor brackets, transmission shaft, and wings.
2. Electric system
This system includes access control devices, a control panel, infrared sensor, access lights, alarm device, limiter, and power supply switch.
Swing Barrier Gate Technical Data
| Time for Opening or Closing | 0.2~1 seconds adjustable |
| Starting time after power on | 3 seconds |
| Automatic reset time after fault | 10 seconds |
| Transit speed | 30-40 Persons/min |
| Working Environment | Indoor / Outdoor (Shelter) |
| Working Temperature | -25℃～+70℃ |
| Relative Humidity | ≤90%, no condensation |
Speed Gate Advanced Features and Functions
1. The design is of integration of machinery and electronic structure, with special drive style, stable and reliable machinery auto-locking solution, precise worm gear, and cabinet composite structure.
2. Malfunction self-detection, which is easy for operation and maintenance;
3. Operational mode can be set up through the built-in menu on the control board;
4. Infrared photocells for anti-clamping;
5. Swing auto-reversing when meeting exterior force;
6. Audible and visual alarm in case of unauthorized access
7. Anti-collision function, the wings will auto-close if not receiving the open signal;
RFID Stainless Steel Access Control Turnstile Speed Gate Automatic Swing Barrier Gate Sw Office Entrance Gate
