7m 500kg Remote Control Scissor Lift Hydraulic No Self Power 2100*830mm Table Size
lifting height 7m Hydraulic Scissor Lift Platform
Hydraulic Scissor Lift Platform Introduction:
Hydraulic lifting platform is a kind of multi-functional lifting and unloading mechanical equipment. Hydraulic lifting platform is divided into: four-wheel mobile lifting platform, two-wheel traction lifting platform, automobile modified lifting platform, hand-push lifting platform, hand-cranking lifting platform, AC and DC dual-purpose lifting platform, battery vehicle-mounted lifting platform , The lifting height varies from 1 meter to 30 meters.
Hydraulic Scissor Lift Platform Features:
the user can control the mechanical lifting and walking without getting off the lifting table, and can control the equipment to drive to other working places on the table. The equipment itself has walking and steering drive functions, no manual traction, no external power supply. Flexible and convenient movement, making aerial work more convenient and fast, is the ideal aerial work equipment for efficient and safe production of modern enterprises.
Self Propelled Hydraulic Scissor Lift Platform Specification:
| Hydraulic |
HSG80/45
1
|
| Power | 1.5KW 220V 50HZ single phrase |
|
Scissor pole
|
120*60*4mm rectangular tube
|
|
Chassis
|
100*50*4mm rectangular tube
|
| Tire | 400-8 pneumatic tires |
| Outtrigger |
100*50*4mm rectangular tube matching
|
| Electrical control box brand | Delixi |
| form of control |
Up and down control. The control part is equipped with emergency stop safety to protect property and personal safety to the greatest
extent. Each operating part uses 24V safety control voltage
|
|
Hydraulic oil
|
32# Great Wall anti-wear hydraulic oil
|
| Limite switch | Brand:Shanghai People |
| Lifting speed |
4-6 m/min, adjustable descending speed
|
| Certificate | CE |
| Color | blue |
| Guaranteed | 1 year |
Hydraulic Scissor Lift Platform Application:
The hydraulic lifting platform can be customized according to user requirements. It is used in high-altitude operation and maintenance of factories, automatic warehouses, parking lots, municipal works, docks, construction, decoration, logistics, electricity, transportation, petroleum, chemical industry, hotels, gymnasiums, industrial and mining, enterprises, etc. The lifting system of the lifting platform is driven by hydraulic pressure, so it is called a hydraulic lifting platform.
The hydraulic lifting platform is suitable for various industrial enterprises and production lines such as automobile, container, mold manufacturing, wood processing, chemical filling, etc. With various control methods (split, linkage, explosion-proof), it has the characteristics of stable and accurate lifting, frequent starting, and large load capacity, which effectively solves the difficulties of various lifting operations in industrial enterprises and makes production operations easy.

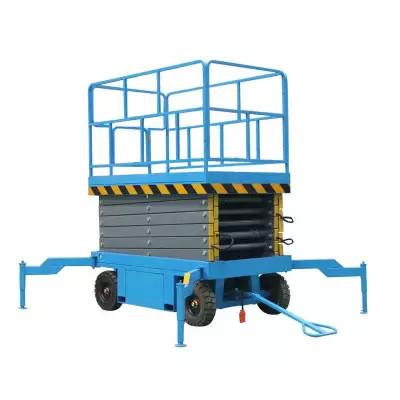

Hydraulic Scissor Lift Platform Photos:
