Downflow Design Cartridge Filter Dust Collector Machine For Sand Blast Workshop
Product Description
1. Applied advanced downflow design and cartridge horizontal insertable layout, in this way dust collector shows good performance in dust cleaning job.
2. Dust baffle plate setup in the dust-laden air intake, in the role of cushion and durable layer, approaches-avoidance of high-speed impact to filter cartridge, thereby extend the life of them.
3. Cartridges 15 C tilt drawer-style installation, enables more convenient remove. And no setup of transmission parts inside the dust collector, which means maximum cutting of maintenance cost. In terms of general dust, there can be no replacement of filter cartridges for a lone time, in the case of saving burdensome work of frequently changing comparing with filter bags, and also a huge reduction of maintenance costs.
4. Modular portfolio, the size of dust collector could be optional to cusotmers’ requirement.
5. The size could be expanded on basis of existing portfolio by increasing dust removal unit, without many changes of original equipment.
If a standard model does not meet your surface preparation requirement, we will develop a tailor-made blast machine design for you.
. Advantages :

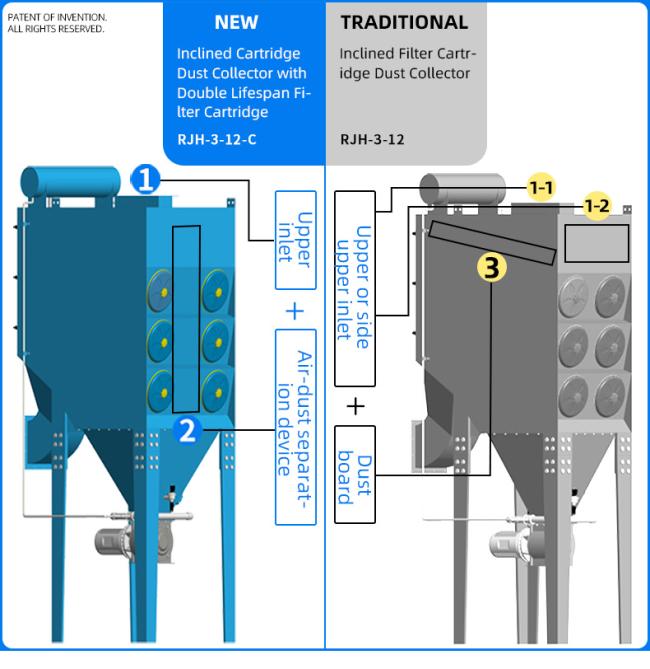

2-1. The air inlet mode of “upper inlet + air-dust separation” structure.
(1) 100% of the huge energy obtained by the dust speeding through pipeline is converted and used for pre dust collection and
uniform load distribution.
(2) High pre dust collection efficiency, ranging from 50-70%. Coarse, medium, small and part of the fine particles is pre
collected, and only part of the fine, micro-fine, and ultra-fine particles is collected by filter fiber.
(3) High uniform load distribution efficiency, ≥98%.
(4) The average service life of the filter cartridge has been doubled, and even more than or equal to triple the original
lifespan.
2-2. Fixed mode of filter cartridge
(1) The 10°-20° horizontal upward inclination of the filter cartridges does not cause blockage to any of the filtercartridges
(there is no coarse, medium, small or part of the fine particles ).
(2) The filter cartridges are tightly stacked vertically, which cause a ≥10% decrease in the overall area utilization rate (The
dust blown by the upper filter cartridge partially falls on the the lower filter cartridge inevitably ).
(3) Combining the above two issues, the unusable area of the filter cartridge is ≥10%, and the overall use efficiency is ≤90%.
Main applications
-
storing silos and bunkers
-
conveyors transfer points
-
coal handling
-
truck unloading
-
steel & slag
-
mining & quarrying
-
grinding mills, polishing shops
-
foundry plant
Specification
Cartridge Dust Collector help you provide a clean and safe industrial workplace. We have varied solutions depending on your product and application. The technologies we offer include: baghouse collectors, pulse jet collectors, cartridge dust collectors and high efficiency cyclones. From the fan to the ductwork to the collector we can assist you.
Dust collector of our company is an equipment automatically collect dry dust or dry powder.it is widely used to boiler ,filter gases tiny, non-fibrous dry-dust or dried powder recovered in the process as a dust removal equipment.
The cleaning procedure occurs on a row-by-row basis therefore only a fraction of total dust collector filter air is interrupted for cleaning allowing continuous ventilation.
The dust cake when pulsed from the filter cartridges falls directly into the bucket at the bottom where it is removed.
The dirty or contaminated air enters the dust collector through the inlet and passes through a number of filter cartridges/Bags (before the contaminated Air passes through the Filter Bag/Cartridge; baffle plate works as a protecting layer to control/retain heavy particles, which protects filter bags/cartridges to get in touch with heavy particles and damage caused by it) which retain the dust particles on the exterior surface while allowing clean air to pass through the outlet. As the collector operates, the collected dust begins to form dust cake, which eventually diminishes the porosity of the filter cartridges. As the pressure drop
increases the ventilation volume of the collector decreases. To maintain a moderate pressure drop, the cleaning cycle is employed to provide continuous cleaning of the filter Bags/cartridges. The cleaning system consists of a Sequential time controller, which actuates Solenoid Valve and the Compressed Air Header. These Compressed Air Header momentary burst or pulse of high pressure compressed air through the blow pipe into the dust collector tube. This Pulse of air creates reverse flow of air, which expands the filter cartridges to remove the dust collector dust.
FAQ
1. whether your equipment have passed some international standard?
Now the quality of our shot blasting machine has met ISO9001 ISO14001 CE International Standard.
2.How long is your equipment warranty?
General the warranty is 1 year.(except quick-wear spare parts)
3.Whether your company can supply installation?
Online or on-site installation.
4. How long is your delivery time?
Generally it is within 7 days if the goods are in stock. Or it is 10-15 days if the goods are not in stock,it is according to quantity.
5. What capacity of we can supply?
We can as your needs to professional design.
