Overcharge Protection Integrated BMS Short Circuit Protection 50A
Product Description:

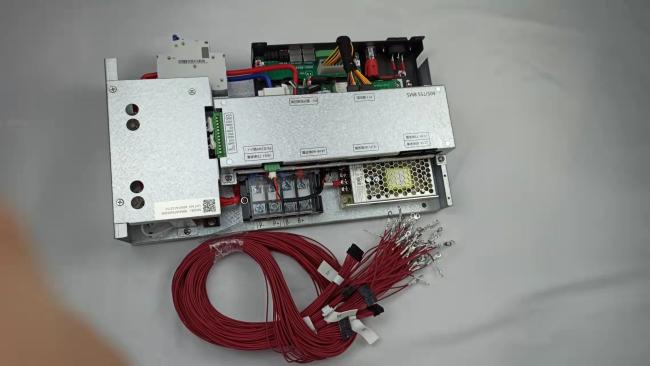

Integrated BMS is a master-slave type battery management system (BMS) consisting of a 30S, 60S and 75S BMS to meet the needs of various battery packs. It features a wide voltage range of 96V to 240V and an operating temperature range of -20℃ to +60℃. The reverse connection protection and balancing current of 200mA ensure that the battery pack is safe and secure. With a wide range of applications, the Integrated BMS is an ideal solution for battery management.
Features:
- Product Name: Integrated BMS
- Battery Type: LFP/NMC/LTO
- 60S BMS
- Master Slave BMS
- GCE BMS
- Overdischarge Protection: Yes
- Communication Protocol: CAN/RS485/LAN/Dry Contact
- Size: 150mm*100mm*50mm
- Operating Temperature: -20℃~+60℃
Technical Parameters:
| Parameter | Value |
|---|---|
| Size | 150mm*100mm*50mm |
| Battery Type | LFP/NMC/LTO |
| Reverse Connection Protection | Yes |
| Charging Current | 50A |
| Voltage Range | 96V-240V |
| Overcharge Protection | Yes |
| Communication Protocol | CAN/RS485/LAN/Dry Contact |
| Balancing Current | 200mA |
| Short Circuit Protection | Yes |
| Overdischarge Protection | Yes |
| Product Name | 30S Integrated BMS, high voltage BMS(HV BMS) |
Applications:
GCE's RBMS07S60S50A Integrated BMS is a 30S BMS and a 75S BMS integrated together, designed to provide reverse connection protection, overcharge protection, balancing current, and an operating temperature between -20℃~+60℃. This product comes with a minimum order quantity of 5, weighs 10KG, and is certified by IEC. The price for each unit is usd 540/pcs, and the packaging details are 560*560*170mm. The delivery time is 15days and the payment terms are 100% TT. GCE is capable of supplying 1000pcs of the RBMS07S60S50A every month.
Customization:
GCE's Integrated BMS (model: RBMS07S60S50A) provides reliable high voltage protection and monitoring for your devices. With a minimum order quantity of 5, this 60S BMS is certified to IEC standards and comes with optional communication protocols (CAN/RS485/LAN/Dry Contact). The reverse connection protection feature, along with the compact size (150mm*100mm*50mm) makes it a great choice for those looking for an integrated BMS.
Price: USD 540/pcs | Delivery Time: 15days | Payment Terms: 100% TT | Supply Ability: 1000pcs/month | Packaging Details: 560*560*170mm | Discharging Current: 50A | Weight: 10KG
Place of Origin: Changsha China
Support and Services:
- 24/7 technical support for all Integrated BMS products
- On-site maintenance services
- Remote support and troubleshooting
- Software installation and upgrades
- Hardware repair and replacement
- Training services
- Comprehensive user manuals and online help guides
- Free product support for up to 1 year
Packing and Shipping:
Integrated BMS is packaged in a standard cardboard box with proper cushioning material to ensure safe delivery. The box will also include the product manual and other supporting documents.
The product is shipped with a reliable courier company and tracking details will be shared with the customer as soon as the shipment is dispatched.
FAQ:
- Q1: What is the Brand Name of the product?
- A1: The Brand Name of the product is GCE.
- Q2: What is the Model Number of the product?
- A2: The Model Number of the product is RBMS07S60S50A.
- Q3: Where is the Place of Origin of the product?
- A3: The Place of Origin of the product is Changsha, China.
- Q4: What is the Minimum Order Quantity of the product?
- A4: The Minimum Order Quantity of the product is 5.
- Q5: What is the Price of the product?
- A5: The Price of the product is USD 540/pcs.
