1. Application

PV power plant storage

Island off-grid energy storage

Industrial and commercial/household energy storage

Micro-grid applications

UPS power supply

Power System 220V DC power supply

2. Product Features

1. Advanced battery management system -- highly integrated battery management system can realize seamless monitoring.

2. Perfect self inspection and operation status detection function, combined with HMI display screen, the system operation information is clear at a glance.

3. Perfect and reliable system control and protection strategies to fully ensure the safety of the battery and escort the extension of the service life of the battery pack.

4.Modular design, configurable and expandable -- multiple energy storage units can be flexibly combined to expand into a larger energy storage system, and can support up to 160 batteries in series.

5. Rich communication interfaces -- RS485, CAN, Ethernet, dry contact input and output interfaces, supporting communication with most PCS/Inverter/UPS and monitoring servers on the market.

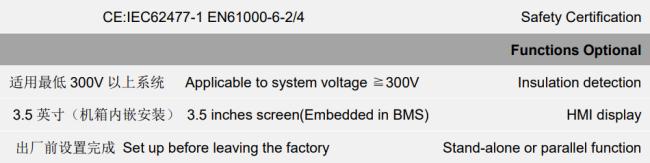

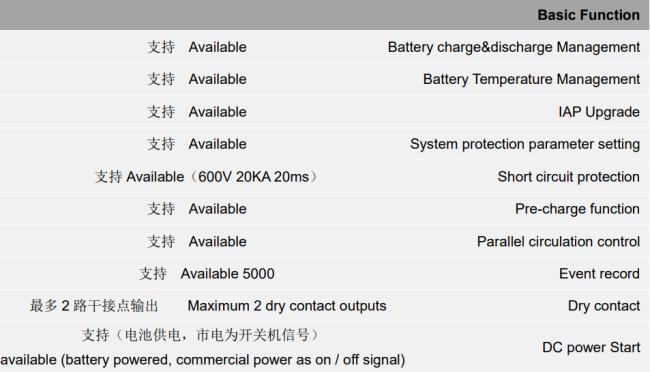

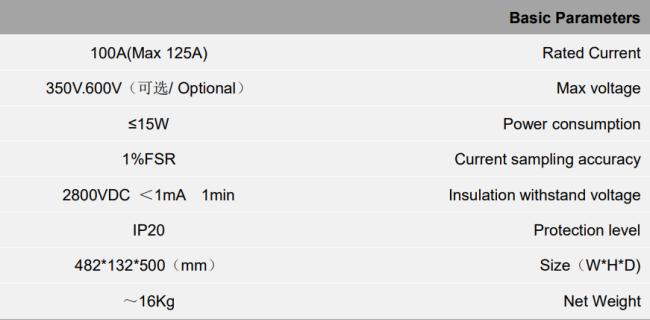

3. BMS Main technical parameters
