GCE Master BMS 204.8V 160A Battery Management System With 16S BMU For ESS Energy Storage Systems
GCE Master BMS 204.8V 160A Battery Management System With 16S BMU For ESS Energy Storage Systems
GCE has over 10 years of experience in high voltage BMS R&D and manufacturing in China. The BMS voltage up to 1500V, mainly used for LFP, NMC, and LTO batteries in applications such as UPS, residential, commercial & industrial energy storage system.
BMS Configuration
64S 204.8V 160A high voltage BMS(HV BMS) * 1set

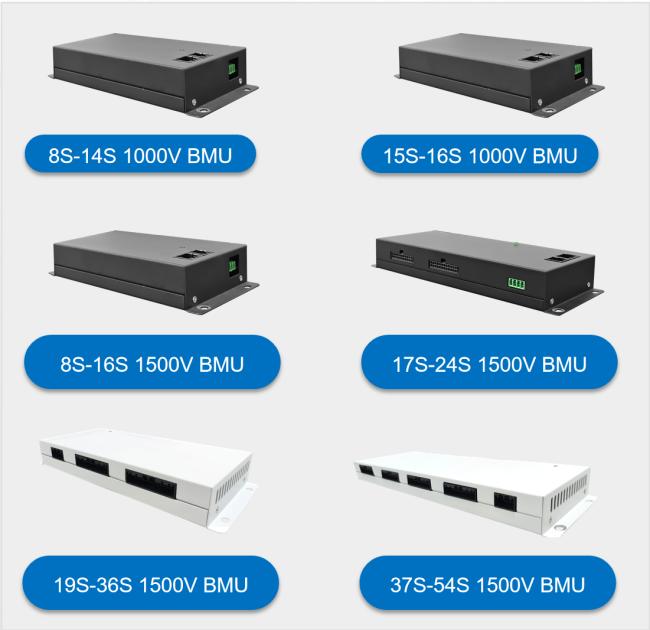

16S BMU * 4sets
16S wire harness *4sets
(16S 51.2V battery module,4 modules in series for 64S 204.8V 160A system)
*Support multiple BMS in parallel to achieve higher capacity
Application
Battery Energy Storage System(BESS)
Off-grid energy storage
Solar Power System
Photovoltaic farm
Data Center
UPS System
Battery Pack
 |
Specification
|
Product Name
|
high voltage BMS(HV BMS), UPS BMS, Relay BMS |
|
Model no.
|
RBMS-S20-160A204.8V
|
|
protecting method
|
MCCB+Contactor
|
|
Current
|
160
|
|
Voltage Range
|
120V-1000V
|
|
Current Sampling Accuracy
|
1.0%FSR
|
|
Communication interface with PCS
|
RS485/CAN
|
|
Communication interface with BMU
|
CAN
|
|
Communication interface with SBMS
|
RS485/CAN
|
|
Communication with monitoring software/EMS
|
Ethernet
|
|
Support IAP upgrade
|
Yes
|
|
Support HMI display and parameter
|
Yes(Optional)
|
|
Insulation detection
|
Yes(Optional)
|
|
High voltage power module
|
Support DC start (optional)
|
|
Dry contact output (normally open)
|
Up to 3
|
|
Maximum qty of BMUs
|
13
|
|
Power
|
24VDC(18~28V)
|
|
Power consumption
|
≤20W
|
|
Size(W*H*D)mm
|
4U (440*133*500)
|
|
Way out
|
Front
|
|
Tap center
|
Not support
|
|
Net weight
|
28kg
|
Products Display
Shippment
By Air
By Sea
By express: EMS, TNT, UPS, Fedex, DHL
We can arrange shipment as your request.
FAQ
Q. What is your MOQ?
A: one unit.
Q. How long is the lead time?
A: If in stock,ship within 3 business days.If out of stock, 15-20 days depending on requirement and quantity.
Q. How is your warranty?
A: 3-years.
Q. What is the difference between smart BMS and non-smart BMS?
A: Smart BMS can be connected PC, RS485, CAN. You can see battery information real time.
Q. What specification of BMS do you have ?
A: 96V-1000V 50A~500A for LFP,NCM.LTO Batteries.
Integrated BMS: 96V-240V 50A / 100A
2U BMS: 120V-500V, 50A / 100A
3U BMS:120V-700V, 125A
4U BMS: 120V-1500V, 160A / 250A
5U BMS: 120V-1000V, 400A /500A
6U BMS: 120V-1500V, 400A /500A
