GCE 75S 100A 240V High Voltage Master Slave Integrated BMS for Energy Storage and Solar Systems
Price:
CN¥3,988.81
MOQ:
5
Delivery Time:
Negotiable
Brand:
GCE
Product Description
GCE 75S 100A High Voltage BMS Master and Slave All in One
Comprehensive Battery Management System for Energy Storage Power Stations, UPS, and Solar Battery Storage Systems
Product Overview
GCE brings over 10 years of high voltage BMS R&D and manufacturing expertise from China. Our BMS systems support voltages up to 1500V and are designed for LFP, NMC, and LTO batteries in UPS, residential, commercial, and industrial energy storage applications.
Key capabilities include multiple parallel connections, configurable two-level or three-level architecture, and compatibility with applications ranging from KWh to MWh scale. GCE BMS integrates seamlessly with leading inverter brands including Deye, Kehua, Sofar, Growatt, Sinexcel, ATESS, Sungrow, Goodwe, Megarevo, and Voltronic power.
Technical Specifications
| Parameter | Specification |
|---|---|
| System Operating Voltage Range | 120-370 VDC |
| Rated Current | 50A / 100A |
| Start-up Method | DC Start |
| Balancing Type | Passive Resistance Equalization |
| Balancing Current | 100mA ± 10mA (when single cell voltage 3.50V) |
| Temperature Sampling Accuracy | ± 2℃ |
| Voltage Sampling Accuracy | Single cell voltage ±20mV |
| CAN Communication | 1 channel (communication with PCS/UPS) |
| RS485 Communication | 1 channel (communication with host computer / PCS / UPS) |
| Display Method | 6-digit LED indicator (1 fault, 1 running, 4 SOC power) |
| HMI Display | 3.5" display (optional) |
| Short Circuit Protection | 7.5KA 20ms |
| Maximum Overload Capacity | 50A system: 70A/10S 100A system: 150A/10S |
| Parallel Function | Supports parallel use (maximum 7 sets in parallel) |
| Warning Level | 1 level |
| Protection Level | Level 1: Cut off charging/discharging Level 2: Cut micro-break switch and power down system |
| Power Consumption | ≤10W |
| Size | 409*232*86mm |
| Weight | 4.5kg |
| Insulation Withstand Voltage | 1800VDC 1mA 1min |
| Compliance | Conforms to CE standards |
| Operating Ambient Temperature | －20～60℃ |
| Operating Ambient Humidity | <90 RH(40℃±2℃) |

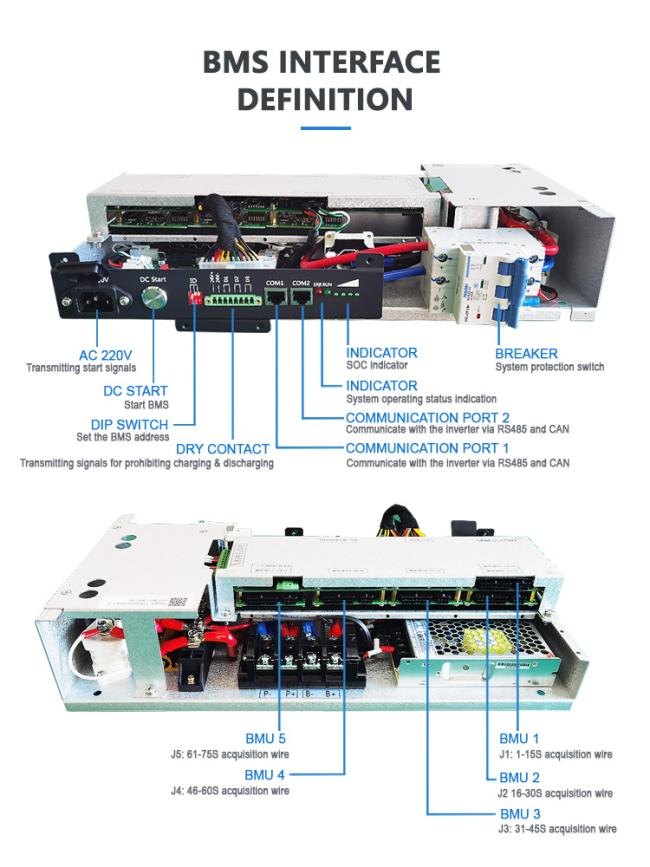

30S-75S Integrated BMS Series
Voltage range: 96V-240V
Current options: 50A / 100A
Communication: CAN & RS485
Design: Master & slave all in one configuration
Voltage Acquisition Wiring
Standard lengths: 600mm, 900mm, 1200mm
Temperature Acquisition Wiring
Standard lengths: 600mm, 900mm, 1200mm
Each 15S wire includes 3 temperature sensing probes. Total probes: 12 in 60S systems, 15 in 75S systems.
Company Profile
Hunan GCE Technology Co., Ltd. (GCE) is a high-tech company specializing in BMS and battery energy storage system R&D and production for over 10 years. Our products serve industrial, commercial, and home energy storage markets.
Our 30s to 75s BMS products feature master-slave integrated design with relay solutions, meeting lithium battery requirements for multiple strings of small capacity batteries while reducing user costs.
For larger applications, our 60s-405s systems employ master-slave three-level architecture to meet series and parallel requirements for high-capacity single lithium batteries up to 1500V.
Stackable Home Energy Storage Systems (7.68KWh-40.96KWh) support 3-8 HV battery modules in series, featuring compact design, lightweight construction, plug-in embedded modules, and built-in smart BMS for easy installation and maintenance.
Customer Reviews
Frequently Asked Questions
Are you a manufacturer or a trading company?
We are a manufacturer with over 10 years of R&D experience in production, and we sincerely welcome you to visit our factory.
Can I get some samples?
Yes, sample orders are available for quality checking and market testing.
What kind of cells are applicable to this Battery Management System?
LFP, NMC, LTO etc.
How about the delivery time?
Lead-time typically takes 15 to 20 working days based on order specifications and quantity.
What are your terms of payment?
Advanced T/T is our main payment term, with other payment terms negotiable. Contact us for details.
What are your warranty terms?
3 years for RBMS and 1 year for BMU/PCBs.
Can you produce BMS with customization requirements?
Yes, OEM & ODM services are available.
How does your factory do regarding quality control?
Quality always comes first. All products undergo strict quality control from incoming materials through assembly. Each product is tested before packing and shipping.
What is the voltage range supported by GCE High Voltage BMS?
GCE High Voltage BMS supports voltage ranges from 96V to 864V.
What is the current capacity range available for GCE High Voltage BMS?
Current options include 50A, 125A, 160A, 250A, 400A, and 500A to accommodate various system requirements.
Which inverters are compatible with GCE BMS?
GCE BMS supports CAN & RS485 protocols and is compatible with most well-known inverter brands including DEYE, Growatt, Goodwe, Sofar, Sungrow, Kehua, ATESS, Megarevo, Sinexcel, Pylontech, Solis, and Sermatec.
Packaging and Shipping
| Shipping Methods | Arrive At | Delivery From |
|---|---|---|
| By Sea | Sea port you want | Any port in China |
| By Air | Airport you want | Any port of China |
| By Railway | Your door | Any railway station |
| By Express | Your door | Changsha City |
Packing list: Integrated BMS, voltage & temperature acquisition wire
