GCE High Voltage 32S102.4V 100A Lifepo4 Battery Management System for Energy Storage and UPS
Price:
CN¥3,393.99-3,995.81
MOQ:
2
Delivery Time:
Negotiable
Brand:
GCE
Product Description
GCE High Voltage BMS 32S102.4V 100A Lifepo4 Battery Management System
GCE High Voltage BMS 32S102.4V 100A Lifepo4 Master BMS battery management system designed for Energy Storage Systems, UPS, and Lithium Batteries.
With over 10 years of experience in high voltage BMS R&D and manufacturing in China, GCE offers BMS solutions up to 1500V for LFP, NMC, and LTO batteries. Applications include UPS, residential, commercial, and industrial energy storage systems. GCE BMS supports multiple parallel connections and configurable two-level or three-level architectures, suitable for applications ranging from KWh to MWh. Compatible with leading inverter brands including Deye, Kehua, Sofar, Growatt, Sinexcel, ATESS, Sungrow, Goodwe, Megarevo, and Voltronic power.
Technical Specifications
| Basic Parameters | Specifications |
|---|---|
| System operating voltage range | 120-370 VDC |
| Rated current | 50A / 100A |
| Start-up method | DC start |
| Balancing type | Passive resistance equalization |
| Balancing current | 100mA ± 10mA (when single cell voltage 3.50V) |
| Temperature Sampling accuracy | ± 2℃ |
| Voltage sampling accuracy | Single cell voltage ±20mV |
| Communication mode | CAN: 1 channel (communication with PCS/UPS) RS485: 1 channel (communication with host computer / PCS / UPS) |
| Display method | 6-digit LED indicator (including 1 for fault indication, 1 for running indication, and 4 for SOC power indication) |
| HMI display | 3.5" display (optional) |
| Host computer software | Available |
| Short circuit protection | 7.5KA 20ms |
| Maximum overload capacity | 50A system transients: 70A/10S 100A system transients: 150A/10S |
| Parallel function | Support parallel use (maximum 7 sets in parallel) |
| Warning level | 1 level |
| Protection level | Level 1 cut off charging/discharging Level 2 cut the micro-break switch and power down the system |
| Power consumption | ≤10W |

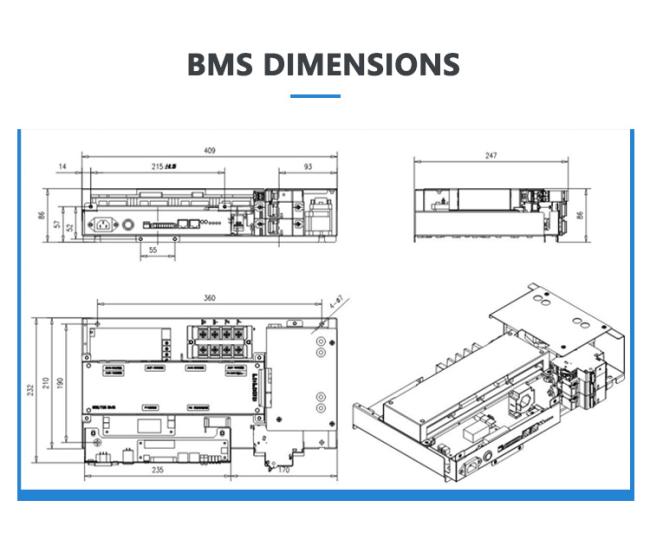

| Size | 409*232*86mm |
| Weight | 4.5kg |
| Insulation withstand voltage | 1800VDC 1mA 1min |
| Compliance with national standards | Conforms to CE standards |
| Operating ambient temperature | －20～60℃ |
| Operating ambient humidity | <90 RH(40℃±2℃) |

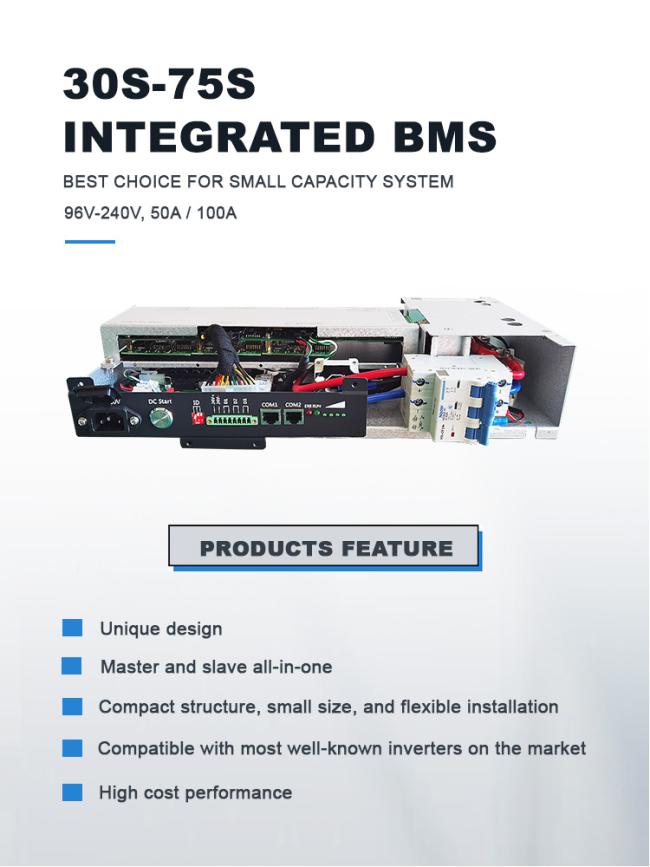

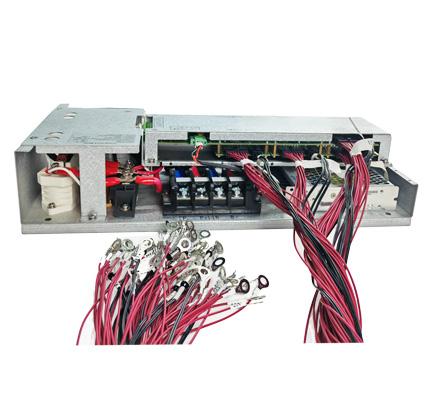

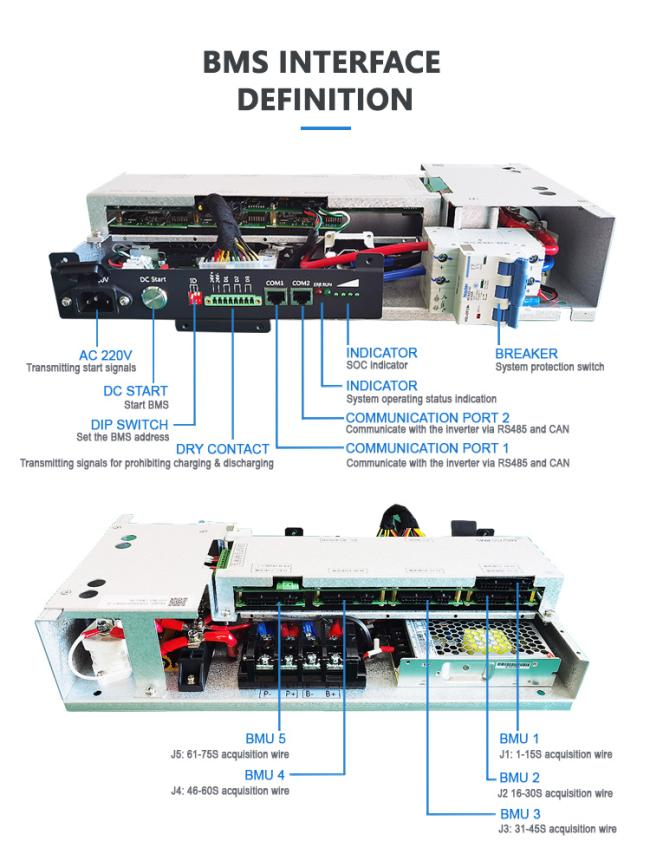

30S-75S Integrated BMS
- Voltage range: 96V-240V
- Current: 50A / 100A
- Communication: CAN & RS485
- Design: Master & slave all in one

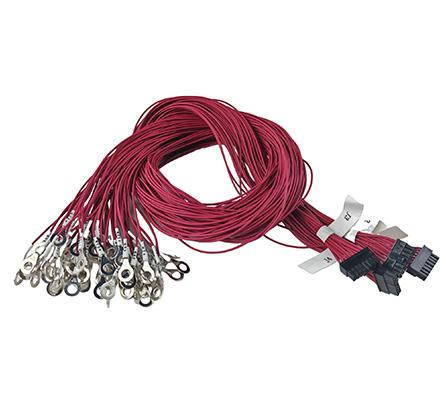

Voltage Acquisition Wire
Standard lengths: 600mm, 900mm, 1200mm

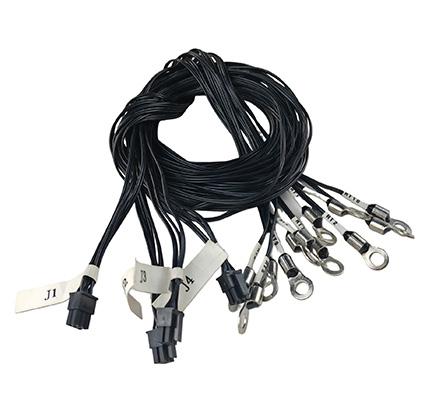

Temperature Acquisition Wire
Standard lengths: 600mm, 900mm, 1200mm

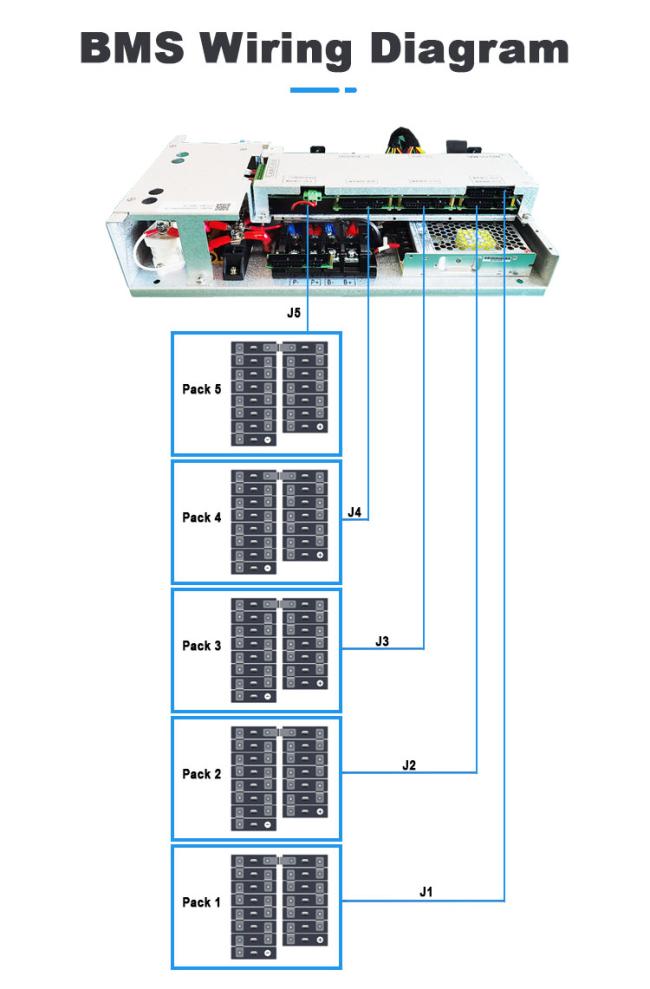

There are 3 temperature sensing probes per 15S wires. In total, there are 12 probes in 60S and 15 probes in 75S.
Company Introduction
Hunan GCE Technology Co., Ltd. (GCE) is a high-tech company specializing in the R&D and production of BMS and battery energy storage systems for over 10 years. Our products are mainly used for industrial & commercial energy storage and home energy storage.
30s to 75s BMS adopts master-slave integrated design and relay solution to meet the lithium battery demand of multiple strings of small capacity batteries, greatly reducing user costs.
60s-405s systems use master-slave three-level architecture, meeting series and parallel requirements for high-capacity single lithium batteries within 1500V.
7.68KWh-40.96KWh Stackable Home Energy Storage System supports 3-8 HV battery modules connected in series. Features include small volume, light weight, plug-in embedded design modules, built-in smart BMS, and easy installation and maintenance.

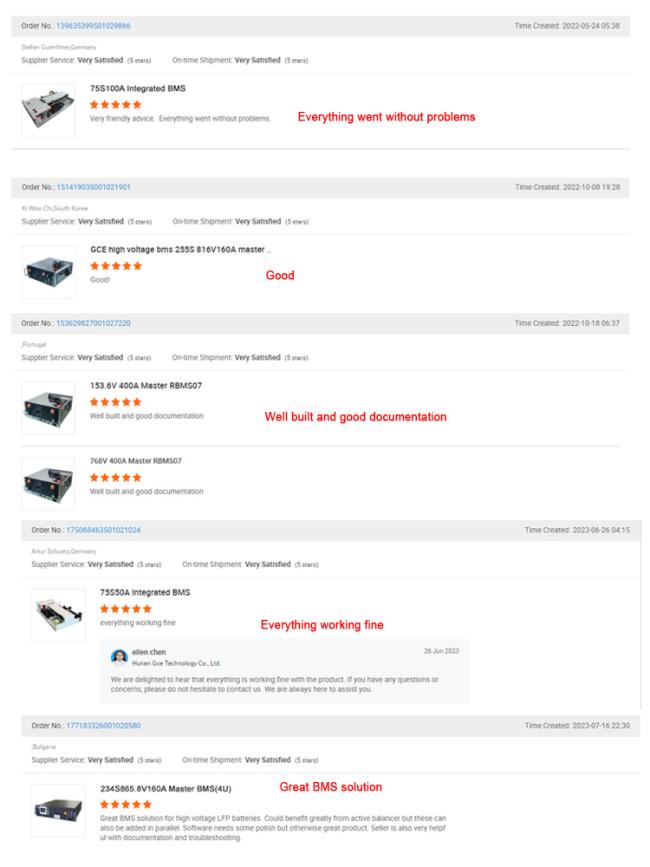

Customer Reviews
Frequently Asked Questions
Are you a manufacturer or a trading company?
We are a manufacturer with over 10 years of R&D experience in production, and we sincerely welcome you to visit our factory.
Can I get some samples?
Yes, a sample order is available for quality checking and market testing.
What kind of cells are applicable to this Battery Management System?
LFP, NMC, LTO etc.
How about the delivery time?
The lead-time usually takes about 15 to 20 working days accordingly to the specification of your order and quantity.
What are your terms of payment?
Advanced T/T is the main payment term, and other payment terms are negotiable. Please contact us for the details.
What are your warranty terms?
3 years for RBMS and 1 year for BMU/PCBs
Can you produce BMS with customization requirements?
Yes, OEM & ODM service is acceptable.
How does your factory do regarding quality control?
Quality always comes first. All our products go through strict quality control processes from incoming material to the assembling process. Each product will be tested before packing & shipping.
What is the voltage range supported by GCE High Voltage BMS?
GCE High Voltage BMS supports a voltage range from 96V to 864V.
What is the current capacity range available for GCE High Voltage BMS?
GCE High Voltage BMS offers current options of 50A, 125A, 160A, 250A, 400A, and 500A to accommodate various system requirements.
Which inverters are compatible with GCE BMS?
GCE BMS supports CAN & RS485 protocols and it is compatible with the protocol of most well-known inverter brands in the market, such as DEYE, Growatt, Goodwe, Sofar, Sungrow, Kehua, ATESS, Megarevo, Sinexcel, Pylontech, Solis Sermatec.
Packaging and Shipping
| Shipping Methods | Arrive At | Delivery From |
|---|---|---|
| By Sea | Sea port you want | Any port in China |
| By Air | Airport you want | Any port of China |
| By Railway | Your door | Any railway station |
| By Express | Your door | Changsha City |
Packing list: Integrated BMS, voltage & temperature acquisition wire
