GCE 256V 250A Lifepo4 High Voltage BMS for LiFePo4 BESS UPS Off Grid Solar Battery Energy System
Price:
$1,253-1,375
MOQ:
2
Delivery Time:
Negotiable
Brand:
GCE
Product Description
GCE 256V 250A LiFePO4 Battery Management System
Master BMS for LiFePO4 BESS, UPS, and Off-Grid Solar Battery Energy Systems
About GCE Technology
GCE has over 10 years of experience in high voltage BMS R&D and manufacturing in China. Our BMS systems support voltages up to 1500V and are primarily used for LFP, NMC, and LTO batteries in applications including UPS, residential, commercial, and industrial energy storage systems.

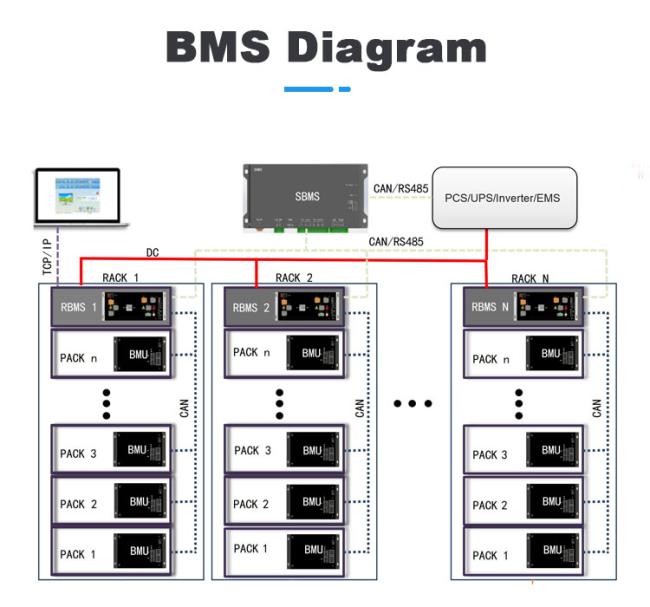

GCE BMS supports multiple parallel connections and can be configured as a two-level or three-level architecture, making it suitable for a wide range of applications from kWh to MWh. Our systems are compatible with leading inverter brands including Deye, Kehua, Sofar, Growatt, Sinexcel, ATESS, Sungrow, Goodwe, Megarevo, and Voltronic Power.
Technical Specifications
| Basic Parameters | |
|---|---|
| Max Current | 125A / 160A / 250A (Optional) |
| Rated Voltage | 350V / 700V / 1000V (Optional) |
| Power Consumption | ≤15W |
| Current Sampling Accuracy | 1% FSR |
| Insulation Withstand Voltage | 2800VDC <1mA 1min |
| Protection Level | IP20 |

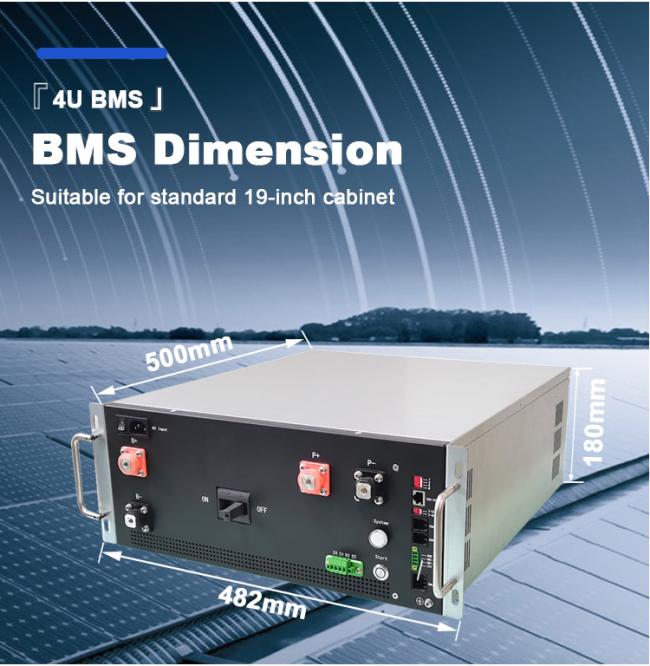

| Dimensions (W×H×D) | 482 × 180 × 500 (mm) |
| Net Weight | ~22Kg |

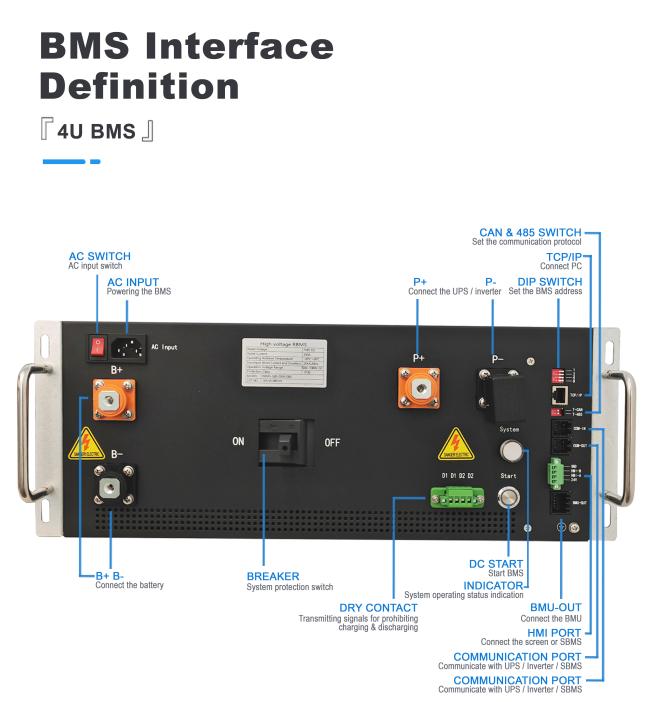

| Communication Ports | |
| Communication with BMU | CAN |
| Communication with UPS | RS485/CAN |
| Communication with SBMS | RS485/CAN |
| PC Software Communication | Ethernet |
| Basic Functions | |
| Battery Charge & Discharge Management | Supported |
| Battery Temperature Management | Supported |
| IAP Upgrade | Supported |
| System Protection Parameter Setting | Supported |
| Short Circuit Protection | Supported (6KA 20ms) |
| Precharge Function | Supported |
| Parallel Loop Current Control | Supported |
| Event Record | Supported (5000 records) |
| Middle Line System | Supported (Optional) |
| Dual Power Supply | Supported |
| Optional Functions | |
| Monitor Insulation | Optional |
| HMI Display | 3.5", 7" display (optional, external) |
| Standalone or Parallel | Set-up completed before leaving factory |
| Dry Contact | 2 dry contact outputs (optional) |
| Other Specifications | |
| Color | RAL9005 black sand grain |
| Operating Temperature | -20℃ to 60℃ |
| Operating Humidity | 5% to 75% RH |
| Compliance Standards | GB/T 16935.1, GB/T 17626.2, GB/T 17626.5 |
| Certification | CE |
Company Profile
Hunan GCE Technology Co., Ltd. (GCE) is a high-tech company specializing in the R&D and production of BMS energy storage systems and batteries for over 10 years. Our products are primarily used for industrial, commercial, and home energy storage applications.
Our product range includes:
- BMS 30-75S: Integrated design with relay solution for multiple strings of small capacity batteries
- 60S-405S: Three-tier architecture supporting series and parallel requirements of single high-capacity lithium batteries up to 1500V
- 7.68KWh-40.96KWh Stackable Home Energy Storage System: Supports 3-8 HV battery modules connected in series with compact design and built-in Smart BMS

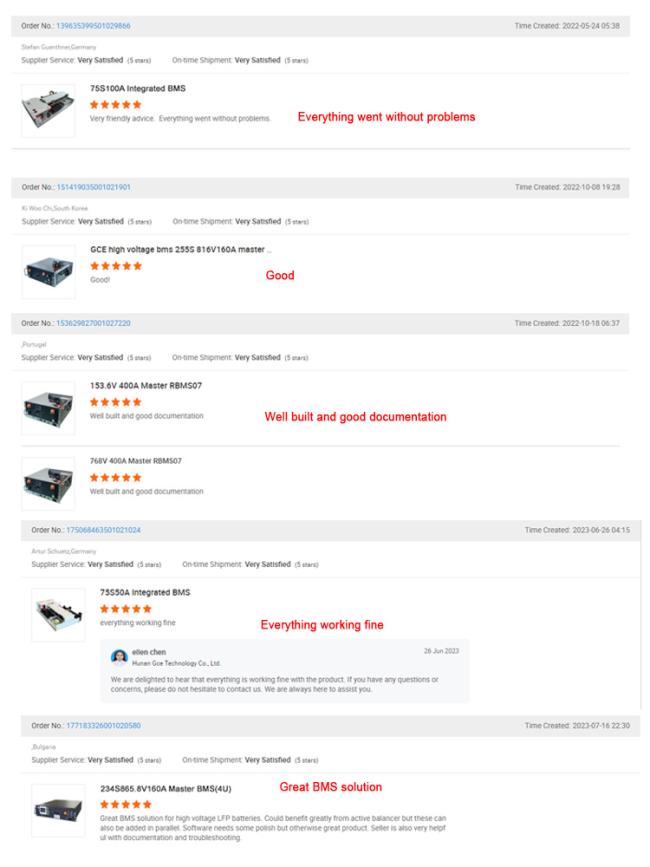

Customer Reviews
Frequently Asked Questions
Are you a manufacturer or a trading company?
We are a manufacturer with over 10 years of R&D experience in production, and we sincerely welcome you to visit our factory.
Can I get some samples?
Yes, a sample order is available for quality checking and market testing.
What kind of cells are applicable to this Battery Management System?
LFP, NMC, LTO etc.
How about the delivery time?
The lead-time usually takes about 15 to 20 working days according to the specification of your order and quantity.
What are your terms of payment?
Advanced T/T is the main payment term, and other payment terms are negotiable. Please contact us for details.
What are your warranty terms?
3 years for RBMS and 1 year for BMU/PCBs
Can you produce BMS with customization requirements?
Yes, OEM & ODM service is acceptable.
How does your factory do regarding quality control?
Quality always comes first. All our products go through strict quality control processes from incoming material to the assembling process. Each product is tested before packing & shipping.
What is the voltage range supported by GCE High Voltage BMS?
GCE High Voltage BMS supports a voltage range from 96V to 864V.
What is the current capacity range available for GCE High Voltage BMS?
GCE High Voltage BMS offers current options of 50A, 125A, 160A, 250A, 400A, and 500A to accommodate various system requirements.
Which inverters are compatible with GCE BMS?
GCE BMS supports CAN & RS485 protocols and is compatible with most well-known inverter brands including DEYE, Growatt, Goodwe, Sofar, Sungrow, Kehua, ATESS, Megarevo, Sinexcel, Pylontech, Solis, and Sermatec.
Packaging and Shipping
| Shipping Methods | Arrive At | Delivery From |
|---|---|---|
| By Sea | Sea port you want | Any port in China |
| By Air | Airport you want | Any port of China |
| By Railway | Your door | Any railway station |
| By Express | Your door | Changsha City |

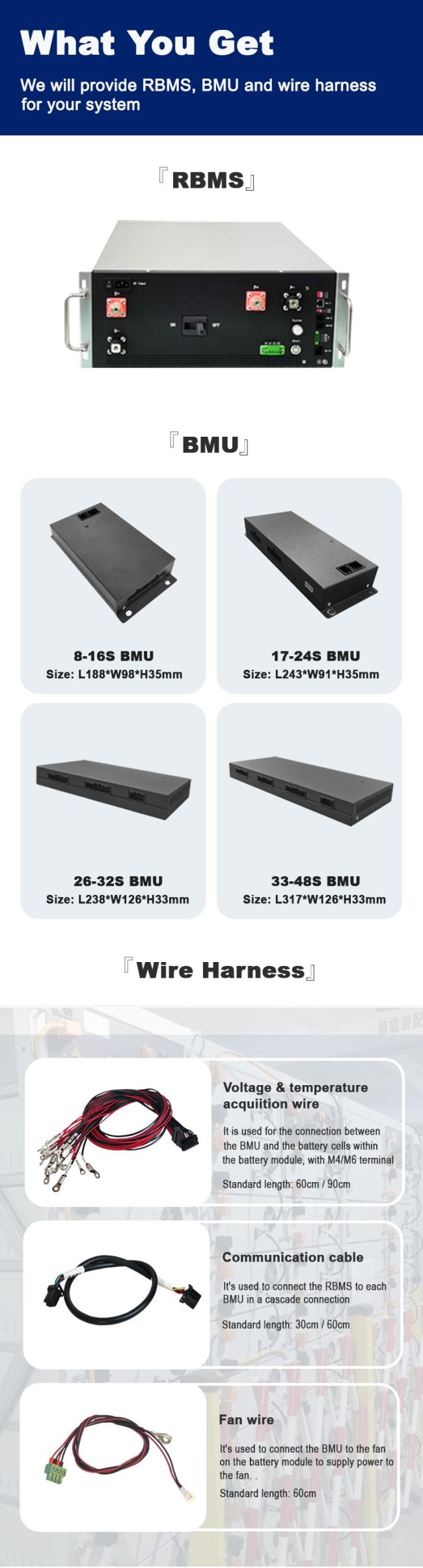

Packing list: 4U BMS, voltage & temperature acquisition wire, fan wire and communication cable.
