336V 125A High Voltage BMS with Master Slave Design for Lifepo4 Battery and Solar Energy Systems
Price:
$1,359-1,469
MOQ:
2
Delivery Time:
Negotiable
Brand:
GCE
Product Description

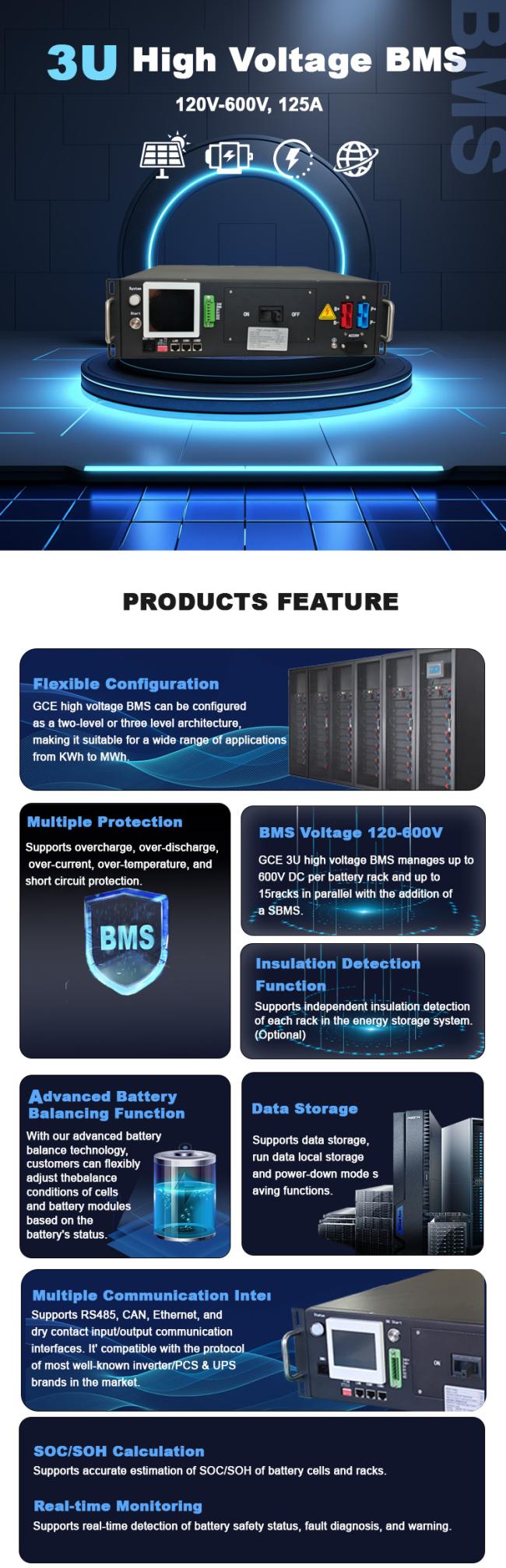

336V 125A LiFePO4 Battery Management System
High voltage BMS for LiFePO4 batteries, lithium batteries, and solar energy applications
GCE brings over 10 years of expertise in high voltage BMS research, development, and manufacturing in China. Our BMS systems support voltages up to 1500V and are primarily designed for LFP, NMC, and LTO batteries in UPS, residential, commercial, and industrial energy storage applications.

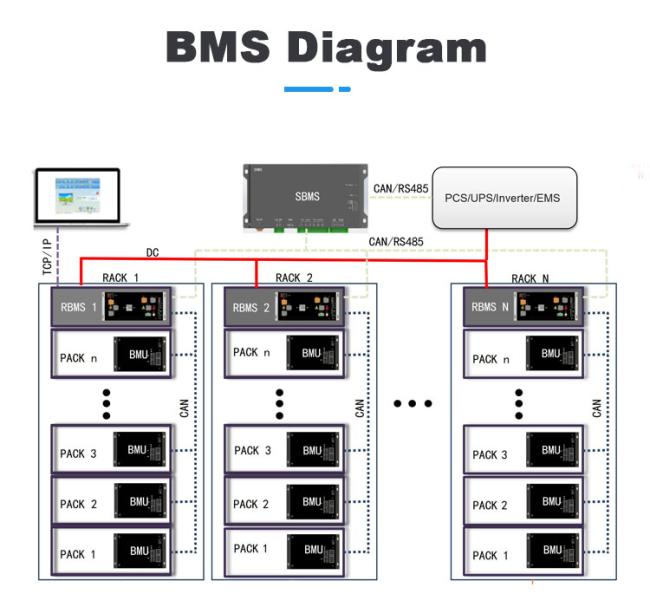

GCE BMS supports multiple parallel connections and can be configured as two-level or three-level architecture, making it suitable for applications ranging from KWh to MWh scale. The system is compatible with leading inverter brands including Deye, Kehua, Sofar, Growatt, Sinexcel, ATESS, Sungrow, Goodwe, Megarevo, and Voltronic power.
Technical Specifications
| Basic Parameters | |
|---|---|
| Max current | 125A |
| Rated voltage | 350V / 600V (Optional) |
| Power consumption | ≤15W |
| Current sampling accuracy | 1%FSR |
| Insulation withstand voltage | 2800VDC ＜1mA 1min |
| Protection level | IP20 |

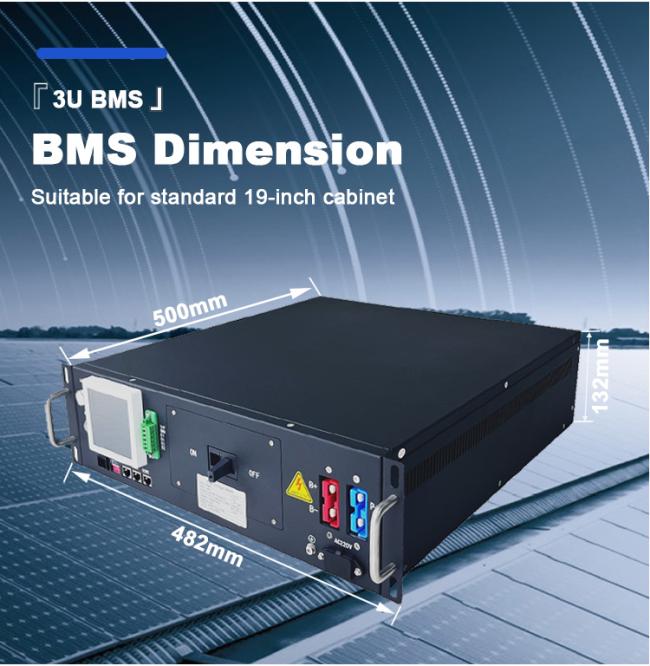

| Dimension (W*H*D) | 482 * 132 * 500 (mm) |
| Net weight | 16Kg |
| Communication Port | |

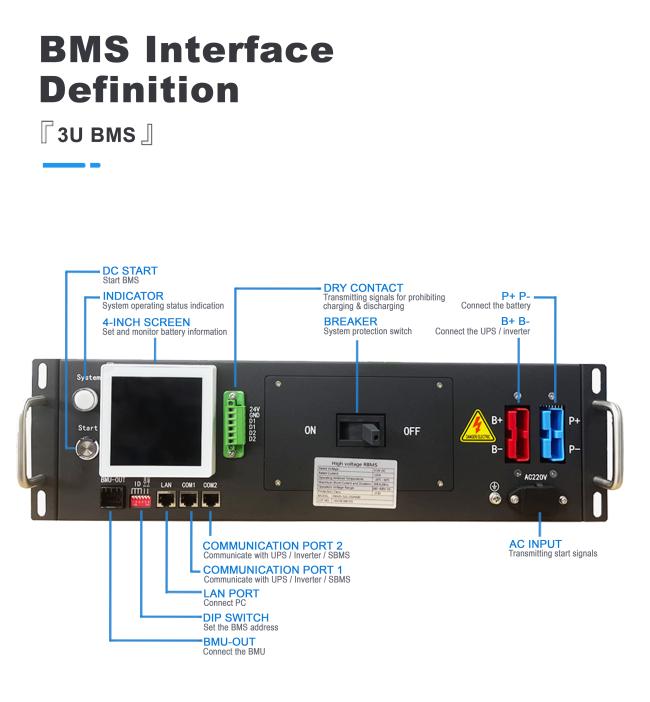

| Communication port with BMU | CAN |
| Communication port with UPS | RS485/CAN |
| Communication port with SBMS | RS485/CAN |
| Communicate with PC software | Ethernet |
| Basic Functions | |
| Battery charge & discharge management | Support |
| Battery temperature management | Support |
| IAP upgrade | Support |
| System protection parameter setting | Support |
| Short circuit protection | Support (6KA 20ms) |
| Precharge function | Support |
| Parallel loop current control | Support |
| Event record | Support 5000 records |
| Middle line system | / |
| Dual power supply | Support |
| Optional Functions | |
| Monitor insulation | ≥300V (Optional) |
| HMI display | 4-inch (built-in) |
| Parallel | Support up to 15 RBMS in parallel |
| Dry contact | 2 dry contact outputs (optional) |
| Others | |
| Color | Black |
| Installation | Suitable for standard 19-inch cabinet |
| Inlet and outlet line method | Front side in and front side out |
| Operating ambient temperature | -20℃~60℃ |
| Operating ambient humidity | 5%~75%RH |
| Compliance with national standards | GB/T 16935.1 GB/T 17626.2 GB/T 17626.5 |
| Safety compliance certification | CE |
About GCE Technology
Hunan GCE Technology Co., Ltd. (GCE) is a high-tech company specializing in the research, development, and production of BMS energy storage systems and batteries for over 10 years. Our products are primarily used for industrial, commercial, and home energy storage applications.
Our product portfolio includes:
- BMS 30-75S: Integrated design with relay solution for multiple strings of small capacity batteries
- 60S-405S: Three-tier architecture supporting series and parallel configurations for high-capacity lithium batteries up to 1500V
- 7.68KWh-40.96KWh Stackable Home Energy Storage System supporting 3-8 HV battery modules connected in series
Our systems feature compact designs, lightweight construction, plug-in built-in modules, smart BMS technology, and easy installation and maintenance.

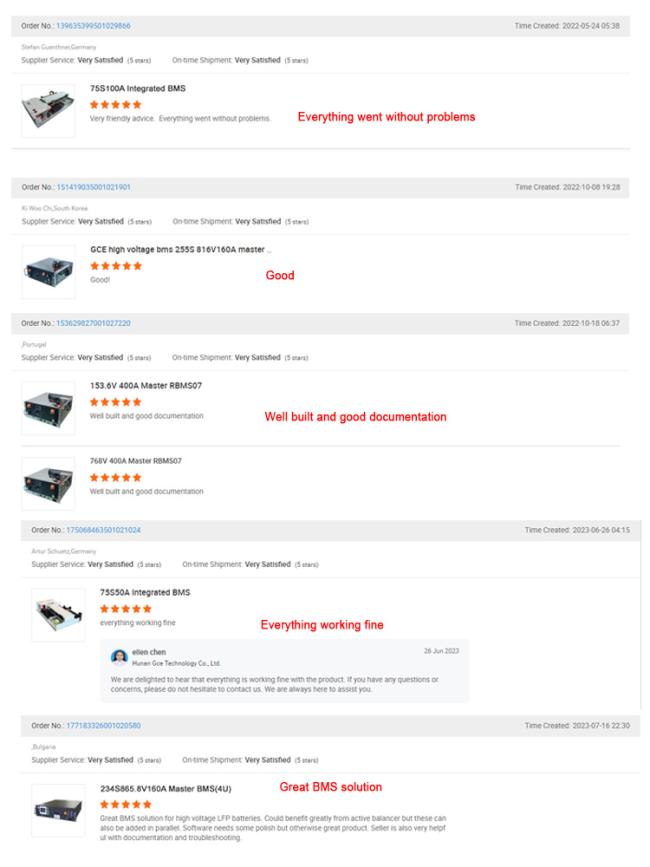

Customer Reviews
Frequently Asked Questions
Are you a manufacturer or a trading company?
We are a manufacturer with over 10 years of R&D experience in production, and we sincerely welcome you to visit our factory.
Can I get some samples?
Yes, a sample order is available for quality checking and market testing.
What kind of cells are applicable to this Battery Management System?
LFP, NMC, LTO etc.
How about the delivery time?
The lead-time usually takes about 15 to 20 working days accordingly to the specification of your order and quantity.
What are your terms of payment?
Advanced T/T is the main payment term, and other payment terms are negotiable. Please contact us for the details.
What are your warranty terms?
3 years for RBMS and 1 year for BMU/PCBs
Can you produce BMS with customization requirements?
Yes, OEM & ODM service is acceptable.
How does your factory do regarding quality control?
Quality always comes first. All our products go through strict quality control processes from incoming material to the assembling process. Each product will be tested before packing & shipping.
What is the voltage range supported by GCE High Voltage BMS?
GCE High Voltage BMS supports a voltage range from 96V to 864V.
What is the current capacity range available for GCE High Voltage BMS?
GCE High Voltage BMS offers current options of 50A, 125A, 160A, 250A, 400A, and 500A to accommodate various system requirements.
Which inverters are compatible with GCE BMS?
GCE BMS supports CAN & RS485 protocols and it is compatible with the protocol of most well-known inverter brands in the market, such as DEYE, Growatt, Goodwe, Sofar, Sungrow, Kehua, ATESS, Megarevo, Sinexcel, Pylontech, Solis Sermatec...
Packaging and Shipping
| Shipping Methods | Arrive AT | Delivery From |
|---|---|---|
| By Sea | Sea port you want | Any port in China |
| By Air | Airport you want | Any port of China |
| By Railway | Your door | Any railway station |
| By Express | Your door | Changsha City |

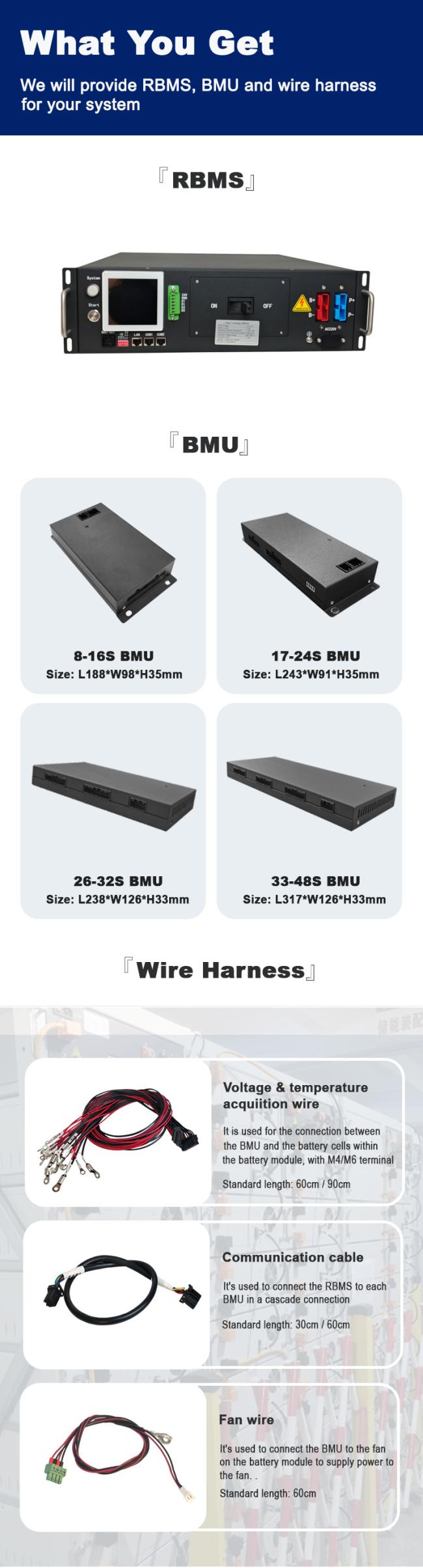

Packing list: 4U BMS, voltage & temperature acquisition wire, fan wire and communication cable.
