Infrared Touch All In One Whiteboard 86 Inch 4K LED Customized Color
86 Inch 4K LED Infrared Multi Touch Monitor Display Smart Interactive Whiteboard
Features & Advantages:
1. Safe: The LCD screen panel is made of safety explosion-proof tempered glass.No sharp edges and corners.
2. Myopia prevention: Blue light electromagnetic interception technology and Nano coating patent technology.Can anti-blue and purple,anti glare,anti-glare, antistatic,ect.
3. Wide view: Use S-PVA (Super-Patterned Vertical Alignment ) & S-IPS technology. About 178 degree viewing angel ,can be viewed from all angles.
4. High definition: Built-in LED panel with high brightness, high contrast.
5.Touchable:Five-dimensional 10 points zero delay touch screen with infrared sensing technology. Support at least 16 persons to write at the same time.
6. Support 9 kinds of touch gestures:
1) It can quickly called out the bottom central control convenient menu without any help of the button and remote control.it can achieve signal switching by touch,volume adjustment,scaling,brightness,contrast,one-key energy-saving
2) It can hide by tap when do not need this function and will not occupied display area.
7. Easy to use:
1) Built-in fan free Industrial level OPS computer host.Mute design, easy plug and pull ,without any link line.About 10 seconds to boot, it is more stable to storage data.
2) Using front multifunctional button and computer USB interface for copy files easier.
8. Strong signal: Built-in dual upgraded version WIFI Module.
9. Adopt 3D High-fidelity speaker system:
1) Can be used for teaching,meeting,singing song,playing games,watching movie,ect.
2) In the case of one-click energy saving and turning off the backlight of the machine, you can still listen to music/voice (can be used as a separate microphone or you can use the sound amplification function).
10. Energy saving: With one-key energy-saving button & Knocking wake up function.Low power consumption, low radiation, energy efficiency.
Products Description/Technical Parameters:
|
LCD Display |
|
|
Screen type |
LED |
|
Size |
86 inch |
|
Screen Proportion |
16:9 (W: H) |
|
Resolution |
3840*2160 |
|
Brightness |
450cd/m2 |
|
Contrast |
4000:1 |
|
View Angle |
178° |
|
Service life |
60000h |
|
Touch Screen |
|
|
Touch screen type |
IR touch (10 points) |
|
Minimal touch component |
3mm*3mm |
|
Resolution |
32768 x 32768 |
|
Response Time |
4ms |
|
Surface hardness |
Mohs 7 |
|
Transmittance |
Clear glass≥95%,Anti-dazzle glass≥80(optional) |
|
Glass thickness |
4mm Toughened glass |
|
Anti dazzle |
Granularity<0.2um ,Reflectivity<2% |
|
Durability |
Single click life 6000 times |
|
operating system |
WIN7/WIN8/WIN10/Android |
|
Power supply system |
USB |
|
PC Configuration |
|
|
Standard configuration |
CPU : Intel i3 ;RAM:4G;HDD:128G;With WIFI |
|
Advanced configuration |
Optional |
|
Android OS |
|
|
CPU |
Optional |
|
GPU |
Optional |
|
RAM |
Optional |
|
SD card |
Support MAX 128GB SD card |
|
Other parameters |
|
|
Voltage Frequency |
AC:100~240V 60/50HZ |
|
Power Consume |
100W-150W |
|
Accessories |
Remote control,Instructions,Power line ,Touch pen |
|
Warranty |
12 months |
|
Options |
Wall hanging bracket (Default), Moving Support (Option),RAM: 4G and 8G (Option). CPU: I5,I7(Option), |

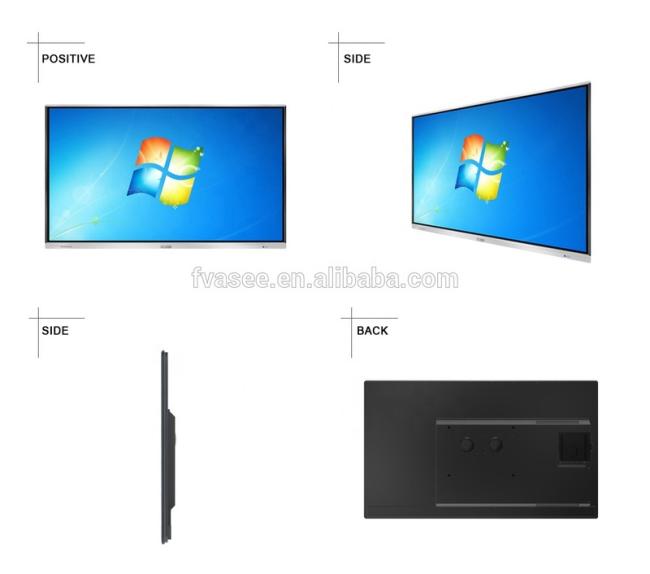

Product Photos
Click here for more information
