CKS Two Way Wedge Ovrrunning Clutch For Printing Brush Machinery

Production introduction

CKS is Two way SPRAG TYPE ovrrunning clutch;

Working as BACKSTOP Application ;

Usually used on Printing machine, Packing machine, Hoisting machine, Lifting transportation machinery, etc .

The CKS type two-way wedge overrunning clutch has a shaft hole at one end connected to the driving shaft and a shaft hole at the other end connected to the driven shaft. When the outer ring does not move and the driving shaft rotates clockwise or counterclockwise, the driven shaft also rotates synchronously. When the driven shaft is affected by external torque, it cannot rotate clockwise or counterclockwise. It is often matched with ball screw pair or other components, as an anti reversal mechanism, and can also be used alone as the transmission of positioning, transmitting torque or cutting torque. It is used in the mechanical transmission of printing machinery, packaging machinery, hoisting and transportation machinery, various non-standard equipment and test bench

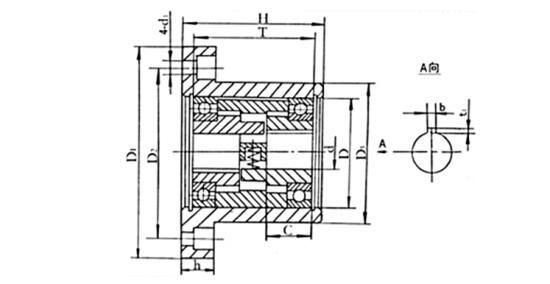

Products Parameters
