CKZ-C One Side Clutch Bearing Cam Clutch Wedge Type For Packing Conveyer
Price:
Negotiable
MOQ:
1 pcs
Delivery Time:
5-10working days
Brand:
Tianniu
Product Description
CKZ-C Wedge type One Way Clutch Bearing For Packing And Conveyer
Production introduction
CKZ-C series is a wedge type one-way clutch, which contains two sets of ball bearing supports. According to different needs, the factory contains lubricating oil or grease.
The inner ring and the shaft, the outer ring and the workpiece are connected by keys, and the workpiece is clamped by the end caps.
Commonly used in textile, chemical, food, packaging, printing and other mechanical equipment. Used as an overrunning or positioning feed clutch
Types CKZ-F are sprag type freewheels self-contained, sealed and bearing supported, using two ball bearings.
Units are delivered oil or grease lubricated according to the type. It is a Formsprag USA design that uses tall sprags with multi-radius active surfaces. Designed specially for large size freewheels to compensate for any eccentricity due to bearing wear.
We can supply any bore size between the minimum and maximum specified in the table, including imperial sizes.
Units are delivered oil or grease lubricated according to the type. It is a Formsprag USA design that uses tall sprags with multi-radius active surfaces. Designed specially for large size freewheels to compensate for any eccentricity due to bearing wear.
We can supply any bore size between the minimum and maximum specified in the table, including imperial sizes.

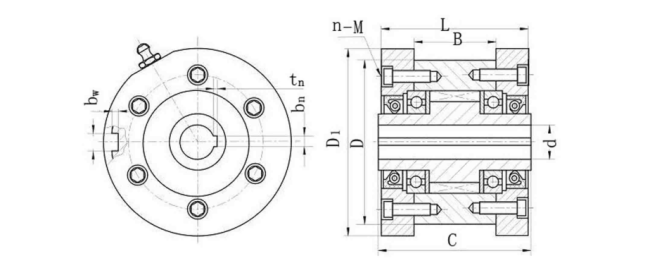

Products Parameters
| TYPE |
RATED TORQUE [N·m] |
OVERRUNNING SPEEDS [r/min] |
DIMENSION IN MM |
WEIGHT [kg] |
|||||||||
| OUTER RACE | INNER RACE |
OTHER SIZE |
|||||||||||
|
INNER RACE |
OUTER RACE |
D [h7] |
B | n-M | bw×tw |
d [H7] |
C | bn×tn | D1 | L | |||
| CKZ-C1262 | 92 | 840 | 510 | 62 | 26 | 6-M5 | 4×2.5 | 12 | 50 | 4×1.8 | 70 | 48 | 0.95 |
| CKZ-C1568 | 115 | 840 | 510 | 68 | 26 | 6-M6 | 4×2.5 | 15 | 50 | 4×1.8 | 76 | 48 | 1.13 |
| CKZ-C2075 | 158 | 700 | 425 | 75 | 27 | 6-M5 | 5×3.0 | 20 | 51 | 4×1.8 | 83 | 49 | 1.40 |
| CKZ-C25100 | 448 | 630 | 340 | 100 | 33 | 6-M8 | 6×3.5 | 25 | 57 | 6×2.8 | 104 | 55 | 3.07 |
| CKZ-C30120 | 530 | 560 | 340 | 120 | 35 | 6-M8 | 12×5 | 30 | 63 | 12×3.3 | 130 | 61 | 4.68 |
| CKZ-C35130 | 920 | 490 | 255 | 130 | 37 | 6-M8 | 12×5 | 35 | 65 | 12×3.3 | 140 | 63 | 5.75 |
| CKZ-C40140 | 1516 | 420 | 212.5 | 140 | 43 | 6-M8 | 12×5 | 40 | 74 | 12×3.3 | 150 | 72 | 7.67 |
| CKZ-C45150 | 1500 | 420 | 212.5 | 150 | 48 | 6-M8 | 14×5.5 | 45 | 78 | 14×3.8 | 160 | 76 | 9.74 |
| CKZ-C50170 | 2350 | 350 | 170 | 170 | 51 | 6-M8 | 16×6.0 | 50 | 84 | 16×4.3 | 180 | 82 | 13.34 |
| CKZ-C60190 | 3100 | 280 | 170 | 190 | 55 | 6-M8 | 18×7.0 | 60 | 94 | 18×4.4 | 200 | 92 | 17.71 |
| CKZ-C80200 | 3960 | 210 | 127.5 | 200 | 60 | 6-M10 | 18×7.0 | 80 | 98 | 18×4.4 | 210 | 96 | 19.98 |
| CKZ-C110250 | 7000 | 180 | 110 | 250 | 104 | 8-M8 | 32×11 | 110 | 146 | 32×7.4 | 262 | 144 | 50.21 |
| CKZ-C110320 | 10000 | 130 | 80 | 320 | 115 | 8-M20 | 28×10 | 110 | 180 | 28×6.4 | 330 | 175 | 81.98 |
