ANSI B16.9 5D Pipe Bends Hot Induction Seamless Schedule 80 Pipe Elbows
Schedule 80 Hot Induction 5D Seamless Carbon Steel Pipe Bend
Description:
What is Schedule 80 Hot Induction 5D Seamless Carbon Steel Pipe Bend?
Bend is the most common used butt weld fittings to change the direction of pipelines. 5D refers to the radius, D is the diameter of pipes. So 5D means a bend which radius is three times the diameter.
Steel pipe bend is a bending pipe that used to change the pipeline direction. Common use radius bend in 3D bend and 5D bend.
It is similar to pipe elbow, but differently, pipe bend is longer than elbow and usually manufactured for the specific needs.
Pipe bending radius: 3D bend, 5D bend, 6D, 8D and customized
Bending degree: 15°, 22.5°, 30°, 45°, 60°, 90°, 180° and customized
Specifications:
| BENDS SPECIFICATION REQUIREMENTS | |
| GENERAL DESCRIPTION | |
| Outside Diameter | 1/2" to 100" |
| Thickness | SCH20, SCH30, SCH40, STD, SCH80, SCH100. SCH120, SCH160. XXS |
| Design Life | 30 Years |
| Pipeline Design Code | ASME B16.49/ MSS-SP75 |
| Service Fluid |
Full Well Stream, Offshore Shallow Water Application, Subject to Potential Late Souring and Eventual Bacteria induced Corrosion. |
| Third Party Inspection |
Required (Upon agreement with COMPANY. Mechanical tests to be witnessed) |
| MOTHER PIPE REQUIREMENTS | |
| Material | Carbon Steel |
|
Grade
|
API 5L - Gr.B/X42/X46/X52/X60/X70 etc.(PSL1 & PSL2) ISO 3183- L245/L290/L320/L360/L415/L485(PSL1) ISO 3183- L245N/L245R/L290Q/L360Q/L415Q/L485Q(PSL2) (Seamless) |
| Specification | API 5L: ISO 3183: 2007 |
| Chemical Composition | API 5L: ISO 3183: 2007, Sour Tests Cab Be Chosed. |
| Charpy Impact Test | Required, per API 5L: ISO 3183: 2007, ASTM A370 |
| Hardness Test | Required, per API 5L |
| Hydro-test | Required, per API 5L |
| Packing: | Standard Export Packaging or As Per Customer's Requirement. |
| BEND REQUIREMENTS | |
| Specification | API 5L: ISO 3183: 2007 |
| Charpy Impact Test | Required, per API 5L: ISO 3183: 2007 MSS SP75 |
| Hardness Test | Required, per API 5L: ISO 3183: 2007 MSS SP75 |
| Dimensional Tolerance | +/-1 degree |

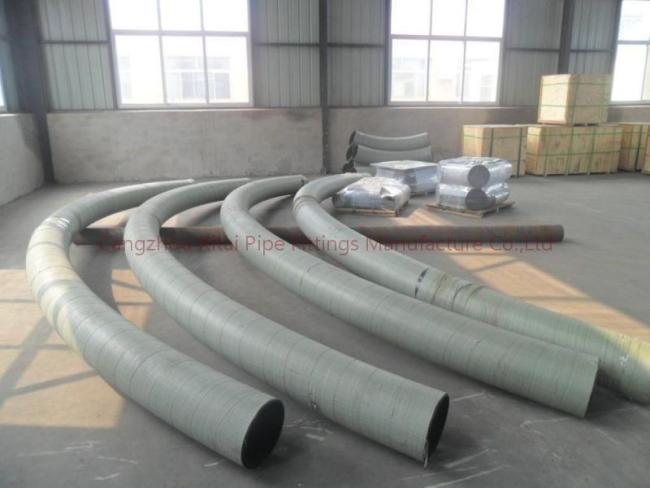

| External Surface Treatment | 3-Layers Polyethylene / Fusion Bonded Epoxy (FBE) |
| Number of Qualification Bends | Per section API 5L: ISO 3183 |
| Marking | Per API 5L: ISO 3183 |
FAQ:
Q1: How to order?
1.To specity standard and the thickness.
2.To specity surface treatment.
3.To specity figure size and quantity.
Q2: After sales service?
Quality are promised.We have a dedicated after-sales department to be responsible for all subsequent work after delivery.
Q3: Can I have a sample order for pipe fittings?
Yes,we welcome sample order to test and check quality.Mixed samples are acceptable.
Q4:Do you offer guarantee for the products?
Yes,we offer almost 20 years warranty to our products.
