Rental 50-200m Measurement Wind Lidar 4hz Sample Frequency -50~50m/S Wind Speed
Wind lidar rental : 50-200m Measurement, 4Hz Sample Frequency, -50~50m/s Wind Speed
| Product introduction
Molas NL nacelle wind lidar system provides measurement and recording of wind field information data in front of wind turbines 50m-200m / 400m / 750m, and is connected to the main control system of wind turbines, so as to realize feedforward control, optimize load and increase power generation. It can also be applied to various automated operation scenarios such as yaw correction, power curve test, wake analysis, and intelligent field group control.
| Application scenarios
With the application and development of Doppler wind Lidar in the field of wind energy, by accurately measuring the inflow wind speed and direction, it is possible to predict the accurate wind conditions on the wind rotor surface, correct system parameters in time,realize feedforward control to reduce unit load and improve the power generation efficiency, reduce manufacturing costs and extend the service life of wind turbine, so as to achieve the ultimate goal of reducing the cost of electricity.
| Product parameters
|
Measure the distance |
50~200m |
|
Number of measured sections |
10 |
|
Sampling frequency |
4Hz |
|
Wind speed measurement range |
-50 ~50m/s |
|
IP(Optical Head) |
IP66 |
|
Wind speed accuracy |
0.1m/s |
|
Accuracy of wind direction |
±0.5° |
|
Measurement layer |
Simultaneously measure and output 10 distance layers |
| Product Features
Reduce fatigue load by 5%-10%
Reduce the ultimate load by 10%-15%
Extend fan life and reduce fan costs

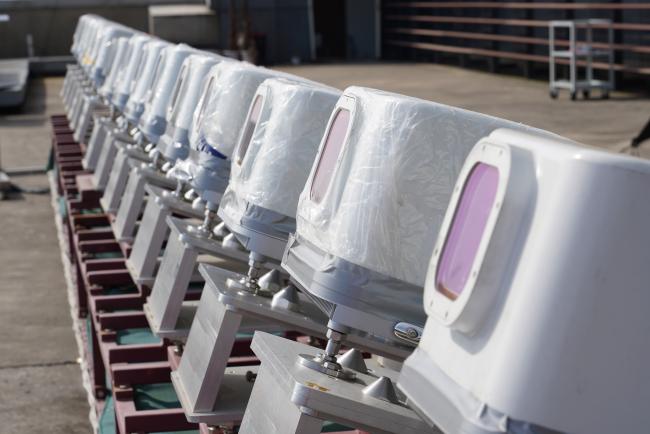

| Product Image
