Ip54 Offshore Lidar Fearless Of Harsh Outdoor Environments
IP54 Fearless of harsh outdoor environments Doppler wind lidar
| Product introduction
When the radar is placed, there should be no obstacles in the conical area with a vertical angle of 28° above the lidar, so as not to affect the wind measurement effect.
| Application scenarios
① Early detection of wind resources
② Offshore construction and operation and maintenance wind power monitoring
③ Prediction of wind power in offshore wind farms
| Product parameters
| Powered by | 24V DC / 100~240V |
| Protection class | IP65 (core module) / IP54 (complete machine) |
| Size | 682mm x 520mm x 641mm |
| Weight | <75kg |
| Range of working temperature | -40℃ ~ 50℃(with over temperature protection) |
| Operating humidity range | 0% to 100% |
| Protection class | IP67 (complete machine) |
| Eye safety | Class 1M (EN60825-1) |
| Measuring distance | 30~300m |
| Measurement layer | 12 |
| Sampling rate | 1Hz |
| Wind speed measurement accuracy | 0.1m/s |
| Wind direction measurement accuracy | 1° |
| Wind speed measurement range | 0~75m/s |
| Wind direction measurement range | 0~360° |
| Sweep cone angle | 28° |
| Product Features
B300 has high measurement accuracy, stable system performance, easy maintenance, safe and reliable data,
At present, it has passed the world authoritative wind power evaluation agency WINDGUARD, China Meteorological
Bureau and CE testing and certification.

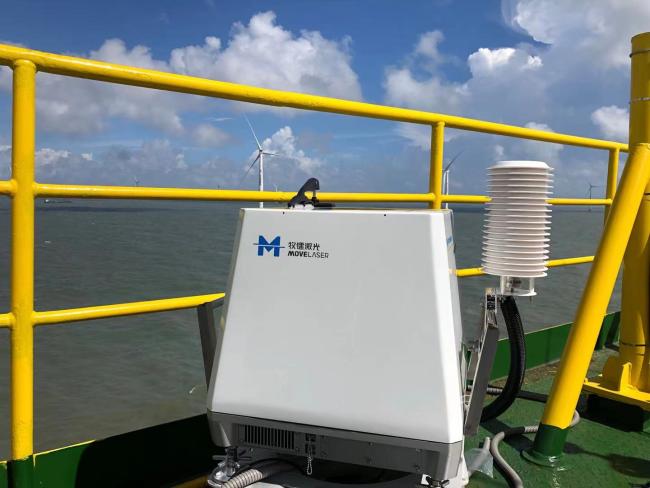

| Product Image
