1000BASE CSFP Dual BIDI 120km TX1490 RX1550 SM LC DOM Transceiver
1000BASE CSFP Dual BIDI 120km TX1490 RX1550 SM Transceiver LC DOM
Description
This GCS-B4512-B4512-C0C CSFP Transceiver is high performance and high stability product operating in standard temperature,provides 1000Base-BX 2-Channel throughput up to 120km over single-mode fiber (SMF) using a nominal wavelength of 1490nmTx/1550nmRx via an LC connector.
For each Channel, The transceiver consists of three sections: a highly reliable 1490nm DFB laser transmitter, a high quality 1550nm PIN photodetector integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with Compact SFP Multi-Source Agreement (MSA) and SFF-8472.
Specifications
| Product Series | Two lanes 1000Base CSFP | Part Number | GCS-B4512-B4512-C0C |
| Package | Compact SFP | Type | Dual BiDi |
| Data Rate (Gbps) | 2x 1.244G | Lane Count | 2x ( Tx/Rx ) |
| Reach | 120km | Interface | LC/UPC duplex |
| TX Wavelength | 2x 1490nm | RX Wavelength | 2x 1550nm |
| Power Voltage | +3.3V (typical) | Power Consumption | ≤ 1.3W |
| TX Type | DFB | RX Type | PIN |
| TX Output Power | -2 ~ 5dBm | RX Sensitivity | < -32dBm |
| Extinction Ratio | > 9dB | Saturation | > 0dBm |
| Power-budget (dB) | 30dB | DDMI | With |
| Temperature | Operating: Commercial 0 to 70°C | Warranty | 3 years |
| Storage: -40°C to 85°C | MTBF | 1,000,000Hours | |
| Protocols | 1000BASE Ethernet, MSA Compliant , SFF-8472 | ||
Features
- 2-Fiber Bi-Directional CSFP Optical Transceiver
- Up to 1.244Gbps Bi-directional Data Links each lane
- Compliant with CSFP MSA 2.0 (Option2)
- IEEE802.3ah 100BASE-BX, 1000BASE-BX, SONET OC-3 / SDH STM-1, Compliant
- Compliant with Digital Diagnostic Monitor Interface SFF-8472
- Duplex LC Connector
- 1490nm DFB laser and 1550nm PIN photodiode
- Up to 120km on 9/125µm SMF
- AC/AC Coupling according to MSA
- Single +3.3 V Power Supply
- RoHS Compliant
- Class 1 Laser International Safety Standard IEC 60825 Compliant
Application
- SONET/SDH Equipment Interconnect
- Fast Ethernet
- Switch to Switch interface
- Point to Point FTTH Application
- Other optical transmission systems

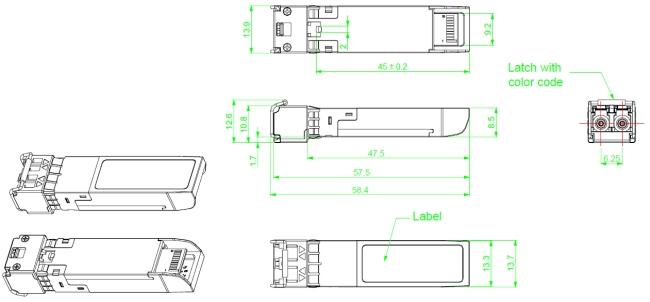

Package Outline
Dimensions are in millimeters. All dimensions are ±0.1mm unless otherwise specified. (Unit: mm)
