850nm Cisco DS-SFP-FC8G-SW Compatible 8GFC Fiber Transceiver 150m MMF
850nm Cisco DS-SFP-FC8G-SW Compatible 8GFC Fiber Transceiver 150m MMF
Description Of Cisco DS-SFP-FC8G-SW Compatible 8GFC Fiber Transceiver
This Cisco DS-SFP-FC8G-SW Compatible 8GFC-SW transceiver is designed for 8Gbps short wave fibre channel connectivity applications, which provides link up to 300m over multi-mode fiber(MMF) via duplex LC receptacle.
This 8GFC-SW transceiver uses top quality 850nm VSCEL Laser transmitter and PIN Photodiode receiver. It is fully compliant with FC-PI-4 Rev. 8.00 and SFF-8472 Rev 11.0 and compatible with SFF-8432 and applicable portions of SFF-8431 Rev. 4.1.
This 8GFC-SW optical transceiver is factory pre-programmed with all the necessary configuration data for seamless network integration and performs identically to genuine Cisco DS-SFP-FC8G-SW transceivers, with excellent interoperation on Cisco SFP+ port data center switches, for example, Cisco MDS 9000 Series Multilayer Switches.
Specification Of Cisco DS-SFP-FC8G-SW Compatible 8GFC Fiber Transceiver
| Compatible Brand | Cisco | Compatible P/N | DS-SFP-FC8G-SW |
| Packaging | SFP+ | Bandwidth (Gbps) | 8.5Gbps |
| Wavelength | 850nm | Cable Reach | 300m |
| Optical Connector | Duplex LC | Cable Type | Multimode Fiber |
| LD Type | VCSEL Laser | PD Type | PIN Photodiode |
| TX Average Power | -6~-1dBm | RX Sensitivity | <-11.1dBm |
| Extinction Ratio | >3.5dB | Saturation Input Power | >0.5dBm |
| Operating Temp. | 0 to 70°C (32 to 158°F) | DDM/DOM | Supported |
| Compliance | IEC/EN 61000-4-2,IEC-60825, FDA 21CFR 1040.10 and 1040.11, RoHS | ||
Features Of Cisco DS-SFP-FC8G-SW Compatible 8GFC Fiber Transceiver
- Hot Pluggable 8GFC-SW fiber channel transceiver module
- Functionally equivalent to the original Cisco DS-SFP-FC8G-SW
- Optical interface compliant to IEEE 802.3ae
- Electrical interface compliant to SFF-8431
- Up to 8.5 Gbps data links
- 850nm VCSEL transmitter, PIN photo-detector
- Maximum link length of 300m on 2000MHz/km MMF
- Operating case temperature: 0 to 70 °C
- Low power consumption
- All-metal housing for superior EMI performance
- Advanced firmware allow customer system encryption information to be stored in transceiver
- Cost effective SFP+ solution enables higher port densities and greater bandwidth
- RoHS6 compliant (lead-free)
Application Of Cisco DS-SFP-FC8G-SW Compatible 8GFC Fiber Transceiver
- 2.125 / 4.25/8.5Gbp/s Fiber Channel
- Other optical links

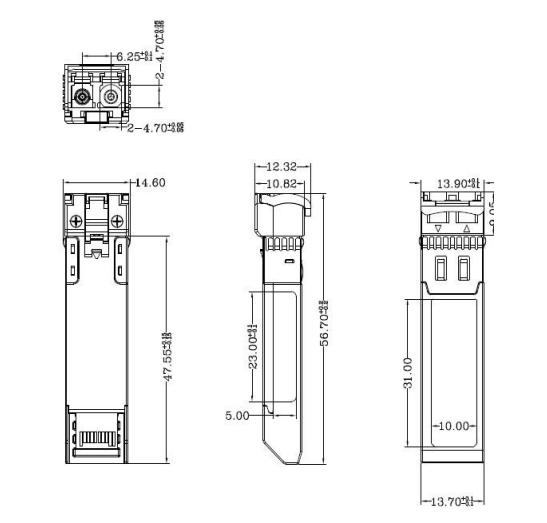

Mechanical Dimensions Of Cisco DS-SFP-FC8G-SW Compatible 8GFC Fiber Transceiver
