850nm Compatible 10G SFP+ LC SR 300m MMF XCVR HPE Aruba Transceiver J9150D
850nm HPE Aruba Compatible 10G SFP+ LC SR 300m MMF XCVR Transceiver J9150D
Description Of HPE Aruba J9150D Compatible Transceiver
This HPE Aruba J9150D compatible transceiver is fully compliant with SFF-8431, SFF-8432, IEEE 802.3-2012 10GBASE-SR/SW and 10G Fibre Channel.It is with the SFP+ 20-pin connector to allow hot plug capability. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.
It is programmed in the factory and suitable for use with equivalent Aruba 10G core switches and routers.
Specification Of HPE Aruba J9150D Compatible Transceiver
| Compatible Brand | HP Aruba | Compatible P/N | J9150D |
| Wavelength (nm) | 850 | Link Distance | 300m over OM3 |
| Connector | Duplex LC | Cable Type | Multimode Fiber |
| LD Component | VCSEL | PD Component | PIN Photodiode |
| TX Output Power | -6~-1dBm | Sensitivity | < -10dBm |
| Extinction Ratio | >3.5dB | Saturation | >0.5dBm |
| Diagnostic (DDM/DOM) | Support | Temperature Range | -5 to 70°C /-40°C~85°C |
| Protocols | IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI | ||
Features Of HPE Aruba J9150D Compatible Transceiver
- Hot-pluggable SFP+ footprint HPE Aruba Compatible 10G SFP+ LC SR 300m MMF XCVR Transceiver
- Functionally identical to original J9150D
- 10Gb/s serial optical interface compliant to 802.3ae 10GBASE-SR
- Maximum link length of 400m on OM4 MMF/300m on OM3
- 850nm VCSEL transmitter, PIN photo-detector
- Power dissipation < 0.6W
- Single 3.3V power supply
- Duplex LC receptacle
- Built-in digital diagnostic functions
- Operating temperature range:Commercial: -5°C~70°C/Industrial: -40°C~85°C
- RoHS compliant and lead-free
Application Of HPE Aruba J9150D Compatible Transceiver
- 10GBASE-SR
- 10GBASE-SW
- Fiber Channel
- Other Optical links
Standard Of HPE Aruba J9150D Compatible Transceiver
- Compliant with SFP+ MSA
- Compliant with SFF-8472
- Compliant with IEEE802.3ae
- 10GFC

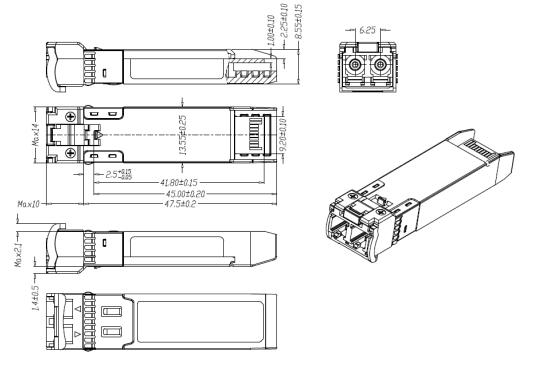

Package Outline Of HPE Aruba J9150D Compatible Transceiver
Dimensions are in millimeters. All dimensions are ±0.1mm unless otherwise specified. (Unit: mm)
FAQ
Q: Why choose us ?
GigaOpto is the leading global supplier of optical transceivers and we have around 10 years experience in this field.Our advantage.
- Competitive prices.
- High quality products and services.
- wide compatibility such as Cisco, Juniper, HP , Huawei, Alcatel, H3C and more.
- Big capability of manufacture for 40K~100K pcs per month.
- Independent R&D ability.
- Keep stock,Fast delivery
Q: What is operating temperature range of HPE Aruba J9150D compatible transceiver?
Commercial temperature range (COM): 0 to 70°C(32 to 158°F)
Extended temperature range (EXT): -20 to 85°C(23 to 185°F)
Industrial temperature range (IND): 40 to 85°C(-40 to 185°F)
Storage temperature range: -40 to +85°C(-40 to 185°F)
Q: What is standard warranty time for your HPE Aruba J9150D Compatible Transceiver ?
All products purchased from GigaOpto shall be free from defects in material and workmanship for a period of time from the date of purchasing,
This limited warranty is applicable solely to the original purchaser and is not transferable.
This warranty is expressly conditioned upon proper storage, installation, connection, operation and maintenance of products in accordance with their written specifications.
Three-Year (3-yr) Warranty Examination, repair and replacement parts are provided free.
