1310nm 10GBASE-LR SMF 10k LC DOM For HPE BladeSystem 455886-B21
HPE BladeSystem c-Class 455886-B21 Compatible SFP+ 10G-LR SM 10km Fiber Transceiver
Description Of HPE BladeSystem c-Class 455886-B21 Compatible Optical Transceiver
This HPE BladeSystem c-Class 455886-B21 compatible optical transceiver is designed for 10 Gigabit connectivity and max links up to 10km over dual strand single mode fiber (SMF).
This 10GBASE-LR optical transceiver is factory pre-programmed with all the necessary configuration data for seamless network integration and perform identically to high-cost original HPE BladeSystem 455886-B21 transceiver, with excellent interoperation on HPE network equipment.
This HPE BladeSystem c-Class 455886-B21 compatible transceiver is fully compliant with SFF-8431, SFF-8432, IEEE 802.3ae standards. It is with the SFP+ 20-pin connector to allow hot plug capability. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.
Specification Of HPE BladeSystem c-Class 455886-B21 Compatible Optical Transceiver
| Compatible Brand | HPE BladeSystem | P/N | 455886-B21 |
| Form Factor | SFP+ | Data Rate | 10G |
| Wavelength | 1310nm | Link | 10km @ 9/125μm SMF |
| Interface | Dual-LC | Media | single-mode fiber |
| Transmitter Part | DFB Laser | Receiver Part | PIN |
| TX Power (dBm) | -8.2~-0.5dBm | RX Sensitivity | <-14.4dBm |
| Optical budget | 6.2dB | Extinction Ratio | >3.5dB |
| Power Dissipation | ≤1.0W | RX Overload | >0.5dBm |
| Digital Diagnostic | With | Temperature Range | Standard 0~70°C/Industrial -40~85°C |
| OEM/ODM | Supported | Unit Weight | 25gram |
| Protocols | IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI | ||
Features Of HPE BladeSystem c-Class 455886-B21 Compatible Optical Transceiver
- Functionally identical to HPE BladeSystem c-Class 455886-B21
- Hot-pluggable SFP+ footprint
- Electrical interface compliant to SFF-8431
- 10Gb/s serial optical interface compliant to 802.3ae 10GBASE-LR
- Power dissipation < 1W
- Single 3.3V power supply
- Maximum link length of 10km on SMF
- Uncooled 1310nm DFB laser,PIN photo-detector
- Duplex LC connector
- Built-in digital diagnostic functions
- Metal enclosure, for lower EMI
- Operating temperature range:Commercial: -5°C~70°C;Industrial: -40°C~85°C
- RoHS compliant and lead-free
Application Of HPE BladeSystem c-Class 455886-B21 Compatible Optical Transceiver
- 10GBASE-LR/10GBASE-LW Ethernet
- 10G Fiber Channel
- 10GbE Data Center Switches and Routers

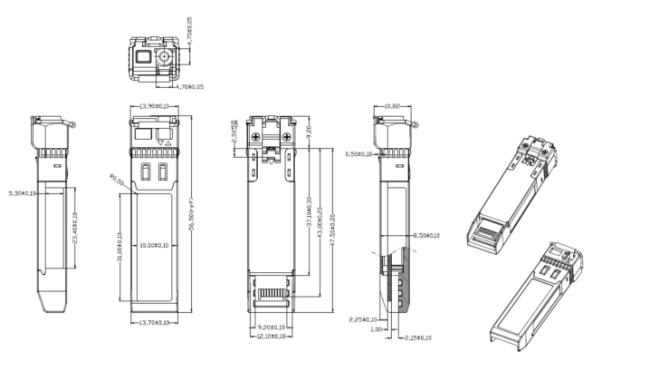

Mechanical Dimensions Of HPE BladeSystem c-Class 455886-B21 Compatible Optical Transceiver
Dimensions are in millimeters. All dimensions are ±0.1mm unless otherwise specified. (Unit: mm)
