Description Of HPE JG234A Compatible SFP Transceiver
This HPE JG234A compatible SFP transceiver is manufactured with high-quality components and tested strictly to meet or exceed original HPE X130 10GBASE-ER transceiver (JG234A) for 10 Gigabit connectivity and max link up to 40km over G.652 dual fiber single-mode fiber (SMF) optical cable using a wavelength of 1550nm via an LC connector.
This HPE JG234A compatible SFP transceiver is fully compliant with SFF-8431, SFF-8432, IEEE 802.3ae standards. It is with the SFP+ 20-pin connector to allow hot plug capability. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472,which provides real-time monitoring of the transceiver temperature, laser bias current, optical power, received optical power and transceiver supply voltage.
Specification Of HPE JG234A Compatible SFP Transceiver
| Compatible Brand | HPE | P/N | JG234A |
| Packaging Type | SFP+ | Bit Rate | 10Gb/s |
| Wavelength | 1550nm | Max Reach | 40km (24.9 miles) |
| Connector Type | Duplex-LC | Cable Type | Single mode fiber |
| Optical Component | EML Laser | Electrical Component | PIN photo-detector |
| TX Output Power | -1~3dBm | RX Sensitivity | < -16dBm |
| Power Budget | 15dB | Extinction Ratio | >8.2dB |
| Power Consumption | ≤1.5W | RX Overload | >0.5dBm |
| DOM/DDM | Supported | Temperature Range | 0 to 70°C (32 to 158°F) |
Notice: When the long reach transceiver is used in short distance transmission, please matched with appropriate attenuator according to the table.
| Distance | ≤ 5km | ≤ 10km | ≤ 20km |
| Attenuator | 7dB | 5dB | 3dB |
Features Of HPE JG234A Compatible SFP Transceiver
- Functionally identical to HPE X130 10GBASE-ER transceiver (JG234A)
- Hot-pluggable SFP+ footprint 10GBASE ER SFP+ Transceiver Module
- 15dB optical link budget for up to 40km over G.652 single mode fiber
- Max data rate: 10Gb/s
- Uncooled 1550nm EML laser, PIN photo-detector
- Power dissipation <1.5W
- Single 3.3V power supply
- Duplex LC connector
- Built-in digital diagnostic functions
- Standard 0°C to 75°C temperature range
- RoHS compliant and lead-free

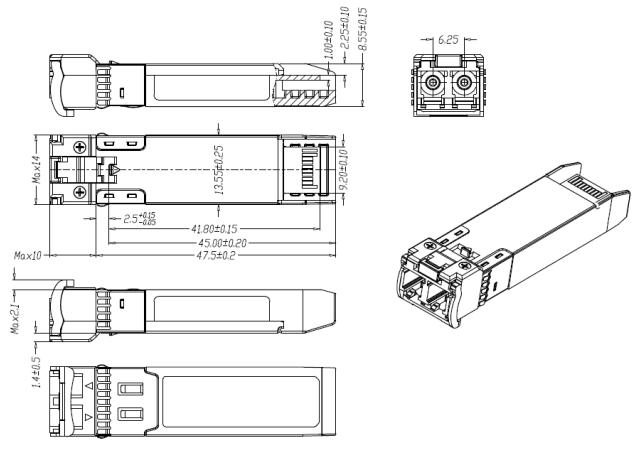

Package Outline Of HPE JG234A Compatible SFP Transceiver
Dimensions are in millimeters. All dimensions are ±0.1mm unless otherwise specified. (Unit: mm)
FAQ
Q: Why choose us ?
GigaOpto is the leading global supplier of optical transceivers and we have around 10 years experience in this field.Our advantage.
- Competitive prices.
- High quality products and services.
- Wide compatibility such as Cisco, Juniper, HP , Huawei, Alcatel, H3C and more.
- Big capability of manufacture for 40K~100K pcs per month.
- Independent R&D ability.
- Keep stock,Fast delivery
Q: What is operating temperature range of this HPE JG234A compatible SFP transceiver ?
Commercial temperature range (COM): 0 to 70°C(32 to 158°F)
Extended temperature range (EXT): -20 to 85°C(23 to 185°F)
Industrial temperature range (IND): 40 to 85°C(-40 to 185°F)
Storage temperature range: -40 to +85°C(-40 to 185°F)
Q: What is standard warranty time for This HPE JG234A compatible SFP transceiver ?
All products purchased from GigaOpto shall be free from defects in material and workmanship for a period of time from the date of purchasing,
This limited warranty is applicable solely to the original purchaser and is not transferable.
This warranty is expressly conditioned upon proper storage, installation, connection, operation and maintenance of products in accordance with their written specifications.
Three-Year (3-yr) Warranty Examination, repair and replacement parts are provided free.
