TX1270nm / RX1330nm HP Aruba J9151A-BX-U Compatible WDM Transceiver 10km LC
TX1270nm/RX1330nm HP Aruba J9151A-BX-U Compatible WDM Transceiver 10km LC
Description Of HP Aruba J9151A-BX-U Compatible WDM transceiver
This HP Aruba J9151A-BX-U compatible WDM transceiver is small form factor pluggable module for duplex optical data communications such as 10GBASE-LR/LW defined by IEEE 802.3ae. It is with the SFP+ 20-pin connector to allow hot plug capability.
This module is programmed to works with a wide range of HP equipment such as 10 Gigabit Ethernet (10 GbE) Switches, Routers, Network Interface Cards (NICs) and Media Converters, which makes it be an ideal replacement to high-cost HP Aruba WDM transceiver.
Specification Of HP Aruba J9151A-BX-U Compatible WDM Transceiver
| Compatible Brand | HP Aruba | P/N(Part No.) | J9151A-BX-U |
| Wavelength | TX1270nm/RX1330nm | Distance | 10km on SMF |
| Connector | LC simplex | Cable Type | single-mode fiber |
| Transmitter | WDM DFB Laser | Receiver | PIN photo-detector |
| TX Power (dBm) | -5~0 | Receiver Sensitivity (dBm) | < -14.4 |
| Power Budget (dB) | 9.4 | Input Saturation (dBm) | >0.5 |
| Power Consumption | ≤1W | Extinction Ratio | >3.5dB |
| Digital Diagnostic | Supported | Temperature Range | 0 to 70°C (32 to 158°F) |
| Unit Weight | 25 gram | OEM/ODM | Supported |
Features Of HP Aruba J9151A-BX-U Compatible WDM Transceiver
- Functionally identical to original HP Aruba J9151A-BX-U
- Hot-pluggable SFP+ WDM transceiver
- Compliant with IEEE 802.3ae 10GBASE-LR and 10GBASE-LW ¨
- SFP+ MSA SFF-8431 Compliant
- Operating data rate up to 11.3Gbps
- 1270nm DFB transmitter, 1330nm PIN photo-detector
- Transmission up to 10km on 9/125um SMF
- LC Simplex receptacle Bi-Directional SFP+ Optical Transceiver
- Built-in digital diagnostic functions
- Single 3.3V power supply
- Metal enclosure, for lower EMI
- Operating case temperature:Commercial: 0 ~70°C
- ROHS compliant and lead-free
Application Of HP Aruba J9151A-BX-U Compatible WDM Transceiver
- 10GBASE-LR/LW
- 10G Fiber Channel
- 10G SONET/SDH, OTU2/2e
- 10GBASE-BX
Standard Of HP Aruba J9151A-BX-U Compatible WDM Transceiver
- Compliant with MSA SFP+ specification(SFF-8431)
- Compliant with SFF-8472
- CPRI Line Rate Option: 9830.4Mbps
- Compliant to IEEE 802.3ae

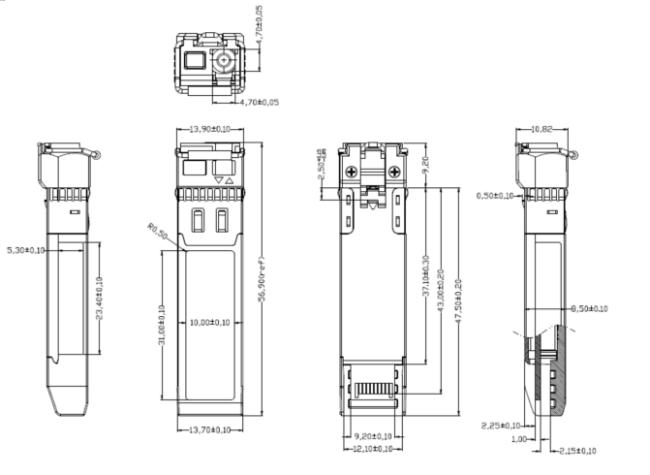

Mechanical Dimensions Of HP Aruba J9151A-BX-U Compatible WDM Transceiver
Dimensions are in millimeters. All dimensions are ±0.1mm unless otherwise specified. (Unit: mm)
FAQ
Q: Are you factory or trading company ?
Shenzhen GigaOpto Technology Co., Ltd is a specialized manufacturer of optical transceivers from 155Mbps to 100Gbps, covering PON, SFP, SFP+, SFP28, QSFP+, QSFP28, CFP/CFP2/CFP4, FC, Video SFP, 1x9,XFP, x2, Xenpak, SFF optical transceiver series, as well as Active Optical Cable, Direct Attach Cable, OSA and so on. etc.
Q: Can I have a sample order? What is your MOQ of this HP Aruba J9151A-BX-U compatible WDM transceiver?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable,We do not have MOQ,1 sample is available.
Q: Are your transceivers compatible ?
Yes,our compatible optical module all test for compatibility on a variety of different brands of network equipment such as Cisco, Juniper, HP , Huawei, Alcatel-Lucent, H3C and more.
Q: How can you guarantee the quality for this HP Aruba J9151A-BX-U compatible WDM transceiver?
GigaOpto has rich experience in providing trusted quality service to customers, with perfect quality management system, all of our products were 100% tested before the shipment.
Q: What is operating temperature range of the HP Aruba J9151A-BX-U compatible WDM transceiver?
Commercial temperature range(Com.) : 0 to 70℃
Extended temperature range(Ext.):-20 to 85℃
Industrial temperature range(Ind.):-40 to 85℃
Q: Can you accept OEM/ODM order for this HP Aruba J9151A-BX-U compatible WDM transceiver ?
Yes, please send inquiry to us so that we can have a detailed discussion.
Q: What is the lead time of this HP Aruba J9151A-BX-U compatible WDM transceiver?
For usual products,We keep stock,could ship about 3 days after received payment.For big quantity and special products,Please check lead time with our sales representative.
Q: What is your after-sales service of this HP Aruba J9151A-BX-U compatible WDM transceiver?
All our customers can get three years quality warranty, and lifetime technical support.
