SFP+ 10G ELR Single Mode Fiber SMF 20km Optical Transceiver Module 1310nm LC DDM
SFP+ 10G eLR 20km SMF Transceiver Module LC DOM
Description
The 10G eLR transceiver module is designed for use in 10 Gigabit Ethernet links up to 20km over dual strand single mode fiber (SMF) with an LC duplex connector. They are compliant with SFF-8431, SFF-8432 and IEEE 802.3ae.
The 10G eLR SFP+ transceiver consists of two sections: the transmitter section uses a 1310nm multiple quantum well DFB laser and is a class 1 laser compliant according to International Safety Standard IEC-60825, the receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.
Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472.
Featuring low power consumption and high speed, this 10G SFP+ transceiver is ideal for 10 Gigabit Ethernet (10GbE) Switches,Routers,Network Interface Cards (NICs) and Media Converters,etc.
Each transceiver is 100% optically inspected and tested before shipping.
Specification
| Packaging | SFP Plus | Data Rate | 10G |
| Center Wavelength | 1310nm | Max Reach | 20km |
| Connector Type | Dual-LC | Fiber Type | SMF |
| LD Type | DFB Laser | Receiver Type | PIN |
| TX Power | -6 ~ +1dBm | RX Sensitivity | <-14.4dBm |
| Power-budget | 8.4dB | Extinction Ratio | >3.5dB |
| Power Consumption | ≤1.0W | RX Overload | >0.5dBm |
| DOM Support | Supported | Temperature Range | Com. |
| OEM/ODM | Supported | Warranty | 36 months |
| Protocols | IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI | ||
Features
- Up to 11.3Gbps data rate
- 1310nm DFB Laser and PIN photo detector
- Duplex LC receptacle optical interface compliant
- Single +3.3V power supply
- Distance up to 20km transmission on SMF
- DDMI function available with internally calibrated mode
- Hot-pluggable SFP+ footprint
- Receiver loss of signal output
- Transmitter disable input
- International Class1 laser safety certified
- Operating temperature range: Commercial: -5°C~70°C / Industrial: -40°C~85°C
- RoHS compliant and lead-free
Application
- 10GBASE-LR/10GBASE-LW Ethernet
- 10G Fiber Channel
- 10GE Data Center Switches and Routers
- 10GE Network interface cards and Fiber Media Converters
Standards
- Compliant with SFP+ MSA
- Compliant with SFF-8472
- Compliant with IEEE802.3ae
- 10GFC
Electrical and Optical Characteristics
| Electrical Characteristics | ||||||
| Parameter | Symbol | Min | Typical | Max | Unit | Notes |
| Total Supply Current | ICC | 300 | mA | |||
| Transmitter | ||||||
| Transmitter Differential Input Voltage | 180 | 1200 | mV | |||
| Tx_Fault Output Voltage - High | VOH | 2.4 | Vcc | V | LVTTL | |
| Tx_Fault Output Voltage - Low | VOL | 0 | 0.4 | V | LVTTL | |
| Tx_Disable Input Voltage - High | VIH | 2 | Vcc | V | LVTTL | |
| Tx_Disable Input Voltage - Low | VIL | 0 | 0.8 | V | LVTTL | |
| Input Differential Impedance | 90 | 100 | 110 | Ω | ||
| Receiver | ||||||
| Receiver Differential Output Voltage | 300 | 850 | mV | |||
| Electrical Characteristics | ||||||
| Parameter | Symbol | Min | Typical | Max | Unit | Notes |
| LOS Output Voltage - High | VOH | 2.4 | Vcc | V | LVTTL | |
| LOS Output Voltage - Low | VOL | 0 | 0.4 | V | LVTTL | |
| Output Differential Impedance | 90 | 100 | 110 | Ω | ||
| Optical Transmitter Characteristics | ||||||
| Parameter | Symbol | Min | Typical | Max | Unit | Notes |
| Average Output Power | POUT | -6 | +1 | dBm | ||
| Center Wavelength | λc | 1290 | 1310 | 1330 | nm | |
| Spectral Width(-20dB) | ∆λ | 1 | nm | |||
| Side Mode Suppression Ratio | SMSR | 30 | dB | |||
| Extinction Ratio | ER | 3.5 | dB | |||
| Relative Intensity Noise | RIN | -128 | dB/Hz | |||
| Optical Rise/Fall Time | TR/TF | 28 | 50 | ps | ||
| Transmitter and Dispersion Penalty | TDP | 3.2 | dB | |||
| Transmitter OFF Power | POFF | -45 | dBm | |||
| Output Eye Diagram | Complies with IEEE802.3ae | |||||
| Optical Receiver Characteristics | ||||||
| Parameter | Symbol | Min | Typical | Max | Unit | Notes |
| Center Wavelength | λc | 1260 | 1610 | nm | ||
| Receiver Sensitivity | PSEN | -14.4 | dBm | 1 | ||
| Input Saturation Power (Overload) | PSAT | 0.5 | dBm | |||
| Receiver Reflectance | -12 | dB | ||||
| LOS De-assert Level | LOSD | -17 | dBm | |||
| LOS Assert Level | LOSA | -30 | dBm | |||
| LOS hysteresis | HYS | 0.5 | 6 | dB | ||
Note 1. Measured with PRBS231-1 pattern, @10.3125Gbps, ER=4dB, BER=1x10-12.

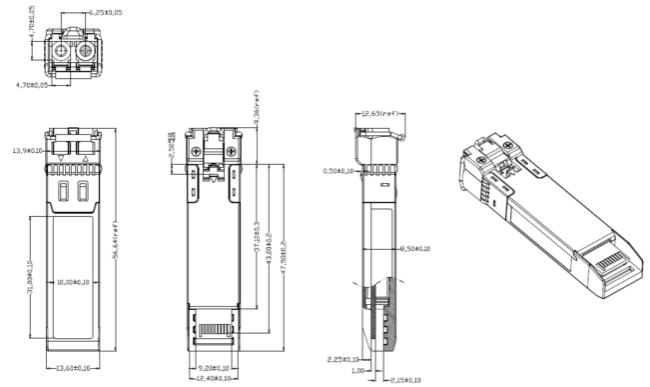

Package Outline
Dimensions are in millimeters. All dimensions are ±0.1mm unless otherwise specified. (Unit: mm)
