Description

The GIGAOPTO's GTS-L1512-F0DC transceiver is a small form factor pluggable module that provides 1000BASE-ZX throghput up to 160km over single-mode fiber using a wavelength of 1550nm via an LC connector. Digital optical monitoring (DOM) is built in to allow access to real-time operating parameters. The transceiver consists of five sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the DFB laser and the APD photo-detector .The module data link up to 160km in 9/125um single mode fiber. The 1G SFP module is designed to be compliant with SFF-8472 SFP Multi-Source Agreement (MSA).

Specification

Notice: When the long reach transceiver is used in short distance transmission, please matched with appropriate attenuator

according to the table.

Features

• Up to 1.25Gbps bit rate
• 1550nm DFB laser transmitter and APD photo-detector
• 160km with 9/125µm SMF
• Duplex LC/UPC type pluggable optical interface
• Hot-pluggable SFP footprint
• Single 3.3V power supply and LVTTL logic interface
• Low power dissipation
• Metal enclosure, for lower EMI
• Support Digital Diagnostic Monitoring interface
• International Class 1 laser safety certified
• Case operating temperature:

C-Temp: 0°C~70°C

I-Temp: -40°C~85°C

• RoHS Compliant
• Compliant with SFF-8472

Application

• Gigabit Ethernet Switches and Routers
• Fiber Channel Switch Infrastructure
• Switched Backplane Applications
• Router/Server Interface

Compatibility

Gigaopto's optical transceivers are 100% compatible with many famous switch brands and will not cause damage to OEM devices. In order to ensure the quality and compatibility of our products, each product is carefully tested on the corresponding equipment before delivery to customers.
For this (1000BASE-ZX SFP 1550nm 160km) compatibility, please refer to the P/N correspondence table. If the brand and part number you are looking for is not listed below, please let us know and we will be delighted to provide you with more details.

Ordering Information

Pin Definition

Typical Application Circuit

Package Outline

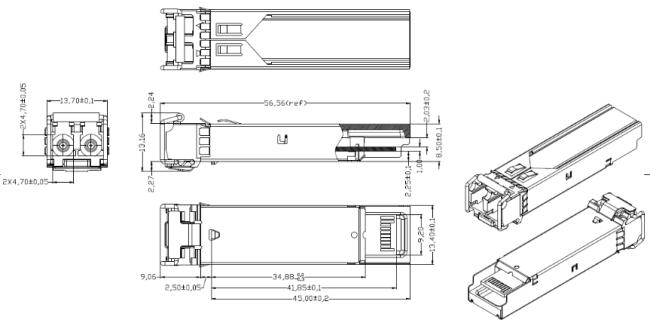

Dimensions are in millimeters. All dimensions are ±0.1mm unless otherwise specified. (Unit: mm)
